Siemens HMI Interface
Siemens HMI interfaces give operators a way to view machine status, enter settings, and interact with an automation system. Panel size, display features, and compatibility with the controller all matter when choosing a model. Browse the Siemens HMI options below and explore our wider Siemens automation range.
Compare Selected Siemens HMI Models
Compare the panel family, display size, operation and communication interface before opening an individual model. Confirm software, controller and installation requirements in the model documentation.
| Model | Panel | Display | Operation | Interface |
|---|---|---|---|---|
| 6AV2123-2DB03-0AX0 | KTP400 Basic | 4.3-inch | Key / touch | PROFINET |
| 6AV2123-2GB03-0AX0 | KTP700 Basic | 7-inch | Key / touch | PROFINET |
| 6AV2123-2GA03-0AX0 | KTP700 Basic DP | 7-inch | Key / touch | PROFIBUS |

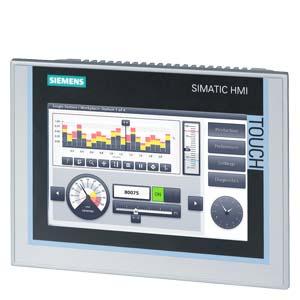

| 6AV2124-0GC01-0AX0 | TP700 Comfort | 7-inch | Touch | PROFINET; MPI/PROFIBUS DP |
| 6AG1123-2GB03-2AX0 | SIPLUS KTP700 Basic | 7-inch | Key / touch | PROFINET |
These models are comparison options, not confirmed interchangeable replacements. Vendors confirm pricing, availability and delivery.
Browse Siemens HMI by Family
SIMATIC HMI Basic Panels
Compare Basic Panel models by display size, key/touch operation and communication interface. Check the exact part number: PROFINET and PROFIBUS variants have different interfaces.
- 6AV2123-2DB03-0AX0 KTP400 Basic — PROFINET, key/touch operation

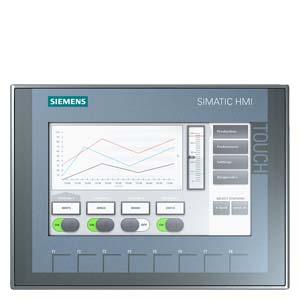

- 6AV2123-2GA03-0AX0 KTP700 Basic DP — PROFIBUS, key/touch operation

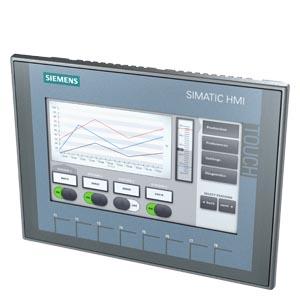

- 6AV2123-2GB03-0AX0 KTP700 Basic — PROFINET, key/touch operation

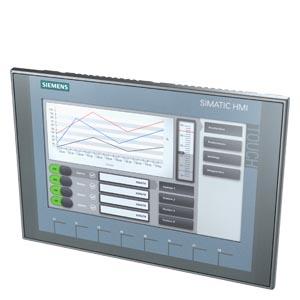

- 6AV2123-2JB03-0AX0 KTP900 Basic — PROFINET, key/touch operation
- 6AV2123-2MA03-0AX0 KTP1200 Basic DP — PROFIBUS, key/touch operation
- 6AV2123-2MB03-0AX0 KTP1200 Basic — PROFINET, key/touch operation
SIMATIC HMI Comfort Panels
Compare TP touch panels and KP key-operated panels. Review the exact model datasheet for display size, interfaces, engineering software requirements and installation conditions.
- 6AV2124-0GC01-0AX0 TP700 Comfort — touch operation

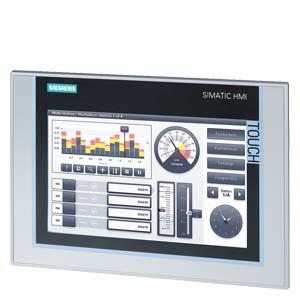

- 6AV2124-0JC01-0AX0 TP900 Comfort — touch operation

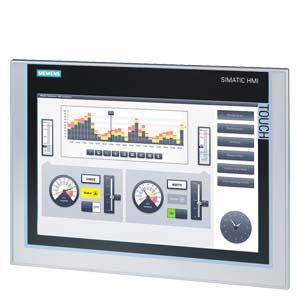

- 6AV2124-0MC01-0AX0 TP1200 Comfort — touch operation
- 6AV2124-0QC02-0AX2 TP1500 Comfort V2.1 — touch operation
- 6AV2124-0UC02-0AX1 TP1900 Comfort — touch operation

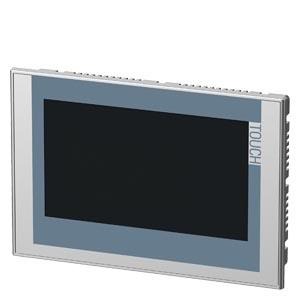

- 6AV2124-0XC02-0AX1 TP2200 Comfort — touch operation
- 6AV2124-1GC01-0AX0 KP700 Comfort — key operation

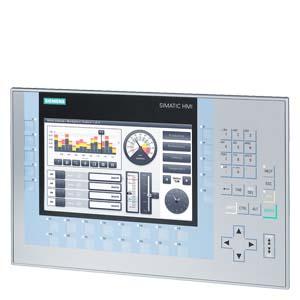

- 6AV2124-1JC01-0AX0 KP900 Comfort — key operation

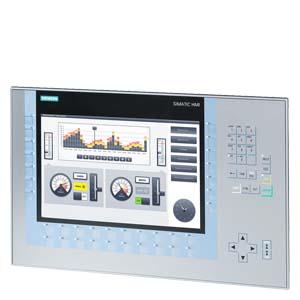

- 6AV2124-1MC01-0AX0 KP1200 Comfort — key operation

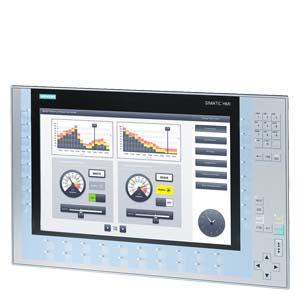

- 6AV2124-1QC02-0AX1 KP1500 Comfort V2 — key operation
- 6AV2124-1QC02-0AX2 KP1500 Comfort V2.1 — key operation
SIPLUS HMI Panels
Compare SIPLUS Basic, Comfort and Unified Comfort panels. Check the exact model datasheet for conformal coating, operating temperature and installation conditions.
SIPLUS Basic Panels

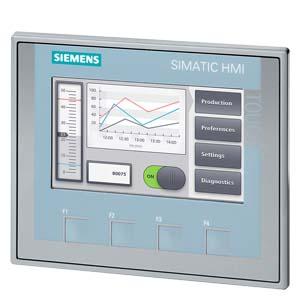

- 6AG1123-2DB03-2AX0 SIPLUS KTP400 Basic — PROFINET
- 6AG1123-2GA03-2AX0 SIPLUS KTP700 Basic DP — PROFIBUS

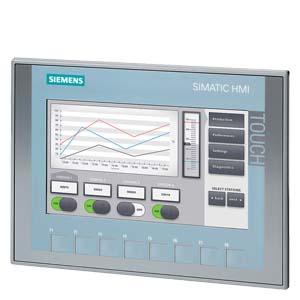

- 6AG1123-2GB03-2AX0 SIPLUS KTP700 Basic — PROFINET

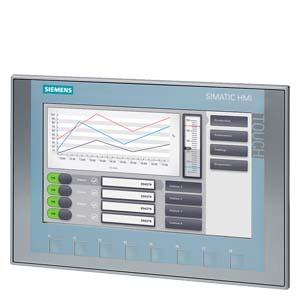

- 6AG1123-2JB03-2AX0 SIPLUS KTP900 Basic — PROFINET

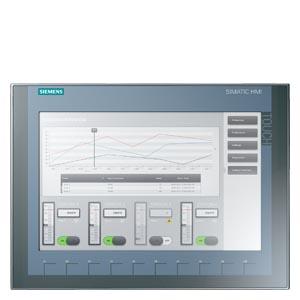

- 6AG1123-2MA03-2AX0 SIPLUS KTP1200 Basic DP — PROFIBUS

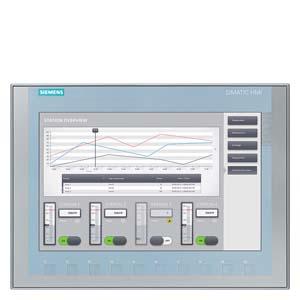

- 6AG1123-2MB03-2AX0 SIPLUS KTP1200 Basic — PROFINET

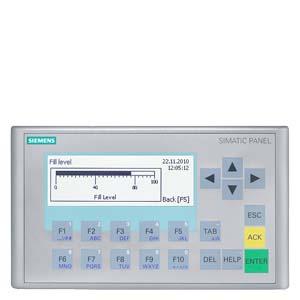

- 6AG1647-0AH11-2AX1 SIPLUS KP300 Basic mono PN — key operation
SIPLUS Comfort Panels

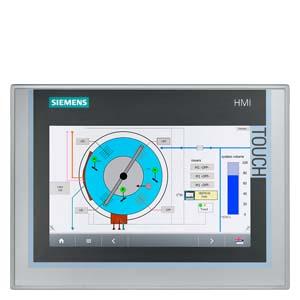

- 6AG1124-0GC01-4AX0 SIPLUS TP700 Comfort — touch operation
- 6AG1124-0JC01-4AX0 SIPLUS TP900 Comfort — touch operation

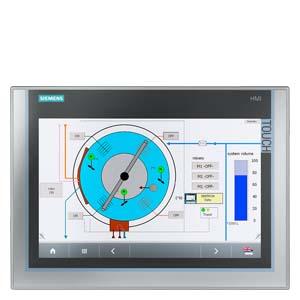

- 6AG1124-0MC01-4AX0 SIPLUS TP1200 Comfort — touch operation

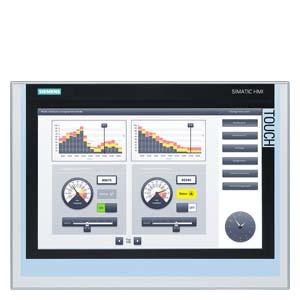

- 6AG1124-0QC02-4AX1 SIPLUS TP1500 Comfort — touch operation
- 6AG1124-0UC02-4AX1 SIPLUS TP1900 Comfort — touch operation

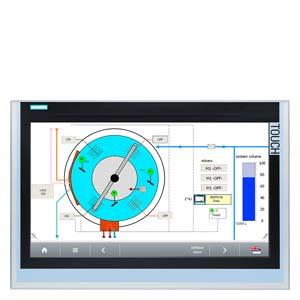

- 6AG1124-0XC02-4AX1 SIPLUS TP2200 Comfort — touch operation

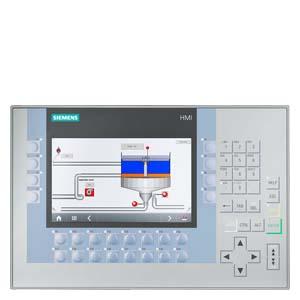

- 6AG1124-1GC01-4AX0 SIPLUS KP700 Comfort — key operation
- 6AG1124-1JC01-4AX0 SIPLUS KP900 Comfort — key operation

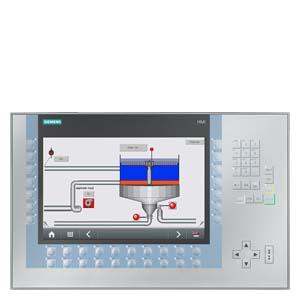

- 6AG1124-1MC01-4AX0 SIPLUS KP1200 Comfort — key operation

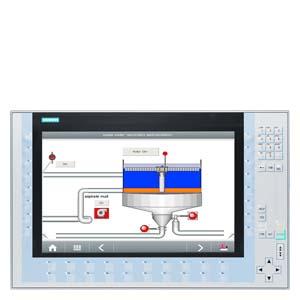

- 6AG1124-1QC02-4AX1 SIPLUS KP1500 Comfort — key operation
SIPLUS Unified Comfort Panels

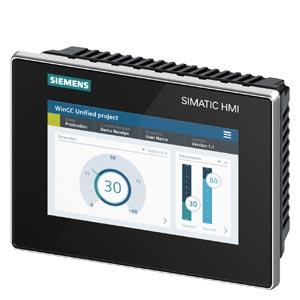

- 6AG1128-3GB06-4AX1 SIPLUS MTP700 Unified Comfort — multi-touch operation

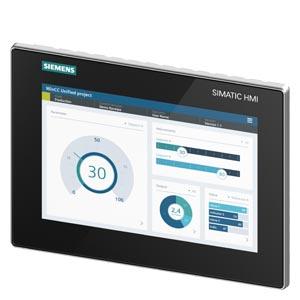

- 6AG1128-3KB06-4AX1 SIPLUS MTP1000 Unified Comfort — multi-touch operation

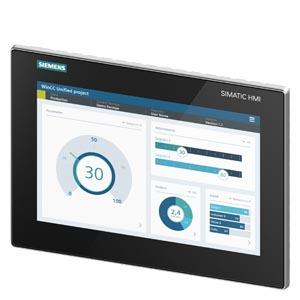

- 6AG1128-3MB06-4AX1 SIPLUS MTP1200 Unified Comfort — multi-touch operation
SIMATIC HMI Basic Keyless Panels
Basic Keyless models use touch operation without function keys and have a neutral design. Verify the exact device designation and engineering requirements before selecting an OEM variant.

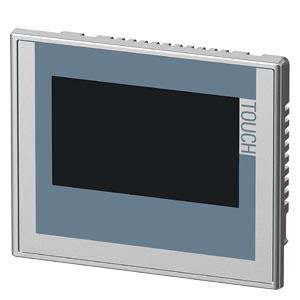

- 6AV2143-6DB00-0AA0 TP400 Basic OEM / Keyless — PROFINET, neutral design

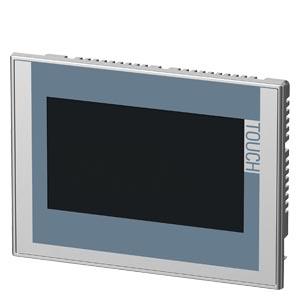

- 6AV2143-6GB00-0AA0 TP700 Basic Keyless — PROFINET, neutral design
- 6AV2143-6JB00-0AA0 TP900 Basic Keyless — PROFINET, neutral design
SIMATIC HMI Unified Comfort Panels
Compare MTP Unified Comfort panels by display size and front design. Standard versions carry Siemens branding; neutral versions have no Siemens logo. Check WinCC Unified engineering requirements for the exact model.
- 6AV2128-3GB06-0AX1 MTP700 Unified Comfort — multi-touch
- 6AV2128-3GB36-0AX1 MTP700 Unified Comfort — neutral design, multi-touch
- 6AV2128-3KB06-0AX1 MTP1000 Unified Comfort — multi-touch
- 6AV2128-3KB36-0AX1 MTP1000 Unified Comfort — neutral design, multi-touch
- 6AV2128-3MB06-0AX1 MTP1200 Unified Comfort — multi-touch
- 6AV2128-3MB36-0AX1 MTP1200 Unified Comfort — neutral design, multi-touch
- 6AV2128-3QB06-0AX1 MTP1500 Unified Comfort — multi-touch
- 6AV2128-3QB36-0AX1 MTP1500 Unified Comfort — neutral design, multi-touch
- 6AV2128-3UB06-0AX1 MTP1900 Unified Comfort — Siemens branded, multi-touch
- 6AV2128-3UB36-0AX1 MTP1900 Unified Comfort — neutral design, multi-touch
- 6AV2128-3GB40-0AX0 MTP700 Unified Comfort Hygienic
- 6AV2128-3GB70-0AX0 MTP700 Unified Comfort Hygienic — neutral design
- 6AV2128-3KB40-0AX0 MTP1000 Unified Comfort Hygienic
- 6AV2128-3KB70-0AX0 MTP1000 Unified Comfort Hygienic — neutral design
- 6AV2128-3MB40-0AX0 MTP1200 Unified Comfort Hygienic
- 6AV2128-3MB70-0AX0 MTP1200 Unified Comfort Hygienic — neutral design
- 6AV2128-3QB40-0AX0 MTP1500 Unified Comfort Hygienic
- 6AV2128-3QB70-0AX0 MTP1500 Unified Comfort Hygienic — neutral design
- 6AV2128-3UB40-0AX0 MTP1900 Unified Comfort Hygienic
- 6AV2128-3UB70-0AX0 MTP1900 Unified Comfort Hygienic — neutral design
- 6AV2128-3XB40-0AX0 MTP2200 Unified Comfort Hygienic
- 6AV2128-3XB70-0AX0 MTP2200 Unified Comfort Hygienic — neutral design
- 6AV2128-3XB06-0AX1 MTP2200 Unified Comfort
- 6AV2128-3XB36-0AX1 MTP2200 Unified Comfort — neutral design
- 6AV2128-3MB27-0AX0 MTP1200 Unified Comfort PRO — support arm, top flange, Siemens branded
- 6AV2128-3MB27-0BX0 MTP1200 Unified Comfort PRO — support arm, round tube
- 6AV2128-3MB27-1BX0 MTP1200 Unified Comfort PRO — pedestal, bottom flange, Siemens branded
- 6AV2128-3MB57-0AX0 MTP1200 Unified Comfort PRO — support arm, top flange
- 6AV2128-3MB57-0BX0 MTP1200 Unified Comfort PRO — support arm, round tube
- 6AV2128-3MB57-1BX0 MTP1200 Unified Comfort PRO — pedestal, bottom flange
- 6AV2128-3QB27-0AX0 MTP1500 Unified Comfort PRO — support arm, top flange
- 6AV2128-3QB27-0BX0 MTP1500 Unified Comfort PRO — support arm, round tube
- 6AV2128-3QB27-1BX0 MTP1500 Unified Comfort PRO — pedestal, bottom flange
- 6AV2128-3QB57-0AX0 MTP1500 Unified Comfort PRO — support arm, top flange
- 6AV2128-3QB57-0BX0 MTP1500 Unified Comfort PRO — support arm, round tube, neutral front
- 6AV2128-3QB57-1BX0 MTP1500 Unified Comfort PRO — pedestal, bottom flange
- 6AV2128-3UB27-0AX0 MTP1900 Unified Comfort PRO — support arm, top flange
- 6AV2128-3UB27-0BX0 MTP1900 Unified Comfort PRO — support arm, round tube
- 6AV2128-3UB27-1BX0 MTP1900 Unified Comfort PRO — pedestal, bottom flange
- 6AV2128-3UB57-0AX0 MTP1900 Unified Comfort PRO — support arm, top flange, neutral front
- 6AV2128-3UB57-0BX0 MTP1900 Unified Comfort PRO — support arm, round tube
- 6AV2128-3UB57-1BX0 MTP1900 Unified Comfort PRO — pedestal, bottom flange
- 6AV2128-3XB27-0AX0 MTP2200 Unified Comfort PRO — support arm, top flange
- 6AV2128-3XB27-0BX0 MTP2200 Unified Comfort PRO — support arm, round tube
- 6AV2128-3XB27-1BX0 MTP2200 Unified Comfort PRO — pedestal, bottom flange
- 6AV2128-3XB57-0AX0 MTP2200 Unified Comfort PRO — support arm, top flange, neutral front
- 6AV2128-3XB57-0BX0 MTP2200 Unified Comfort PRO — support arm, round tube
- 6AV2128-3XB57-1BX0 MTP2200 Unified Comfort PRO — pedestal, bottom flange
- 6AV2124-2DC01-0AX0 KTP400 Comfort — PROFINET and MPI/PROFIBUS DP
SIPLUS HMI Comfort Outdoor Panels
Compare SIPLUS Comfort Outdoor models by panel format and variant. Check the exact datasheet for environmental limits, installation conditions and the requirements of Outdoor M versions.
- 6AG1124-0GC13-2AM0 SIPLUS TP700 Comfort Outdoor M
- 6AG1124-0GC13-2AX0 SIPLUS TP700 Comfort Outdoor
- 6AG1124-0QC13-2AM0 SIPLUS TP1500 Comfort Outdoor M
- 6AG1124-0QC13-2AX0 SIPLUS TP1500 Comfort Outdoor
SIMATIC HMI Comfort INOX and INOX PCT Panels
Compare stainless-steel-front Comfort panels by model and front construction. INOX, INOX PCT and Large Front variants have model-specific installation and touch specifications.
- 6AV2144-8GC10-0AA0 TP700 Comfort INOX
- 6AV2144-8GC20-0AA0 TP700 Comfort INOX PCT — capacitive touch
- 6AV2144-8JC10-0AA0 TP900 Comfort INOX
- 6AV2144-8JC20-0AA0 TP900 Comfort INOX PCT — capacitive touch
- 6AV2144-8MC10-0AA0 TP1200 Comfort INOX
- 6AV2144-8MC10-0AC0 TP1200 Comfort INOX LF — Large Front variant
- 6AV2144-8MC20-0AA0 TP1200 Comfort INOX PCT — capacitive touch
- 6AV2144-8QC10-0AA2 TP1500 Comfort INOX V2 — resistive touch
- 6AV2144-8UC10-0AA1 TP1900 Comfort INOX — stainless-steel front
SIMATIC HMI Mobile Panels – 2nd Generation
Compare Mobile Panels by device format and exact variant. Check safety functions, connection boxes, cables and engineering requirements in the model documentation.
- 6AV2125-2DB23-0AX0 KTP400F Mobile
- 6AV2125-2GB03-0AX0 KTP700 Mobile
- 6AV2125-2GB23-0AX0 KTP700F Mobile
- 6AV2125-2JB03-0AX0 KTP900 Mobile
- 6AV2125-2JB23-0AX0 KTP900F Mobile
- 6AV2145-6KB20-0AS0 TP1000F Mobile
- 6AV2145-8GB00-0AA0 KTP700F Mobile HW
- 6AV2145-8GB01-0AA0 KTP700F Mobile HW/OR
- 6AV2145-6GB06-0AA0 KTP700F Mobile Arctic
SIMATIC Industrial Thin Clients
Compare ITC V3 built-in devices and ITC V3 PRO mounting variants. Check supported remote-access protocols, host requirements and installation arrangements for the exact model.
ITC V3 Built-in Devices
- 6AV6646-1BA12-0AA1 ITC1200 V3 — built-in device, Siemens branded
- 6AV6646-1BA12-0NA1 ITC1200 V3 — built-in device, neutral design
- 6AV6646-1BA15-0AA0 ITC1500 V3 — built-in device, Siemens branded
- 6AV6646-1BA24-0AA1 ITC2400 V3 — built-in device, Siemens branded
- 6AV6646-1BA24-0NA1 ITC2400 V3 — built-in device, neutral design
ITC V3 PRO Devices
- 6AV6646-1BB15-0AA0 ITC1500 V3 PRO — pedestal, bottom flange
- 6AV6646-1BC15-0AA0 ITC1500 V3 PRO — support arm, top flange
- 6AV6646-1BD15-0AA0 ITC1500 V3 PRO — support arm, round tube
SIMATIC IFP Basic Industrial Flat Panels
Compare IFP Basic industrial monitors by display format and front variant. Verify the host PC connection, interfaces and mounting dimensions before selection.
- 6AV7862-2BC00-0AA0 IFP1200 Basic — industrial flat panel
- 6AV7862-2BC10-0AA0 IFP1200 Basic C — Covered variant
- 6AV7862-2BD00-0AA0 IFP1500 Basic — industrial flat panel
- 6AV7862-2BE00-0AA0 IFP1900 Basic — industrial flat panel
- 6AV7862-2BF00-0AA0 IFP2200 Basic — industrial flat panel
- 6AV7863-1MA00-2AA0 IFP1200 V2 — Standard, Siemens branded
- 6AV7863-1MA00-2NA0 IFP1200 V2 — Standard, neutral design
- 6AV7863-1MA10-2AA0 IFP1200 V2 — Extended, Siemens branded
- 6AV7863-1MA10-2NA0 IFP1200 V2 — Extended, neutral design
- 6AV7863-5MA00-2AA0 IFP1500 V2 — Standard, Siemens branded
- 6AV7863-5MA00-2NA0 IFP1500 V2 — Standard, neutral design
- 6AV7863-5MA10-2AA0 IFP1500 V2 — Extended, Siemens branded
- 6AV7863-5MA10-2NA0 IFP1500 V2 — Extended, neutral design
- 6AV7863-5MA20-2AA0 IFP1500 V2 — Ethernet
- 6AV7863-5MA20-2NA0 IFP1500 V2 — Ethernet, neutral design
- 6AV7863-6MA00-2AA0 IFP1900 V2 — Standard
- 6AV7863-6MA00-2NA0 IFP1900 V2 — Standard, neutral design
- 6AV7863-6MA10-2AA0 IFP1900 V2 — Extended
- 6AV7863-6MA10-2NA0 IFP1900 V2 — Extended, neutral design
- 6AV7863-6MA20-2AA0 IFP1900 V2 — Ethernet
- 6AV7863-6MA20-2NA0 IFP1900 V2 — Ethernet, neutral design
- 6AV7863-4MA00-2AA0 IFP2200 V2 — Standard, Siemens branded
- 6AV7863-4MA00-2NA0 IFP2200 V2 — Standard, neutral design
- 6AV7863-4MA10-2AA0 IFP2200 V2 — Extended, Siemens branded
- 6AV7863-4MA10-2NA0 IFP2200 V2 — Extended, neutral design
- 6AV7863-4MA20-2AA0 IFP2200 V2 — Ethernet, Siemens branded
- 6AV7863-4MA20-2NA0 IFP2200 V2 — Ethernet, neutral design
- 6AV7863-7MA00-2AA0 IFP2400 V2 — Standard, Siemens branded
- 6AV7863-7MA00-2NA0 IFP2400 V2 — Standard, neutral design
- 6AV7863-7MA10-2AA0 IFP2400 V2 — Extended, Siemens branded
- 6AV7863-7MA10-2NA0 IFP2400 V2 — Extended, neutral design
- 6AV7863-7MA20-2AA0 IFP2400 V2 — Ethernet, Siemens branded
- 6AV7863-7MA20-2NA0 IFP2400 V2 Ethernet — neutral design
- 6AV7863-1MA14-2AA0 IFP1200 V2 PRO — stand variant, Siemens branded
- 6AV7863-1MA14-2NA0 IFP1200 V2 PRO — stand variant, neutral design
- 6AV7863-1MA15-2AA0 IFP1200 V2 PRO — support-arm variant, Siemens branded
- 6AV7863-1MA15-2NA0 IFP1200 V2 PRO — support-arm variant, neutral design
- 6AV7863-1MA16-2AA0 IFP1200 V2 PRO — support arm with operator control, Siemens branded
- 6AV7863-1MA16-2NA0 IFP1200 V2 PRO — support arm with operator control, neutral design
- 6AV7863-5MA14-2AA0 IFP1500 V2 PRO — stand variant, Siemens branded
- 6AV7863-5MA14-2NA0 IFP1500 V2 PRO — stand variant, neutral design
- 6AV7863-5MA15-2AA0 IFP1500 V2 PRO — support-arm variant, Siemens branded
- 6AV7863-5MA15-2NA0 IFP1500 V2 PRO — support-arm variant, neutral design
- 6AV7863-5MA16-2AA0 IFP1500 V2 PRO — support arm with operator control
- 6AV7863-5MA16-2NA0 IFP1500 V2 PRO — support arm with operator control, neutral design
- 6AV7863-6MA14-2AA0 IFP1900 V2 PRO — stand variant, Siemens branded
- 6AV7863-6MA14-2NA0 IFP1900 V2 PRO — stand variant, neutral design
- 6AV7863-6MA15-2AA0 IFP1900 V2 PRO — support-arm variant
- 6AV7863-6MA15-2NA0 IFP1900 V2 PRO — support-arm variant, neutral design
- 6AV7863-6MA16-2AA0 IFP1900 V2 PRO — support arm with operator control
- 6AV7863-6MA16-2NA0 IFP1900 V2 PRO — support arm with operator control, neutral design
- 6AV7863-4MA14-2AA0 IFP2200 V2 PRO — stand variant, Siemens branded
- 6AV7863-4MA14-2NA0 IFP2200 V2 PRO — stand variant, neutral design
- 6AV7863-4MA15-2AA0 IFP2200 V2 PRO — support-arm variant
- 6AV7863-4MA15-2NA0 IFP2200 V2 PRO — support-arm variant, neutral design
- 6AV7863-4MA16-2AA0 IFP2200 V2 PRO — support arm with operator control
- 6AV7863-4MA16-2NA0 IFP2200 V2 PRO — support arm with operator control, neutral design
- 6AV7863-7MA14-2AA0 IFP2400 V2 PRO — stand variant, Siemens branded
- 6AV7863-7MA14-2NA0 IFP2400 V2 PRO — stand variant, neutral design
- 6AV7863-7MA15-2AA0 IFP2400 V2 PRO — support-arm variant, Siemens branded
- 6AV7863-7MA15-2NA0 IFP2400 V2 PRO — support-arm variant, neutral design
- 6AV7863-7MA16-2AA0 IFP2400 V2 PRO — support arm with operator control
- 6AV7863-7MA16-2NA0 IFP2400 V2 PRO — support arm with operator control, neutral design
- 6AV7863-7MA17-2AA0 IFP2400 V2 PRO — portrait, support arm with operator control
- 6AV7863-7MA17-2NA0 IFP2400 V2 PRO — portrait, support arm with operator control, neutral design
- 6AV7285-6NH00-0AA0 IFP1200 V2 Extended Hygienic — Siemens branded
- 6AV7285-6NH00-0AB0 IFP1200 V2 Extended Hygienic — neutral design
- 6AV7285-6HH00-0AA0 IFP1500 V2 Extended Hygienic — Siemens branded
- 6AV7285-6HH00-0AB0 IFP1500 V2 Extended Hygienic — neutral design
- 6AV7285-6KH00-0AA0 IFP1900 V2 Extended Hygienic — Siemens branded
- 6AV7285-6KH00-0AB0 IFP1900 V2 Extended Hygienic — neutral design
- 6AV7285-6LH00-0AA0 IFP2200 V2 Extended Hygienic — Siemens branded
- 6AV7285-6LH00-0AB0 IFP2200 V2 Extended Hygienic — neutral design
SIMATIC HMI MP 377 Multi Panels
Identify the exact MP 377 model when reviewing an existing installation. Check project compatibility and migration requirements before selecting a replacement.
- 6AV6644-0AB01-2AX0 MP 377 15-inch Touch — Multi Panel
