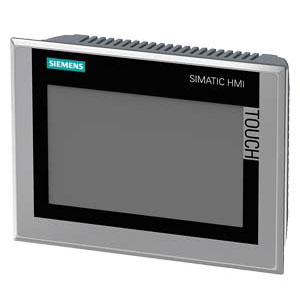

6AV2145-6GB06-0AA0 - Siemens SIMATIC HMI KTP700F
The Siemens 6AV2145-6GB06-0AA0 Human Machine Interface features a 7-inch TFT display, 800×480 resolution, and key-touch operation for industrial automation applications. The 6AV2145-6GB06-0AA0, identified as the Siemens SIMATIC HMI KTP700F, includes 8 programmable function keys, PROFINET, USB, a multimedia card slot, emergency stop and three-stage acknowledgment buttons, and operates from -28°C to 45°C. Manufactured by Siemens, it belongs to the Siemens HMI range and the KTP700 Basic Panel series.
| Brand | Siemens |
| Product Type | HMI - Human Machine Interface |
| Model Number | 6AV2145-6GB06-0AA0 |
Siemens SIMATIC HMI KTP700F 6AV2145-6GB06-0AA0 – Technical Specifications
| Specification | Value |
|---|---|
| Product Description | SIMATIC HMI KTP700F Mobile Arctic, (extended operating temperature range), 7.0" TFT display, 800x 480 pixel, 16m colors, key and touch operation, 8 function keys, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, 1x touch pen, keyswitch, acknowledgement button, emergency shutdown/stop button, configurable from WinCC Comfort V15 SP1 |
| Product family | Mobile Panels for low-temperature environment |
| Product Lifecycle (PLM) | PM300:Active Product |
| Net Weight (kg) | 1,300 Kg |
| Packaging Dimension | 245,00 x 315,00 x 95,00 |
| Package size unit of measure | MM |
| Country of origin | Germany |
The Siemens 6AV2145-6GB06-0AA0 Siemens SIMATIC HMI KTP700F is a Human Machine Interface designed for industrial visualization and operator control, including low-temperature environments. It features a 7-inch widescreen TFT display, 800×480 pixel resolution, key and touch operation, and PROFINET connectivity. The 6AV2145-6GB06-0AA0 belongs to the KTP700 Basic Panel series and is used in industrial automation where operators require machine visualization, physical controls, and fail-safe operating functions.
The Siemens 6AV2145-6GB06-0AA0 can support operator interaction in conveyors, packaging equipment, assembly systems, and other automation applications, particularly where low-temperature operation is required. Its touchscreen, programmable function keys, keyswitch, emergency stop button, and acknowledgment button provide multiple operator control methods. Engineers evaluating the panel may search for 6av2145 6gb06 0aa0 manual, 6av2145 6gb06 0aa0 datasheet, or 6av2145 6gb06 0aa0 price when checking specifications, documentation, and procurement requirements. Its IP65 housing supports use in dusty and wet industrial conditions.
The Siemens 6AV2145-6GB06-0AA0 Siemens SIMATIC HMI KTP700F combines industrial visualization, operator controls, safety functions, and communication within a mobile HMI panel. Its -28°C to 45°C operating range, IP65 enclosure, PROFINET interface, and 7-inch display support operation across demanding automation environments. Siemens provides this configuration for applications requiring operator access together with fail-safe control functions, making the 6AV2145-6GB06-0AA0 suitable for industrial engineers and system integrators working with mobile machine and plant control applications.
