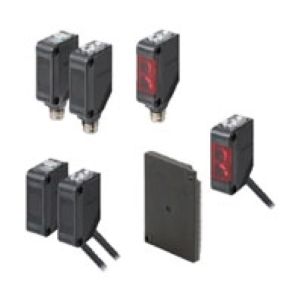

Omron E3Z Photoelectric Sensors
Features:
- The Standard for Photoelectric Sensors with a Secure Track Record of One Million Sold Yearly.
- The long sensing distance of 30 m for Through-beam Models, 4 m for Retro-reflective Models, and 1 m for Diffuse-reflective Models.
- Mechanical axis and optical axis offset of less than ±2.5° simplify optical axis adjustment.
- High stability with a unique algorithm that prevents interference with external light.
- Industry’s Top-level Sensing Distance with Built-in Amplifier.
- Low-temperature Operation for Applications in Cold-storage Warehouses.
- Sensor Protection against Incorrect Wiring.
- Complete Compliance with the EU’s RoHS Directive.
Model No: E3Z-T61 2M
Emitter E3Z-T61-L 2M; Receiver E3Z-T61-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Infrared light, 15M Sensing Distance, NPN, 12 to 24 VDC.
Model No: E3Z-T81 2M
Emitter E3Z-T81-L 2M; Receiver E3Z-T81-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Infrared light, 15M Sensing Distance, PNP, 12 to 24 VDC.
Model No: E3Z-T61K 2M
Emitter E3Z-T61-K-L 2M; Receiver E3Z-T61-K-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Infrared light, 15M Sensing Distance, NPN, 12 to 24 VDC.

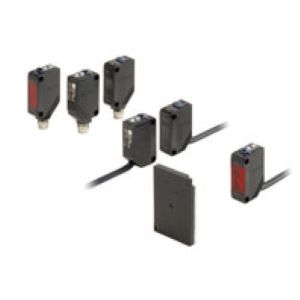

Model No: E3Z-T81K 2M
Emitter E3Z-T81-K-L 2M; Receiver E3Z-T81-K-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Infrared light, 15M Sensing Distance, PNP, 12 to 24 VDC.

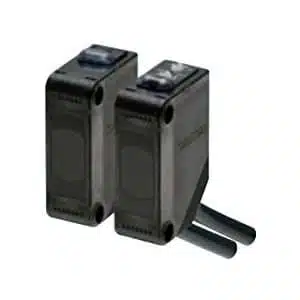

Model No: E3Z-T61K-M3J 0.3M
Emitter E3Z-T61K-L-M3J 2M; Receiver E3Z-T61K-D-M3J 2M
Technical Specifications: Through-beam, NPN, Infrared LED, Sensing distance 15 m, Light-ON/Dark-ON selectable, M8 Pigtail Connector 4-pin, Cable Length 0.3 M, 12 to 24 VDC.
Model No: E3Z-T81K-M3J 0.3M
Emitter E3Z-T81K-L-M3J 2M; Receiver E3Z-T81K-D-M3J 2M
Technical Specifications: Through-beam, NPN, Infrared LED, Sensing distance 15 m, Light-ON/Dark-ON selectable, M8 Pigtail Connector 4-pin, Cable Length 0.3 M, 12 to 24 VDC.
Model No: E3Z-T66
Emitter E3Z-T66-L; Receiver E3Z-T66-D
Technical Specifications: Through-beam, M8 Connector type, Infrared light, 15M Sensing Distance, NPN, 12 to 24 VDC.
Model No: E3Z-T86
Emitter E3Z-T86-L; Receiver E3Z-T86-D
Technical Specifications: Through-beam, M8 Connector type, Infrared light, 15M Sensing Distance, PNP, 12 to 24 VDC.

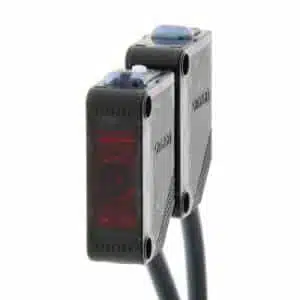

Model No: E3Z-T61A 2M
Emitter E3Z-T61-A-L 2M; Receiver E3Z-T61-A-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Red light, 10M Sensing Distance, NPN, 12 to 24 VDC.
Model No: E3Z-T81A 2M
Emitter E3Z-T81-A-L 2M; Receiver E3Z-T81-A-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Red light, 10M Sensing Distance, PNP, 12 to 24 VDC.

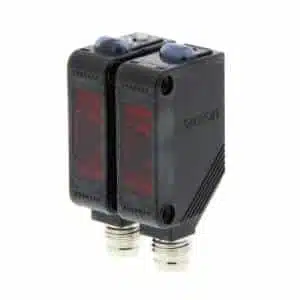

Model No: E3Z-T66A
Emitter E3Z-T66-A-L; Receiver E3Z-T66-A-D
Technical Specifications: Through-beam, M8 Connector type, Red light, 10M Sensing Distance, NPN, 12 to 24 VDC.
Model No: E3Z-T86A
Emitter E3Z-T86-A-L; Receiver E3Z-T86-A-D
Technical Specifications: Through-beam, M8 Connector type, Red light, 10M Sensing Distance, PNP, 12 to 24 VDC.
Model No: E3Z-T62 2M
Emitter E3Z-T62-L 2M; Receiver E3Z-T62-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Infrared light, 30M Sensing Distance, NPN, 12 to 24 VDC.
Model No: E3Z-T82 2M
Emitter E3Z-T82-L 2M; Receiver E3Z-T82-D 2M
Technical Specifications: Through-beam, Pre-wired (2 m Cable Length), Infrared light, 30M Sensing Distance, PNP, 12 to 24 VDC.
Model No: E3Z-T67
Emitter E3Z-T67-L; Receiver E3Z-T67-D
Technical Specifications: Through-beam, M8 Connector type, Infrared light, 30M Sensing Distance, NPN, 12 to 24 VDC.
Model No: E3Z-T87
Emitter E3Z-T87-L; Receiver E3Z-T87-D
Technical Specifications: Through-beam, M8 Connector type, Infrared light, 30M Sensing Distance, PNP, 12 to 24 VDC.
Model No: E3Z-R61 2M
Technical Specifications: Retro-reflective with MSR function, Pre-wired (2 m Cable Length), Red light, 4M Sensing Distance, NPN, 12 to 24 VDC.

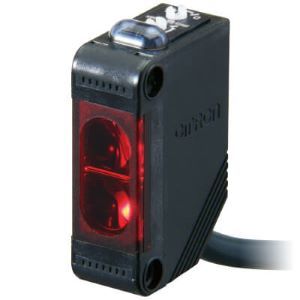

Model No: E3Z-R81 2M
Technical Specifications: Retro-reflective with MSR function, Pre-wired (2 m Cable Length), Red light, 4M Sensing Distance, PNP, 12 to 24 VDC.
Model No: E3Z-D61 2M
Technical Specifications: Diffuse-reflective, Pre-wired (2 m Cable Length), Red light, 5 to 100 mm Sensing Distance, NPN, 12 to 24 VDC.
Model No: E3Z-D81 2M
Technical Specifications: Diffuse-reflective, Pre-wired (2 m Cable Length), Red light, 5 to 100 mm Sensing Distance, PNP, 12 to 24 VDC.
Model No: E3Z-D61K 2M
Technical Specifications: Diffuse-reflective, NPN, Infrared LED, Sensing distance 5 to 100 mm, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.
Model No: E3Z-D62K 2M
Technical Specifications: Diffuse-reflective, NPN, Infrared LED, Sensing distance 1 m, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.

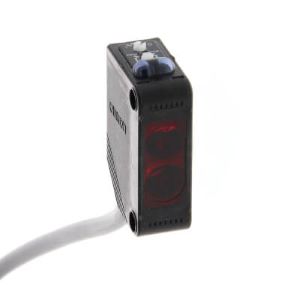

Model No: E3Z-D62 2M
Technical Specifications: Diffuse-reflective, Pre-wired (2 m Cable Length), Infrared light, 1M Sensing Distance, NPN, 12 to 24 VDC.

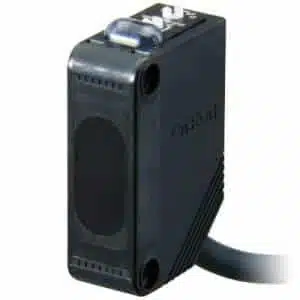

Model No: E3Z-D82 2M
Technical Specifications: Diffuse-reflective, Pre-wired (2 m Cable Length), Infrared light, 1M Sensing Distance, PNP, 12 to 24 VDC.

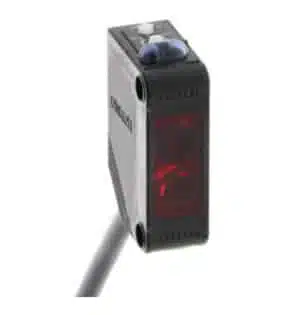

Model No: E3Z-L61 2M
Technical Specifications: Diffuse-reflective, Pre-wired (2 m Cable Length), Red light, 90±30 mm (narrow beam) Sensing Distance, NPN, 12 to 24 VDC.

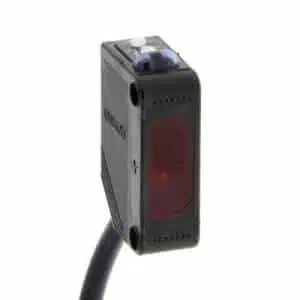

Model No: E3Z-L81 2M
Technical Specifications: Diffuse-reflective, Pre-wired (2 m Cable Length), Red light, 90±30 mm (narrow beam) Sensing Distance, PNP, 12 to 24 VDC.
Model No: E3Z-L63 2M
Technical Specifications: Limited-reflective, Transparent glasses detection, NPN, Red LED, Sensing distance 30 ± 20 mm, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.
Model No: E3Z-LS83 2M
Technical Specifications: Background suppression, PNP, Red LED, Sensing distance 2 mm to 80 mm, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.
Model No: E3Z-LS61 2M
Technical Specifications: Distance Settable, Red light, Sensing Distance 20 to 200mm, NPN, Pre-wired models, 12 to 24 VDC.
Model No: E3Z-LS81 2M
Technical Specifications: Distance Settable, Red light, Sensing Distance 20 to 200mm, PNP, Pre-wired models, 12 to 24 VDC.

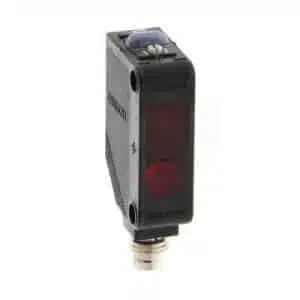

Model No: E3Z-LS68
Technical Specifications: Background suppression, NPN, Red LED, Sensing distance of 2 mm to 80 mm, Light-ON/Dark-ON selectable, M8 Connector – 4 pin, 12 to 24 VDC.
Model No: E3Z-LS88
Technical Specifications: Background suppression, PNP, Red LED, Sensing distance of 2 mm to 80 mm, Light-ON/Dark-ON selectable, M8 Connector – 4 pin, 12 to 24 VDC.

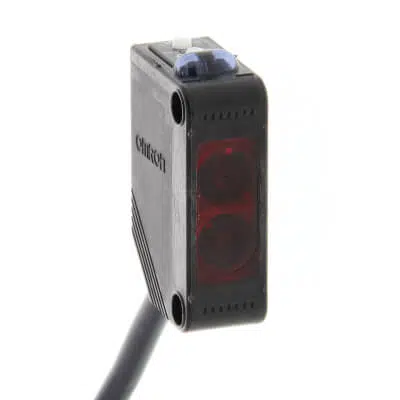

Model No: E3Z-B61 2M
Technical Specifications: Retro-reflective, Transparent object, Sensing Distance 80 to 500mm, NPN, Pre-wired, 12 to 24 VDC.
Model No: E3Z-B81 2M
Technical Specifications: Retro-reflective, Transparent object, Sensing Distance 80 to 500mm, PNP, Pre-wired, 12 to 24 VDC.
Model No: E3Z-B62 2M
Technical Specifications: Retro-reflective, Transparent object, Sensing Distance 2000 mm, NPN, Pre-wired, 12 to 24 VDC.
Model No: E3Z-B82 2M
Technical Specifications: Retro-reflective, Transparent object, Sensing Distance 2000 mm, PNP, Pre-wired, 12 to 24 VDC.
Model No: E3Z-G61 2M
Technical Specifications: Slot housing, Single Through-beam, 1 axis, NPN, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.
Model No: E3Z-G81 2M
Technical Specifications: Slot housing, Single Through-beam, 1 axis, PNP, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.
Model No: E3Z-G62 2M
Technical Specifications: Slot housing, Twin Through-beam, 2 axes, NPN, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.
Model No: E3Z-G82 2M
Technical Specifications: Slot housing, Twin Through-beam, 2 axes, PNP, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, Cable Length 2m, 12 to 24 VDC.
Model No: E3Z-G61-M3J 0.3M
Technical Specifications: Slot housing, Single Through-beam, 1 axis, NPN, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, M8 Pigtail Connector 4-pin, Cable Length 0.3 M, 12 to 24 VDC.

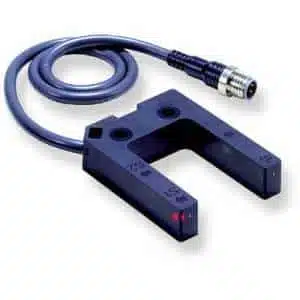

Model No: E3Z-G81-M3J 0.3M
Technical Specifications: Slot housing, Single Through-beam, 1 axis, PNP, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, M8 Pigtail Connector 4-pin, Cable Length 0.3 M, 12 to 24 VDC.
Model No: E3Z-G62-M3J 2M
Technical Specifications: Slot housing, Single Through-beam, 2 axes, NPN, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, M8 Pigtail Connector 4-pin, Cable Length 0.3 M, 12 to 24 VDC.
Model No: E3Z-G82-M3J 2M
Technical Specifications: Slot housing, Single Through-beam, 2 axes, PNP, Infrared LED, Sensing distance 25 mm, Light-ON/Dark-ON selectable, M8 Pigtail Connector 4-pin, Cable Length 0.3 M, 12 to 24 VDC.
