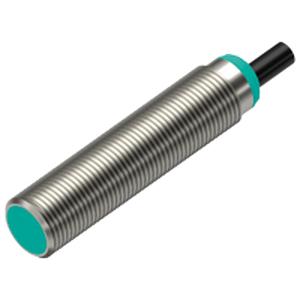

Pepperl Fuchs M12 Proximity Switch NBB4-12GM50-E2
The Pepperl+Fuchs NBB4-12GM50-E2 Technical Specifications are as follows:
- Housing Diameter: 12mm
- Connection Type: Cable PVC
- Sensing Distance: 4 mm
- Installation: Flush
- Switching Frequency : 0 … 2550 Hz
- Switching Function: Normally open (NO)
- Output type: PNP & 3 Wire
₹850.00
In stock
Pepperl Fuchs NBB4-12GM50-E2 Technical Specifications:
Pepperl Fuchs NBB4-12GM50-E2 inductive sensors are specifically engineered for automation purposes and can effectively detect metallic objects within a 4mm range. It features a normally open (NO) switching function and employs a PNP output with a 3-wire connection proximity sensor.
| Switching function | Normally open (NO) | |
| Output | PNP | |
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 3.24mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 3.04mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.39 | |
| Reduction factor rCu | 0.35 | |
| Reduction factor r304 | 0.75 | |
| Reduction factor rBrass | 0.49 | |
| Output | 3-wire | |
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 800 Hz | |
| Hysteresis | Typ. 5% | |
| Reverse polarity protection | Protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load supply current | ≤ 15 mA | |
| The time delay before availability | ≤ 5 ms | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Connection type | Cable PVC, 2M Cable Length | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
Product Documentation: NBB4-12GM50-E2
Here is the main technical specification of Pepperl Fuchs Inductive Proximity Sensor NBB4-12GM50-E2: M12 Dia, Flush, PNP, 4mm Sensing, Normally Open, Cable type.
If you want to know all range Pepperl Fuchs proximity models you can check.
Related Products: NBB4-12GM50-E2

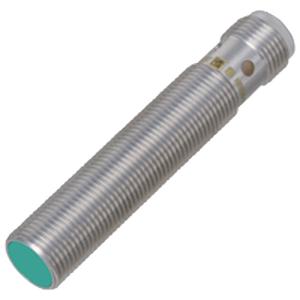

NBB4-12GM50-E2-V1
