Hanyoung Temperature Controller: ND4, DX Temp Controllers

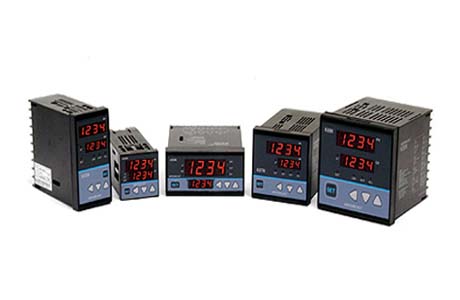

IndMALL presents the Hanyoung Temperature Controller range, a versatile solution for precise temperature management in industrial settings. Our collection includes the AX, DX, NX, and ND4 series, each designed to meet diverse control needs. The AX series excels with multi-input/output functionality and rapid sampling, while the DX series stands out for its PID auto-tuning and alarm features. The NX series offers advanced control with its fuzzy function and multiple PID types, and the ND4 series is known for its straightforward temperature setup and safety features. These Hanyoung PID controllers ensure reliable, efficient temperature regulation, essential for various industrial applications
Hanyoung Temperature Controller – AX Series
- Product Series: AX series.
- Functionality: Multi-Input/Output.
- Sampling Cycle: High-speed sampling at 0.1 sec.
- Installation Depth: 63mm.
- Control Output: Option to select between reverse operation and direct operation.
- Feature: PID auto-tuning for enhanced control.

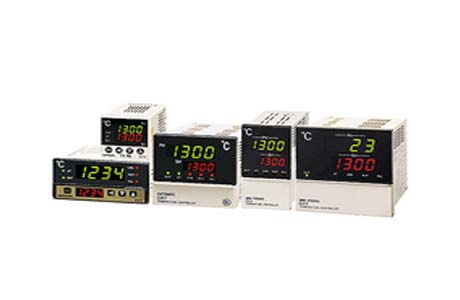

Hanyoung PID Controller – DX Series
- PID Auto Tuning: Includes PID auto-tuning for precise control.
- Action Selection: Option to select direct action or reverse action internally.
- Alarm Outputs: Features high and low alarm outputs.
- Control Loop Breaks Alarm: Includes LBA (Control Loop Breaks Alarm).
- Display and Settings: Decimal point display with high/low setting limitation.
- Retransmission Output: Equipped with retransmission output capability.

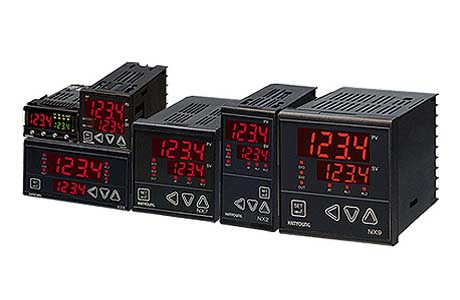

Hanyoung PID Temperature Controller – NX series
- Control Functions: Fuzzy function, PID auto-tuning.
- PID Types: 3Zone PID/group PID in 3 types.
- Control Features: Ramp control function.
- Temperature Control: Heating/cooling control, HBA.
- Set Value Selection: 3 types of set value selection by contact input (DI).
- Communication: Equipped with communication function (RS485/422).
Hanyoung Temp Controller – ND4 series
- Temperature Setup: Simple process for setting up temperature.
- Control Options: Offers both proportioning control and ON/OFF control.
- Safety Feature: Includes a burn-out function (Output OFF when the sensor is disconnected).
- Design: Plug-in type, facilitating simple correcting, checking, and exchanging.
Product List:
Model No |
Image |
Dimension |
Output |
Power supply voltage |
Input |
Weight |
|---|---|---|---|---|---|---|

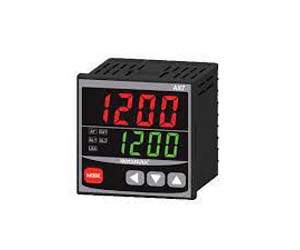

| AX-2-1-A |  |
48 X 96 mm | SSR + Relay1 + Relay2 | 100 – 240 V a.c 50/60 ㎐ | Multi-Input | – |

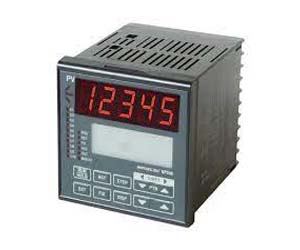

| NX-9-1-1-D |  |
96 X 96 mm | – | 24VDC | Multi-Input | 472g |

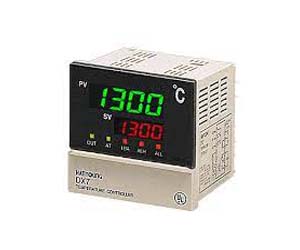

| DX-3-P-M-S-N-R-A |  |
96(W) × 48(H) mm | – | 100 – 240 V a.c | Single Input | – |

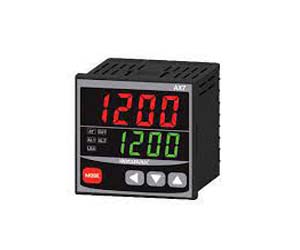

| NX-7-2-1-D |  |
72(W) x 72(H) | – | 24 VDC | Multi-Input | 344g |
Frequently Asked Questions
What are the Units of PID?
PID stands for Proportional, Integral, and Derivative, which are control actions used in PID & Digital Controllers for automation.
The Proportional (P) unit measures the current error. It’s the difference between the setpoint and the actual value.
The Integral (I) unit focuses on past errors. If an error has been present for an extended period, it accumulates.
The Derivative (D) unit predicts future errors, determining how fast the error is changing.
Together, the PID units ensure systems like temperature controllers work effectively and smoothly.
How Many Types Of Temp Controllers Are There?
Temperature controllers are devices that control temperature. They come in various types.
The main types are On-Off, Proportional, PID, and Fuzzy Logic controllers.
On-off controllers are basic. They switch on or off based on temperature.
Proportional controllers adjust output in relation to the temperature difference.
PID controllers use Proportional, Integral, and Derivative actions for precise control.
Fuzzy Logic controllers use logical reasoning, ideal for complex processes.
Each type serves different needs and applications. Choose based on your specific requirement.
What is a 2 Point Temperature Controller?
A 2-point temperature controller is a basic device. It manages temperature by switching on or off.
Imagine a room heater. When it’s cold, the heater turns on. When warm, it turns off.
This controller has two points: turn-on point and turn-off point.
The gap between these points is called hysteresis.
So, a 2-point controller maintains temperature within a specific range.
It’s simple, effective, but might not be precise for all uses.
Discover Hanyoung Temperature Controller at IndMALL and inquire about pricing now.
