Fuji Temperature Controllers – PID Temp Controller

Fuji Temperature Controllers are industrial control devices designed to regulate and maintain precise temperature levels in automation systems. Known for their accuracy and stable performance, these controllers use advanced control methods such as PID and ON/OFF logic to ensure consistent thermal conditions in industrial processes. As part of modern PID temp controller solutions, they are widely used in manufacturing and process industries for reliable temperature management.

In applications such as plastics, packaging, food processing, and furnace systems, maintaining accurate temperature control is essential for product quality and efficiency. Fuji Electric Drives and controller systems offer flexible configuration, compatibility with thermocouples and RTDs, and dependable operation in demanding industrial environments.

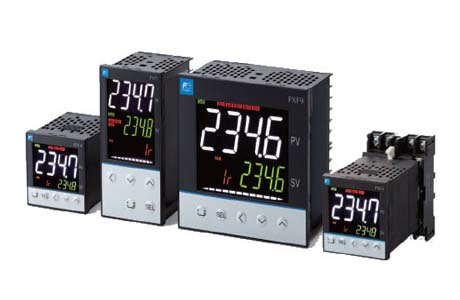

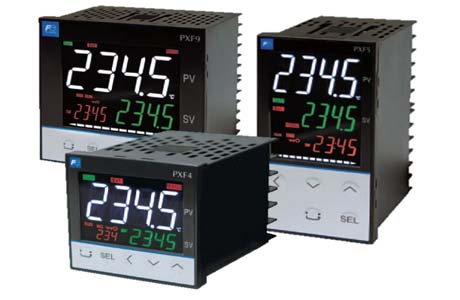

Fuji Temperature Controller – PXF Series

Sampling Rate: 50 ms.
Display: MVA LCD with white process value display.
Size: Compact design, 36% smaller than conventional models.
Input: Universal (RTD, thermocouples, voltage, current, mV).
Output Types: Multiple, including relay contact and SSR/SSC drive.
Dimensions: PXF4, PXF5, PXF9 models with varying sizes.
Power Supply: 100–240 V AC, 50/60 Hz, or 24 V AC/DC.
Enclosure: Waterproof, IP 66 equivalent.

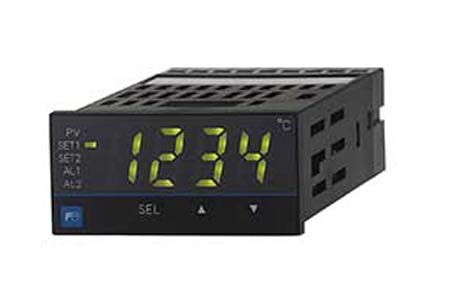

Fuji PID Controller – PXR3 Series

Input: Supports various thermocouples and thermistors.
Measurement Cycle: Less than 0.5 seconds.
Display: Green LED.
Alarm Output: 1 or 2 points, SPST.
Power: 100–240 V AC, 50/60 Hz.
Operating Temp: -10°C to +50°C.
Mounting: Panel mount; optional DIN rail adapter.
Size/Weight: 24 × 48 × 85 mm, 150 g.
Terminal: Screw clamp.

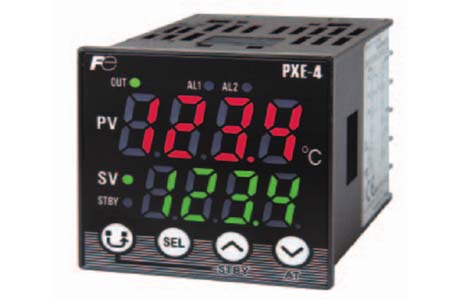

Fuji Digital Temperature Controller – PXE Series

Size: 48 x 48 x 62 mm; Weight: 100 g.
Input: Programmable RTD and thermocouples.
Output: Relay contact or SSR drive; dual control option.
Alarm: Up to two outputs.
Display: 7-segment 4-digit LED.
Power: 100–240 V AC, 50/60 Hz.
Sampling Rate: 0.2 s.
Protection: IP66 waterproof front.
Operating Temperature: -10°C to +55℃.

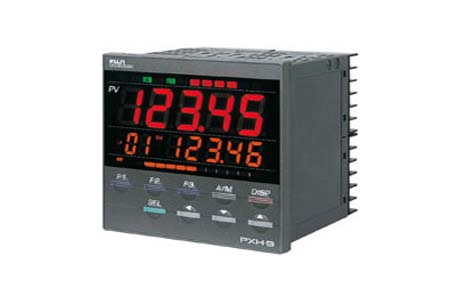

Fuji Temp Controller – PXH Series

Dimensions: 96 x 96 x 81.5 mm; Weight: Approx. 500 g.
Performance: 50 ms input sampling; 0.1% accuracy.
Display: 5-digit LED.
Inputs: Thermocouple, RTD, DC voltage/current.
Control: PID with auto tuning; multiple control options.
Outputs: Relay, SSR/SSC drive, 4–20 mA DC.
I/O: 9 DIs, 9 DOs, 2 AOs.
Power: 100–240 V AC, 50/60 Hz.
Protection: IP66 waterproof front.

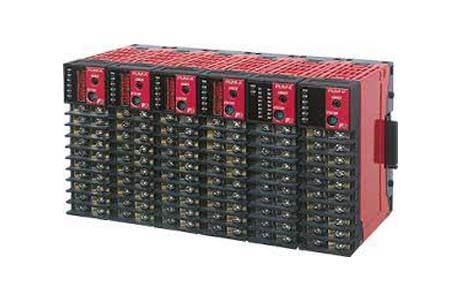

Fuji Electric Temperature Controller – PUM series

Integration: Temperature controller and PLC in one.
Control Speed: Fast control within 100 ms.
Upgraded Functions: Includes ramp soak, and motorized valve control.
Parameter Software: For easy setting and monitoring.
Mounting: Rail-mount, multi-loop configuration.
Versatility: Suitable for various applications.

Frequently Asked Questions

What is The Difference Between PID Temperature Controller And Temperature Controller

A PID temperature controller offers precise control using Proportional, Integral, and Derivative methods. It’s ideal for situations needing high accuracy.

A basic temperature controller simply turns heat on or off. It’s less accurate but easier to use.

The main difference is precision. Choose a PID controller for detailed control and a basic one for simple tasks.

What is Fuji Temperature Controller PXF Series?

The Fuji Temperature Controller PXF series is a special kind of device that helps control temperature. It’s made by Fuji Electric, a trusted name in electronics.

This series is known for its accuracy and speed. It can sample temperature inputs very quickly and adjusts the heat or cooling as needed.

One big feature is its “ramp soak” function. This means it can change temperature levels in stages, not just all at once.

It’s great for industries where precise temperature is crucial. From manufacturing to food processing, this series is a reliable choice.

In short, if you need to control temperature with high accuracy, the PID Controller PXF series is worth considering.

How Accurate is The Digital Temperature Controller?

The accuracy of a digital temperature controller can vary from one model to another. However, many offer a high level of accuracy, often within a range of plus or minus 0.1% to 1%.

These controllers use digital technology to read temperature. This makes them more accurate than older, analog types.

Some high-end models can even display temperature to the second decimal point. This is helpful in industries where even a small temperature change matters.

To sum up, digital temperature controllers are generally very accurate. They are a reliable tool for maintaining precise temperature conditions.

What is The PFX4 Temperature Controller?

The PFX4 temperature controller is a special device that helps to manage heat levels. It’s made by the Fuji Electric company and is part of their PXF series.

This controller is often used in industrial settings. It helps machines and systems maintain the right temperature, making operations smoother.

One key feature is its high-speed control. It checks the temperature quickly and adjusts it, ensuring accuracy and efficiency.

Overall, the PFX4 temperature controller is a reliable and fast tool. It’s perfect for places that need precise temperature control.
