Autonics Temperature Controller: PID Controllers
Autonics PID come in different types like TK, TCN, TZN/TZ, TC, TM, and TX. Each type has its own special features. They can measure temperature very quickly and accurately, show clear displays, and work with different kinds of outputs like SSR drive and current output.

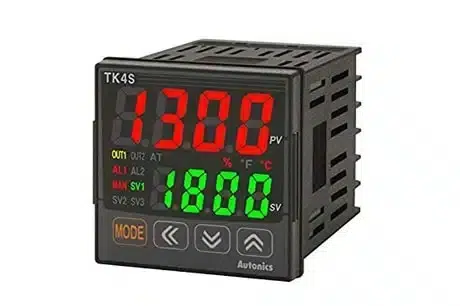

Autonics Temperature Controller: TK Series
- Sampling Rate: 50 ms, high-speed.
- Output Options: Current output and SSR drive output.
- SSRP Function: ON/OFF, cycle, phase control.
- Power Supply: AC 100-240 VAC, AC/DC 24 VAC, 24-48 VDC.
- Display: 7 segment (red, green, yellow), LED.
- Control Type: Heating, Cooling, ON/OFF, P, PI, PD, PID.
- Protection: IP65 (Front panel), IP50 (TK4SP).

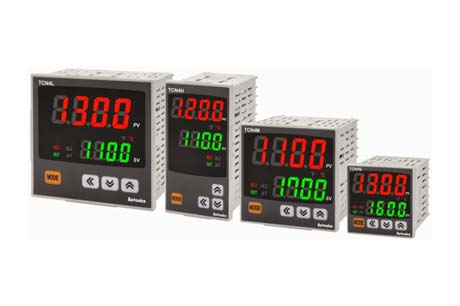

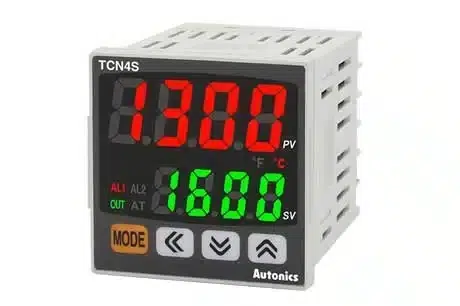

Temperature Controller Autonics: TCN Series
- Display: Dual digital (PV/SV), 7 segment (red, green), LED type.
- Sampling Rate: 100 ms, high-speed.
- Accuracy: ±0.5% display accuracy.
- Output Options: Relay output and SSR drive output.
- SSRP Function: ON/OFF, cycle, phase control.
- Power Supply: 24 VAC, 24-48 VDC, 100-240 VAC.
- Power Consumption: AC ≤ 5 VA, DC ≤ 3 W.

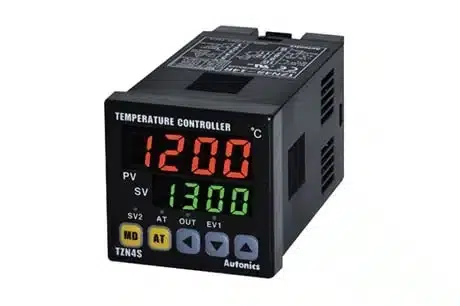

Autonics PID: TZN/TZ Series
- Control Type: Dual-speed PID for high-speed
- Display Accuracy: ±0.3% of full-scale value.
- Auto Tuning: 2-step function.
- Input Types: Supports 13 types, including temperature sensors and analog inputs.
- Alarm Outputs: Loop break alarm, sensor break alarm.
- Output Options: PV transmission (DC 4-20mA)
Autonics PID Controller: TC Series
- Display: Single digital (switch between PV and SV), 7 segment (red, green, yellow), LED type.
- Sampling Rate: 100 ms, high-speed.
- Accuracy: ±0.5% display accuracy.
- Output Options: Relay output and SSR drive output.
- Design: Compact with large display panels, connector plug types for easy wiring.
- Power Supply: 24 VAC, 24-48 VDC, 100-240 VAC.

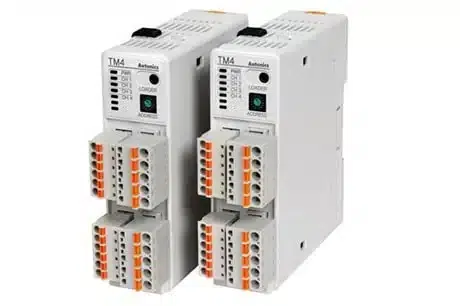

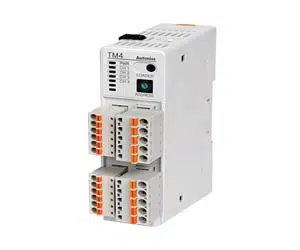

Autonics PID Temperature Controller: TM Series
- Channels: 4-channel (TM4) / 2-channel (TM2).
- Sampling Cycle: 4-channel: 100ms / 2-channel: 50ms.
- Control Function: Simultaneous heating and cooling.
- Input Isolation: Dielectric strength: 1000 VAC.
- Output Options: Current output and SSR drive output (TM2-2C).
- Alarm Function: Heater disconnect (CT input).
- Control Output: Relay and SSR options, Current DC 4-20/0-20 mA.

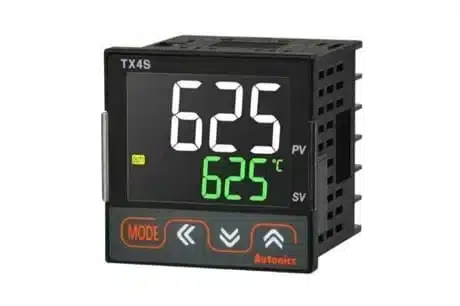

Autonics Temp Controller: TX Series
- Sampling Rate: 50 ms, high-speed.
- Display Accuracy: ±0.3%.
- Display: Large LCD with white PV characters.
- Output Options: Current output and SSR drive output.
- SSRP Function: ON/OFF, cycle, phase control.
- Power Supply: 100 – 240 VAC, 50/60 Hz ±10%.
- Power Consumption: ≤ 8 VA.
- Control Output: Relay and SSR options, Current DC 4-20/0-20 mA.
Check out advanced range of Autonics Temperature Controllers at IndMALL, featuring models like the TCN4S and TZN4S. Need detailed guidance? Check out our Autonics temperature controller TCN4S manual for comprehensive instructions.
For more compact needs, the Autonics TC3YT temperature controller offers precise control in a smaller package. Don’t miss the detailed Autonics temperature controller TZ4ST manual for in-depth usage information.
For those requiring advanced features, our Autonics temperature controller with RS485 offers superior communication capabilities. Trust Autonics for all your temperature regulation needs, whether it’s the TCN4S, TZN4S, or any other model in our extensive lineup.
Product List:
Model No |
Image |
Display Method |
Sampling Cycle |
Control Output |
Power Supply |
Protection Structure |
|---|---|---|---|---|---|---|

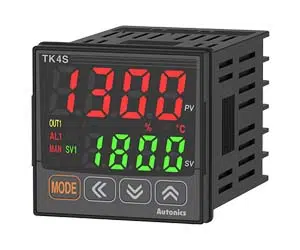

| TK4S-B4CN |  |
4-digit 7-segment LED | 50ms | Current(DC0/4-20mA) or SSR drive(11VDC ) [ON/OFF] | 100-240VAC~ 50/60Hz | IP65 |

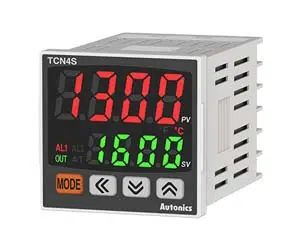

| TCN4S-24R |  |
4-digit 7-segment LED | 100ms | Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF] | 100-240VAC~ 50/60Hz | Radial cable type |
| TM4-N2RE |  |
Non-display | 100ms | 250 VAC~ 3A 1a, 30 VDC 3A 1a | 24VDC ±10% | Axial cable type |

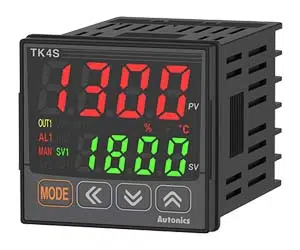

| TK4S-T4CN |  |
4-digit 7-segment LED | 50ms | Current(DC0/4-20mA) or SSR drive(11VDC ) [ON/OFF] | 100-240VAC~ 50/60Hz | IP65 |

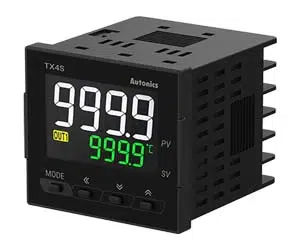

| TX4S-14R |  |
4-digit 11-segment LCD | 50ms | Relay (250VAC~ 3A, 30VDC 3A) | 100-240VAC~ 50/60Hz | IP50 |
- The TK4S-B4CN model features a 4-digit 7-segment LED display, a 50ms sampling cycle, and offers control outputs of either Current (DC0/4-20mA) or SSR drive (11VDC) [ON/OFF]. It operates on a power supply of 100-240VAC~ 50/60Hz and has an IP65 protection structure.
- Next, the TCN4S-24R also comes with a 4-digit 7-segment LED display but with a 100ms sampling cycle. Its control output options include Relay (250VAC~ 3A) or SSR drive (12VDC) [ON/OFF], powered by 100-240VAC~ 50/60Hz. This model features a radial cable type.
- The TM4-N2RE, designed without a display, has a 100ms sampling cycle and control outputs of 250 VAC~ 3A 1a, 30 VDC 3A 1a. It is powered by 24VDC ±10% and comes with an axial cable type.
- The TK4S-T4CN model mirrors the TK4S-B4CN in terms of display and sampling cycle but differs in its specific model features. It operates on a power supply of 100-240VAC~ 50/60Hz and maintains an IP65 protection structure.
- Lastly, the TX4S-14R offers a 4-digit 11-segment LCD display with a 50ms sampling cycle. Its control outputs are Relay (250VAC~ 3A, 30VDC 3A), and it operates on a power supply of 100-240VAC~ 50/60Hz with an IP50 protection structure.
Frequently Asked Questions
How does PID temperature controller work?
What’s important is distinguishing between ON/OFF Controllers versus PID Controllers. While an ON/OFF Temperature Controller functions as an on-and-off power switch. PID Controller proves more effective in sustaining a steady output throughout operations.
The term ‘PID’ represents a proportional integral derivative. where proportional means d/b SV-PV differences. Integral notes prior deviations from target temperatures. And Derivatives forecast future variances based on past patterns.
What is the Autonics TX4S temperature controller?
what is the dual PID of TZ/ TZN Series ?
The dual PID function ensures optimal performance no matter how complex your system may be. This remarkable controller provides high-accuracy measurement capabilities along with programmable alarms and communication options for effortless system integration.
