Toho Temperature Controller: PID Models

IndMALL offers Toho Temperature Controller, perfect for controlling temperature in many industries. These controllers are easy to use and very accurate. They have special features like quick response times and different input options for various needs. Models like TTM I4N, TTM-210, TTM-214, and TTM-339 each have their own special features. They are small in size, can be set up easily, and work with many types of outputs. These controllers are great for any business that needs reliable temperature control. They are built to last and work well in different situations. Choose IndMALL Toho controllers for a trustworthy and flexible way to manage temperature.

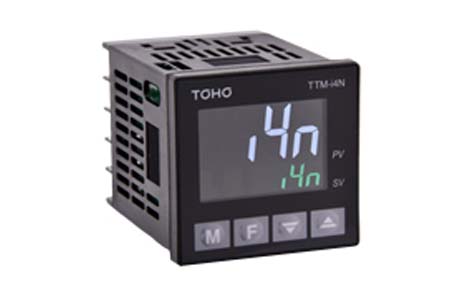

Toho Temperature Controller TTM I4N

Control: Ultra-fuzzy control for overshoot prevention.
Display: Large, clear white display.
Configuration: Easy setting via PC with loader cable, no external power needed.
Size: Compact, 59mm depth.
Sampling Cycle: 250ms.
Standards: Complies with UL, CE, KC.
Memory: EEPROM data storage for power failure recovery.
Input Types: Multiple thermocouples and RTD options.
Accuracy: High display precision, varies by input and temperature.
Output: Versatile control and event outputs, including 250VAC and 12VDC options.

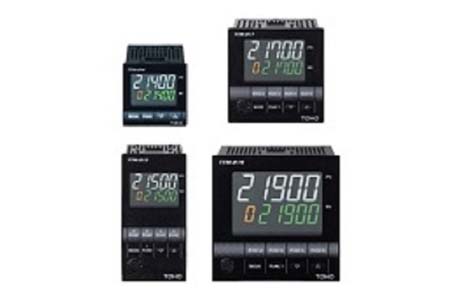

Toho Temp Controller – TTM-210 Series

PID Control: Enhanced for faster stabilization.
Input Variety: Multiple thermocouples, RTDs, and voltage/current types.
Display: 5-digit LCD with LED backlight.
Compact Size: Depth from 59.7 mm to 65 mm.
Sampling Rate: 200ms.
Outputs: Includes relay, SSR, and open collector.
Protection: IP66 (TTM-214).

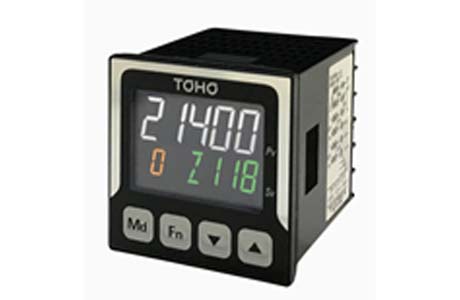

Toho PID Controller – TTM-214-Z118/Z119

Performance: 10 mS sampling cycle, adjustable to 500mS.
Size: Compact, 48 x 48 x 59.7 mm.
Input Options: Temperature and Analog Inputs.
Control: Advanced Auto Tuning for PID.
Correction: 16-Point Correction Function.
Output: Event Output Counter.
Program Control: 8-step simplified programming.
Display: High-brightness white LCD.

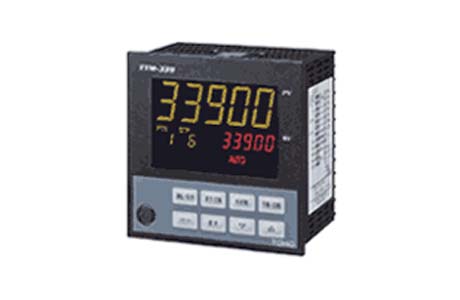

Temp Control Toho – TTM-339

Programs: Up to 15 patterns and 99 steps.
Inputs: Multiple types including 13 Thermocouples, 2 RTDs, 5 Voltage, 1 Current.
Display: 5-digit LCD with 7-segment indication and LED backlight.
Size: Compact, 65mm depth with 2mm front panel protrusion
Communication: Loader function for parameter setup; RS485 protocol/MODBUS support.
Features: Backup and Initialization, Blind function, Manual control.
Connectivity: Supports up to 31 units, 500m cable length.

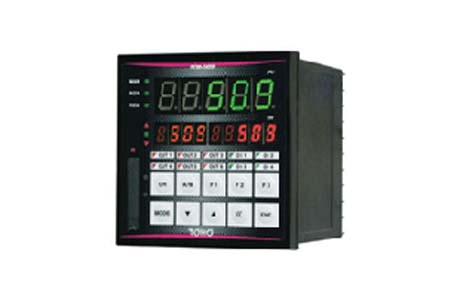

Toho Controller – TTM-509

Input Variety: 2 customizable inputs; supports 4 wire RTD and others.
Control Options: Includes 2 inputs control, cascade control, and more.
Outputs: 2 main control outputs, 4 auxiliary outputs.
Protocols: Supports TTM and MODBUS protocols.
CT Input: 2-channel for three-phase circuit monitoring.
Memory Bank: Stores 8 types of control parameters.
PID Control: Self-tuning for heating/cooling applications.
Display Functions: Blind function for selective parameter display.
Timer: Simplified timer with ON/OFF control.

Frequently Asked Questions

How To Connect Temperature Controller?

A temperature controller helps regulate heat in systems. Start by turning off the power. Connect the input sensor to your controller. Then, attach the output to your heater or cooler. Lastly, power on and set your desired temperature.

What is Temperature Controller Circuit?

A temperature controller circuit manages the heat in devices. It has a sensor, comparator, and power switch. The sensor measures heat. The comparator checks it against a set value. If different, the power switch adjusts the device’s temperature.

How Do You Calibrate a Temperature Controller?

Calibrating a temperature controller ensures accurate readings. First, choose a known temperature source. Connect your controller’s sensor to it. Monitor the controller’s reading. If it’s off from the known value, adjust it until it matches. Repeat occasionally for best results.

Check out the Toho Temperature Controller at IndMALL for a great deal!
