Eurotherm Temperature Controllers: Digital Controllers

At IndMALL, we offer a wide range of Eurotherm Temperature Controllers. These controllers are great for keeping temperatures just right in many industries. Our selection includes different models like the 3200 and 2604, each models perfect for different tasks. They are easy to use, show clear readings, and are very safe. Whether you need to control heat in a big factory or a small workshop, our Eurotherm controllers are ready to help. Check out our variety to find the best one for your needs.

Eurotherm Temperature Controllers – 3200

Input Types: CT, mA, mV, RTD, TC.
IP Rating: IP65, NEMA 12 / NEMA 4X (3216 Only).
Display: Main – 4 digits; Lower – 5/9 character starburst
Control Types: On/Off, PID, VP.
Supply Voltage: 24V dc/ac, 85-264V ac.
Analog Inputs/Outputs: 2 In / 3 Out.
Digital Inputs/Outputs: 3 In / 4 Out.

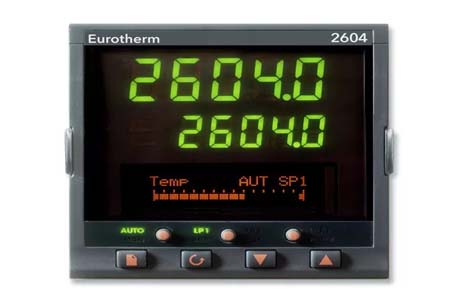

Eurotherm Controller – 2604

Analog Inputs/Outputs: 8 In / 8 Out.
Combinational Logic: 32 Operations.
Digital Inputs/Outputs: 44 In / 43 Out.
Panel Size (DIN): 1/4.
Input Types: mA, mV, RTD, TC, Volts.
Display Type: 2 x 5 Digit LED + 2 line text.
Control Types: On/Off, PID, VP.
Supply Voltage: 24V dc/ac, 85-264V ac.

Temperature Controller Eurotherm – EPC3000

Panel Sizes: 1/16, 1/4, 1/8 DIN.
IP Rating: IP66 (Washdown), IP65 (Standard).
Display: High Visibility LCD, multifunction, model-specific digit configuration.
Voltage: 24V dc/ac, 85-264V ac.
Inputs: TC, PT100/PT1000 RTD, mV, mA, Zirconia.
Analog I/O: Model-specific, up to 2PV, 1CT, 3 DC OP.
Digital I/O: Up to 8 DIO, model-specific configurations.

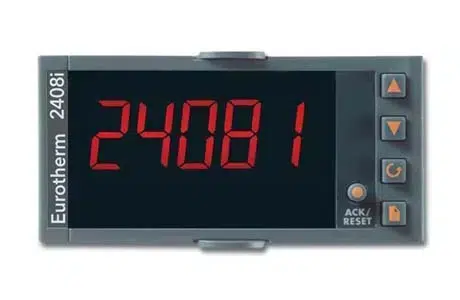

Eurotherm Controllers – 2408i

Input Types: Custom, mA, mV, RTD, TC, Volts.
Panel Size (DIN): 1/8.
IP Rating: IP65.
Display Type: Large 5-digit LED.
Supply Voltage: 24V dc/ac, 85-264V ac.
Number of Alarms: 8.
Number of Relay Outputs: 7.
Digital Inputs/Logic Outputs: 2, expandable to 9/9.

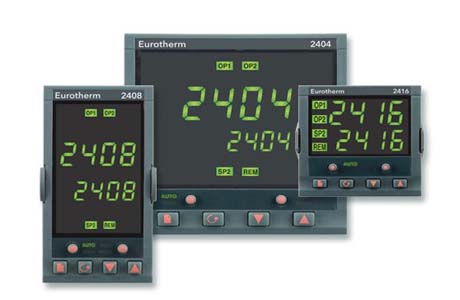

Eurotherm Digital Temperature Controller – 2400

Input Types: mA, mV, RTD, TC, Volts.
Panel Size (DIN): 1/16, 1/4, 1/8.
Display: Dual 4-digit LED.
Control Types: On/Off, PID, VP.
Supply Voltage: 24V DC/AC, 85-264V AC.
Analog Inputs/Outputs: 2 In / 3 Out.
Digital Inputs/Outputs: 11 In / 11 Out.

Eurotherm PID Temperature Controller – 2200

Display: Dual 4-digit LED.
Control Types: On/Off, PID, VP.
Input Types: mA, mV, RTD, TC, Volts.
Panel Size (DIN): 1/16, 1/4, 1/8, DIN rail.
IP Rating: IP65.
Supply Voltage: 85-264V ac.
Analog Inputs/Outputs: 1 In / 1 Out.
Digital Inputs/Outputs: 3 In / 4 Out.

At IndMALL, we offer more than just Eurotherm temperature controllers. We understand that sometimes you need a little extra help. That’s why we also provide easy-to-follow manuals for models like the Eurotherm 2208e and 3216. Whether you’re controlling temperatures in industrial settings or need specific details, our eurotherm temperature controller manuals and controllers are here to help. Trust IndMALL for all your Eurotherm needs – we make temperature control easy and reliable.

Frequently Asked Questions

What is a Eurotherm Temperature Controller?

A Eurotherm temperature controller is a device used to manage temperatures. It keeps temperatures at the desired level. These PID controllers are made by a company named Eurotherm. They are commonly used in industries like plastics and heat treatment.

The device works by getting temperature readings. It then compares this to a set temperature. If there’s a difference, it makes adjustments. This ensures the temperature stays consistent.

Using a Eurotherm controller is easy. Many have a ‘QuickStart’ feature for quick setup. This means even if you’re not an expert, you can use it.

In summary, a Eurotherm temperature controller helps maintain the right temperature. It’s user-friendly and widely used in many industries.

What is Eurotherm 3208 Temperature Controller?

The Eurotherm 3208 is a special type of temperature controller. It’s made by the Eurotherm company. This controller helps in managing and maintaining temperatures.

Its design focuses on showing clear readings. This makes it easy to see the current temperature. The 3208 also has features that alert users if temperatures change too much.

One key feature is its ‘Quick Start’ process. This allows users to set it up quickly and easily. No expert knowledge is needed to use it.

In summary, the Eurotherm 3208 is a user-friendly device. It helps to keep temperatures stable and is easy to use.

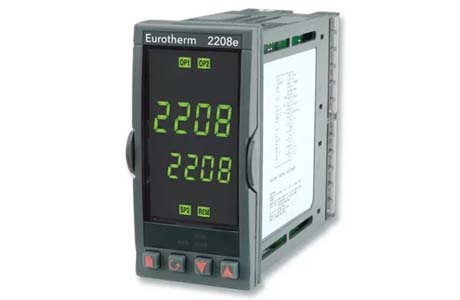

What is Eurotherm 2208e Temperature Controller?

The Eurotherm 2208e is a device that controls temperature. It’s produced by the company called Eurotherm. This device is used to keep temperatures steady.

It’s designed for easy reading and setup. Users can see the temperature clearly on its display. If the temperature changes suddenly, it will give an alert.

The 2208e has a “Quick Start” feature. This means you can set it up without any hassle.

In short, the Eurotherm 2208e helps maintain the right temperature. It’s simple to use and very reliable.

What is Eurotherm 2204e Temperature Controller?

The Eurotherm 2204e is a special device for controlling temperature. It’s made by a company named Eurotherm. This tool ensures temperatures stay just right.

On its screen, users can easily see the temperature. If anything goes wrong, it can sound an alert. This keeps things safe and consistent.

Setting up the 2204e is simple. It has a feature for quick starting. This means getting it working is a breeze.

In summary, the Eurotherm 2204e keeps temperatures steady. It’s user-friendly and trusted by many.

Discover Eurotherm Temperature Controllers at IndMALL and ask for a quote now.
