Keyence Photoelectric Sensor: Diffuse & Retro-reflective
Keyence Photoelectric Sensors offer a range of solutions for industrial applications. These sensors, including the LR-X, LR-T, PZ-G, LR-Z, and PZ-V/M series, are designed for precision and reliability.
They feature various detecting distances, from short-range to up to 40 meters, catering to diverse industrial needs.
With options like green and red laser light sources and both NPN and PNP outputs, these sensors ensure versatility. Quick response times, ranging from 500 µs to 2000 ms, and different spot diameters make them suitable for a wide array of tasks.
At IndMALL Automation, we understand the needs of industrial engineers and offer these Keyence sensors to enhance efficiency and accuracy in various industrial environments.

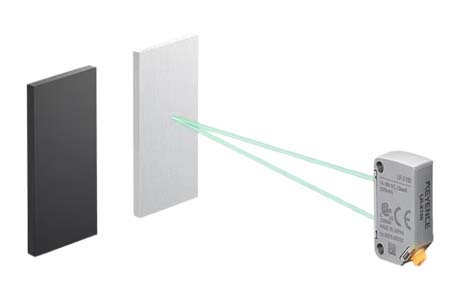

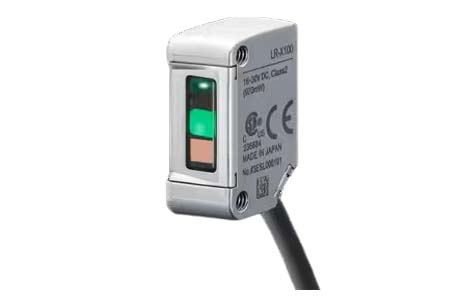

Keyence Photoelectric Sensor: LR-X Series
- Detecting Distance: 25.0 to 250.0 mm.
- Resolution: 0.1 to 2 mm.
- Response Time: 500 μs to 200 ms.
- Light Source: Green laser, Class 1.
- Output: NPN/PNP open collector.
- Power Supply: 16 to 30 VDC, 970 mW consumption.

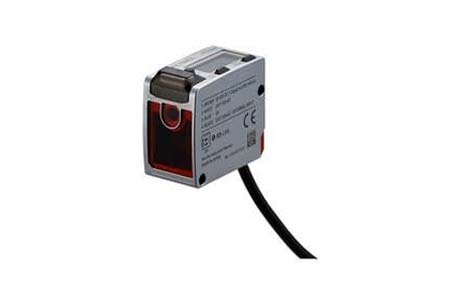

Keyence Reflective Sensor: LR-T Series
- Detectable Distance: 60 to 5000 mm.
- Light Source: Red laser (660 nm), Class 1 and 2 laser products.
- Response Time: Selectable from 1 ms to 2000 ms.
- Control Output: NPN/PNP open collector, selectable.
- Power Voltage: 20 to 30 VDC.
- Current Consumption: 45 to 50 mA (without load).

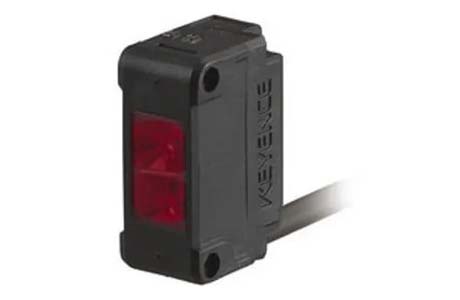

Keyence Diffuse Photo Sensor: PZ-G Series
- Detecting Distance: Up to 40 m, varying by model.
- Spot Diameter: Approx. 2 mm to 5 mm
- Light Source: Red LED, Infrared LED.
- Response Time: 500 µs.
- Operation Mode: LIGHT-ON/DARK-ON
- Control Output: Open collector, 30 V max., 100 mA max.

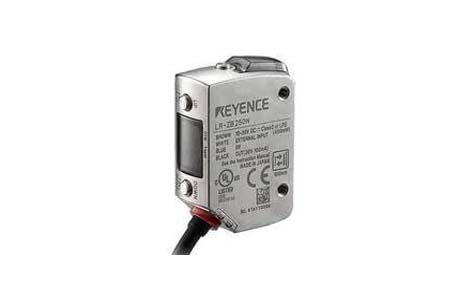

Keyence Reflective Sensors: LR-Z Series
- Detectable Distance: 35 to 500 mm.
- Spot Diameter: Approx. ø3 mm to 2.4 × 1.2 mm.
- Response Time: 1.5 ms / 10 ms / 50 ms selectable.
- Light Source: Red laser (660 nm), Class 1 and 2 laser products.
- Control Output: NPN/PNP open collector, selectable.
- Power Voltage: 10 to 30 VDC.

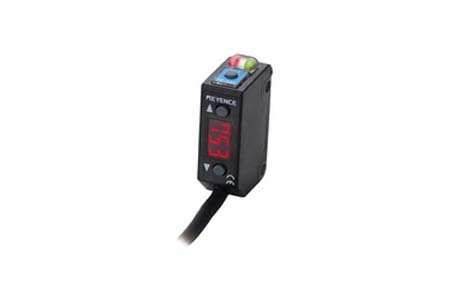

Keyence Photo Sensor: PZ-V/M Series
- Detecting Distance: Up to 10 m, varying by model.
- Setting Distance: 30 to 900 mm, depending on the model.
- Light Source: Red LED, Infrared LED.
- Response Time: 1 to 2 ms max.
- Operation Mode: LIGHT-ON/DARK-ON, switch-selectable.
- Power Voltage: 12 to 24 VDC ±10 %.
IndMALL offers a variety of Keyence Photoelectric Sensors, perfect for many industries. These sensors are easy to use and very reliable. We have Keyence Photo sensor that fit different shapes and sizes, like the Rectangular Photoelectric Sensor.
They work well in tough places and can spot things from far away. Our sensors can tell the difference between many types of materials, making your work accurate and safe.
If you need a Keyence Photoelectric sensor that you can trust and does a great job, our Keyence Photo Sensors are a great choice. They’re made to help you and last a long time.
Product List:
Model No |
Image |
Type |
Output |
Response time |
Power voltage |
Ambient temperature |
|---|---|---|---|---|---|---|

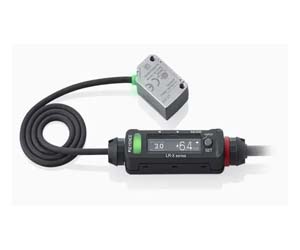

| LR-X50CG |  |
M8 Connector Type*1 | NPN/PNP | 500 μs*1-200 ms | 16 to 30 VDC*3 | −20 to +55°C |

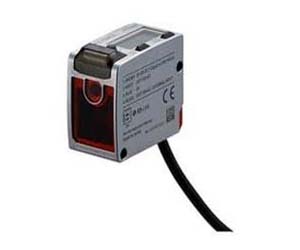

| LR-TB2000 |  |
Cable | NPN/PNP | 1-1000 ms | 20 to 30 VDC | −20 to +55°C |

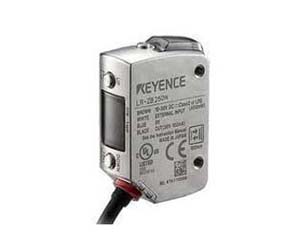

| LR-ZH500N |  |
Distance-based laser sensor | NPN/PNP | 1.5-50 ms | 10 to 30 VDC | -10 to +50 °C |

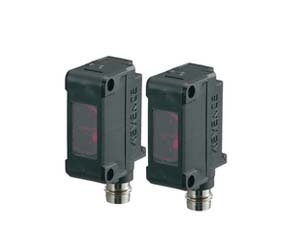

| PZ-G51CN |  |
ThrubeamStandard | NPN | 500 µs | 10 to 30 VDC | -20 to +55 °C |

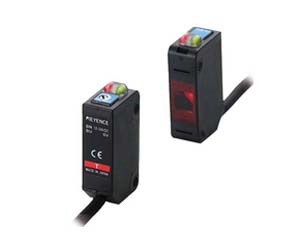

| PZ-M51P |  |
Thrubeam | PNP | 1.5 ms | 12 to 24 VDC | -20 to +55 °C |
We offer a wide range of Keyence Photoelectric Sensors. These include different models for various power needs and uses.
- The LR-X50CG model features an M8 Connector Type with NPN/PNP output and a response time of 500 μs to 200 ms. It operates on a power voltage of 16 to 30 VDC and can function in ambient temperatures ranging from -20 to +55°C.
- The LR-TB2000, with a cable connection, offers NPN/PNP output and a response time between 1 and 1000 ms. It requires a power voltage of 20 to 30 VDC and operates within the same temperature range as the LR-X50CG.
- The LR-ZH500N, a distance-based laser sensor, provides NPN/PNP output and a response time of 1.5 to 50 ms. It works on a power voltage of 10 to 30 VDC and is suitable for temperatures from -10 to +50 °C.
- The PZ-G51CN, a thru beam standard sensor, comes with NPN output and a 500 µs response time, functioning on a power voltage of 10 to 30 VDC in temperatures ranging from -20 to +55 °C.
- The PZ-M51P model, also a thrubeam sensor, offers PNP output, a 1.5 ms response time, and operates with a power voltage of 12 to 24 VDC, suitable for the same temperature range.
Frequently Asked Questions
Where are photoelectric sensors used?
Photoelectric sensors are used in various industries like automotive, food, transportation, and material handling. They help detect different materials including metal, plastic, and wood. These sensors are even capable of detecting clear items such as glass, plastic, and liquids, depending on the sensor type. This makes them versatile for many applications.
What is the voltage of photoelectric sensor?
Photoelectric sensors usually work with a voltage range from 5V to 24V DC. This means they need at least 5 volts to operate but can handle up to 24 volts. They are designed to work within this voltage range for optimal performance.
What is the size of photoelectric sensor?
Photoelectric sensors come in various sizes to fit different needs. They range from small, compact sizes to larger ones. Common sizes include 4mm, 5mm, 8mm, 12mm, 18mm, and 30mm. These sizes refer to the sensor’s diameter or dimensions, making them versatile for different applications.
If you need more information about the Keyence Photoelectric Sensors, please don’t hesitate to reach out to us.
