Delta Photoelectric Sensor: Rectangular Photo Sensors
Looking for a good Delta photoelectric sensor? Check out what IndMALL has to offer! We have a variety of Delta brand sensors, perfect for different needs. You can choose from Through-beam sensors, Diffuse sensors, and Retro-reflective sensors. Plus, we have different shapes like flat, cylindrical, lateral, and rectangular.
We promise great prices, even better than what official Delta electronics sellers offer in Hyderabad, Bangalore, Pondicherry, Chennai, Coimbatore, and across India.
Delta Photo Sensor Specifications:
Voltage Range:
- 12 to 24 VDC ±10%
Number of Outputs:
- Options: NPN x 1, PNP x 1, or Push-Pull x 1
Output Characteristics:
- Flat & Lateral Types: Max. 30 V / 50 mA, Residual Voltage 1.5 V
- Rectangular & Cylindrical Types (including New Rectangular): Max. 30 V / 100 mA, Residual Voltage Range 1.5 V
Response Time:
- ON to OFF: 0.5 ms
- OFF to ON: 0.5 ms
Light Source:
- Red LED (630 nm) with 4 elements
- Infrared LED (850nm)
Protection Circuit:
- Reverse power connection
- Output overcurrent
- Power supply surges
- Output surges
Operational Temperatures:
- Operating: -25 ºC to 55 ºC
- Storage: -25 ºC to 75 ºC
Materials:
- Lens: PC (Polycarbonate)
- Case: PBT (Polybutylene Terephthalate)
Cables:
- Rectangular Type: 3-wire 2M PVC cable, M8 connector (200mm cable)
- New Rectangular Type: 4-wire 2M PVC cable, M8 connector
- Flat Type: 3-wire 2M PVC cable, M8 connector (200mm cable)
- Lateral Type: 4-wire 2M PVC cable, M8 connector (200mm cable)
- Cylindrical Type: 4-wire 2M PVC cable, M12 connector
- For Through Beam Transmitters: 2-wire 2M PVC cable
Dimensions:
- Flat Type: 16 × 30 × 6.8 mm
- Lateral Type: 14 x 27 x 7 mm
- Cylindrical Type: M18, Length 50mm
- Rectangular Type: 32.8 × 11.2 × 21.1 mm
- New Rectangular Type (with TEACH button): 32.8 x 11.2 x 17mm
Product List:
Model No |
Image |
Sensing Method |
Sensing Distance |
Output |
Light Source |
Connection Method |
|---|---|---|---|---|---|---|

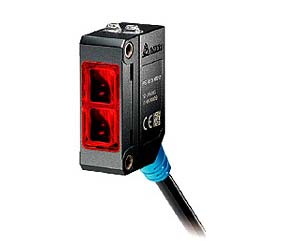

| PS-RR9-NS12 |  |
Reflective, Diffuse | 1m | NPN | Green LED, Orange LED | Cable |
| PSRL4PS12 |  |
Retroreflective | 4.2 m | PNP/Push Pull | – | Cable |

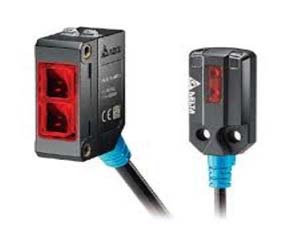

| PS-RR3-US22 |  |
Reflective, Diffuse | 300mm | PNP/Push Pull | Green LED, Orange LED | Cable |

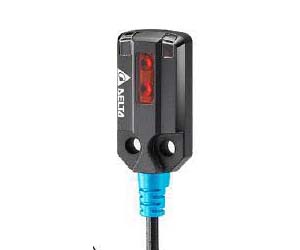

| PS-FB1-NDB2 |  |
Reflective, Diffuse | 5mm ~ 30mm | NPN – Dark-ON | Green LED, Orange LED | Cable |
| PS-ML4-US22 |  |
Retroreflective | 4m | Push-Pull | Green LED, Orange LED | Cable |
Frequently Asked Questions
What does a photo sensor detect?
Photoelectric sensors detect objects and changes in surfaces by analyzing light. They use a light emitter to send signals and a receiver to catch them. This setup helps in identifying different materials or objects efficiently.
What is photoelectric type detector?
A photoelectric type detector uses a light beam to sense smoke presence. It’s particularly effective in detecting smoldering fires, like a burning cigarette. This technology triggers an alarm faster for slow-burning, smoky fires.
Where is photoelectric used?
Photoelectric technology is widely used in various applications. It’s key in solar panels, where light hitting metal surfaces generates electricity. This principle is also applied in safety and manufacturing, for detecting objects and changes in environment. It’s essential in automation and security systems.
For more information about our Delta Photoelectric Sensor please contact us at IndMALL.
