Pepperl Fuchs Junction Blocks: P&F Junction Block

If you are searching for Pepperl Fuchs Junction Blocks? IndMALL Automation offering P&F Junction Blocks with M8 and M12 connectors are available and feature large socket spacing or offset sockets.

Available Specifications in Junction Blocks

Input connection: Male single-ended cordset M12, M23, Master cable, and Terminal compartment.
Outputs connection: M8 and M12.
Number of outputs: 4, 6, 8, and 8, double assigned.
Output: Number of poles: 3, 4, and 5.

P&F V1-4A-E2-5M-PUR

V1-4A-E2-5M-PUR

Operating voltage: 24 V DC, max. 30 V DC
Operating current: ≤ 5 mA per channel indication element
Connection type: 4 x socket M12 x 1 4-pin Master cable
Material Cable: PUR
Cable Length: 2m

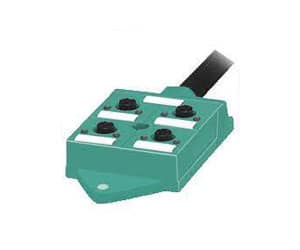

P&F V1-4A-E2-5M-PUR

V1-4A-E-5M-PUR

Operating voltage: 24 V DC, max. 30 V DC
Operating current: ≤ 5 mA per channel indication element
Connection type: 4 x socket M12 x 1 4-pin Master cable
Material Cable: PUR
Cable Length: 5m

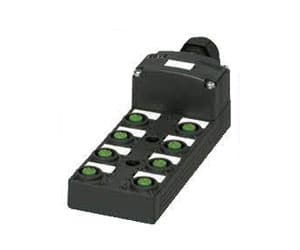

P&F V1-8-16A-E2

V1-8/16A-E2

Operating voltage: max. 24 V DC -20 % / +25 %
Operating current: ≤ 5 mA per channel indication element
Connection type: 8 x socket M12 x 1 5-pin 1 x terminal compartment
Material Cable: PBT
Cable Length: 7 mm … 12 mm

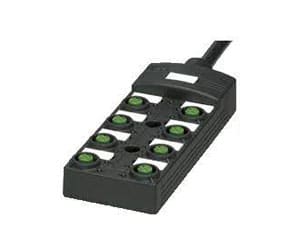

P&F V1-8-16A-E2-5M-PUR

V1-8/16A-E2-5M-PUR

Operating voltage: max. 24 V DC -20 % / +25 %
Operating current: ≤ 5 mA per channel indication element
Connection type: 8 x socket M12 x 1 5-pin Master cable
Material Cable: PUR
Cable Length: 5 m

P&F V3-4A-E2-5M-PUR

V3-4A-E2-5M-PUR

Operating voltage: 24 V DC, max. 30 V DC
Operating current: ≤ 5 mA per channel indication element
Connection type: 4x M8, socket, screw connection
Material Cable: PUR
Cable Length: 5 m

P&F V3-4A-E2-V19

V3-4A-E2-V19

Operating voltage: 24 V DC, max. 30 V DC
Operating current: ≤ 5 mA per channel indication element
Connection type: 4x M8, socket, screw connection
Connection: Plug
Connector: M12

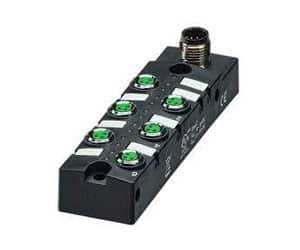

P&F V3-6A-E2-V19

V3-6A-E2-V19

Operating voltage: 24 V DC, max. 30 V DC
Operating current: ≤ 5 mA per channel indication element
Connection type: 6x M8, socket, screw connection
Connection: Plug
Connector: M12

V3-8A-E2-5M-PUR

V3-8A-E2-5M-PUR

Operating voltage: 24 V DC, max. 30 V DC
Operating current: ≤ 5 mA per channel indication element
Connection type: 6x M8, socket, screw connection
Connection: Plug
Connector: M12

P&F Related Products

Leuze Photoelectric Sensor

Ultrasonic Sensor

Leuze Ultrasonic Sensor

Magnetic Sensor

Leuze Fiber Optic Sensor

Fiber Optic Sensor

Leuze Distance Sensor

People Also Ask

What is a 4 Way Junction Box?

A 4-way junction box is an electrical fitting used to connect and protect wire junctions in a circuit. It typically has four openings, allowing wires to enter from different directions, facilitating the branching of electrical circuits. It’s essential for organizing and safely securing wire connections in residential and commercial installations.

What Wires are in J Box?

In a junction box (J box), you’ll typically find live (hot), neutral, and ground wires. These wires are connected to facilitate the distribution of power and ensure safe operation within electrical circuits.

The box serves as a protective enclosure for wire splices or connections, adhering to electrical codes for safety.

What is DC Junction Box?

A DC junction box is designed for direct current (DC) electrical circuits, commonly used in solar panel installations, telecommunications, and other DC-powered systems. It houses and protects wire connections, ensuring safe and efficient distribution of DC power.

The box also facilitates easier maintenance and troubleshooting by organizing the circuit connections.
