Pepperl Fuchs Inclination Sensor:
Pepperl Fuchs offers a range of Inclination Sensors for all industrial Applications. IndMALL Automation or Challaturu Engineering & Automation Pvt Ltd supplies Pepperl Fuchs Inclination Sensors including the F99 series with a two-piece mounting concept or the one-piece F199. P&F Inclination sensors are extremely rugged and suited for harsh outdoor conditions.
INX360D-F99-I2E2-5M
- Measurement Range: 0 … 360 °
- Operation indicator: LED, green
- Operating voltage: 10 … 30 V DC
- Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected
- Connection type: 5 m, PUR cable 5 x 0.5 mm2
INX360D-F99-I2E2-V15
- Measurement Range: 0 … 360 °
- Operation indicator: LED, green
- Operating voltage: 10 … 30 V DC
- Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected
- Connection type: 5-pin, M12 x 1 connector
INX360D-F99-U2E2-5M
- Measurement Range: 0 … 360 °
- Operation indicator: LED, green
- Operating voltage: 10 … 30 V DC
- Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected
- Connection type: 5 m, PUR cable 5 x 0.5 mm2

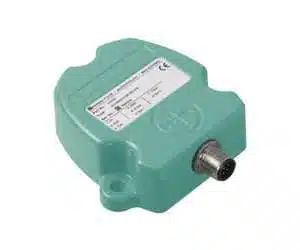

INX360DH-F199-B16-V15
- Measurement Range: 0 … 360 °
- Operation indicator: dual-LED, green/red
- Operating voltage: 10 … 30 V DC
- Output Driver: transceiver according ISO 11898, galvanically isolated by means of photocouplers
- Connection type: 5-pin, M12 x 1 connector , A-coded
INY030D-F99-2I2E2-V17
- Measurement Range: -15 … 15 °
- Operation indicator: LED, green/red
- Operating voltage: 10 … 30 V DC
- Output Type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected
- Connection type: 8-pin, M12 x 1 connector

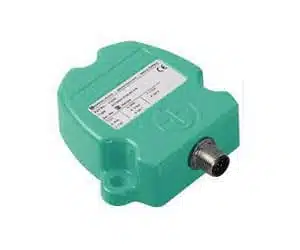

INY160DH-F199-IE2-V19
- Measurement Range: ± 80 °
- Operating Voltage: 10 … 30 V DC
- Output Type: current output 4 … 20 mA
- Connection Type: 8-pin, M12 x 1 connector , A-coded
- Housing material: aluminum, corrosion-resistant
People Also Ask
How does the Inclination Sensor Work?
Inclination sensors measure tilt angles relative to the earth’s surface using gravity. They contain accelerometers or gyroscopes that detect changes in angular position. By analyzing these changes, the sensor calculates the inclination angle.
This technology is used in various applications, from construction equipment leveling to smartphone screen orientation and aircraft flight controls.
What is the Measurement of Inclination?
Inclination measures how much an object tilts from the horizontal or vertical, crucial in construction, surveying, and technology for ensuring accuracy and stability.
What is the SI Unit of Angle of Inclination?
What is the Inclination Sensor Used for?
Please share your Pepperl Fuchs Inclination Sensor Requirement with sales@indmall.in
