Panasonic Servo Motors: AC Servo Drives
If you are looking for Panasonic Servo Motors or Panasonic servo drives? IndMALL Automation offers economical prices for Panasonic AC servo motors and AC servo drives compared to Panasonic dealers or Panasonic distributors.
Our lineup features the MINAS A6 Family, known for its compact power and efficiency. We also offer the high-speed A6S Series for enhanced precision and the A6B Series with EtherCAT support for superior networked control. We also offer the A6L Series, ideal for linear and direct drive motor control, and the E Series, known for its compact design and user-friendly features. Each series is designed to meet diverse industrial needs, ensuring optimal performance, safety, and ease of use for our clients.
Panasonic Servo Motors: MINAS A6 Family
- Power Range: 50 W to 22 kW.
- Input Voltage: DC 24 V/48 V, AC 100 V/200 V/400 V.
- Encoder: 23-bit Absolute/Incremental, battery-less options.
- Frequency Response: 3.2 kHz.
- Design: Compact, lightweight, powerful.
- Positioning: Enhanced detecting resolution.
- Maintenance: High dust-proof, heat-resistant oil seal.
- Protection: IP67 rating for select models.
Panasonic Servo Motor: MINAS A6S Series
- Input Power: 100 V (single phase) and 200 V (single/3-phase).
- Operating Conditions: Temperature 0°C to 55°C, Humidity 20% to 85% RH, Altitude below 1000 m.
- Control Method: IGBT PWM Sinusoidal wave drive.
- I/O Connectivity: 10 general purpose inputs, 6 outputs, analog and pulse signal support.
- User Interface: 5 keys, 6-digit LED display.
- Regeneration and Dynamic Brake: Varies by frame size.
- Control Modes: Position, Speed, Torque, Full-closed type.
Panasonic Motors: MINAS A6N Series
- Drive Power Supply: 1-phase 100 to 120 VAC; 1 or 3-phase 200 to 240 VAC; 3-phase 200 to 240 VAC; 3-phase 380 to 480 VAC.
- Motor Rated Output: Ranges from 50 W to 22 kW across various frame sizes (A to H).
- Model Variations:
–Different models for each power supply and motor output category.
–Specific model numbers for each frame size and power range.
Panasonic AC Servo Motor: MINAS A6B Series
- Power Supply: 1-phase 100-120 VAC, 1/3-phase 200-240 VAC, 3-phase 380-480 VAC.
- Motor Output: 50 W to 22 kW, multiple frame sizes (A to H).
- EtherCAT Communication: High-performance, 3200 Hz frequency response, 100 Mbps speed.
- Control Modes: 7 modes, real-time auto-tuning, anti-vibration filters.
- Features: Supports various control methods, compatible with PC-based controllers.
- Operability: Compact design, PANATERM software support, lifespan and deterioration diagnostics.
Panasonic AC Servo Motors: MINAS A6L Series
- Power Supply Options:
–1-phase 100 to 120 VAC.
–1 or 3-phase 200 to 240 VAC.
–3-phase 200 to 240 VAC.
–3-phase 380 to 480 VAC. - Motor Rated Current: Ranges from 1.2 Arms to 80.2 Arms, depending on the model.
- Motor Max. Current: Varies from 3.7 Arms to 207.9 Arms, based on the model.
- EtherCAT Communication: High-performance, 3200 Hz frequency response, 100 Mbps speed.
- Control Modes: 7 modes, real-time auto-tuning, anti-vibration filters.
Panasonic Servo Drive: MINAS LIQI Series
- Power Range: 50W to 1kW, single-phase 200V.
- Pulse Train Input: Supports up to 500kpps for simple positioning control.
- Response Frequency: 1kHz for quick response and low vibration.
- Setup: Via PANATERM software using USB.
- Filters: Damping and notch filters for vibration suppression.
- Motor Types: Compatible with 3-phase cored/coreless, shaft motor, and DD motor.
- Scale Support: Serial communication incremental/absolute and A/B/Z phase pulse scale.
IndMALL Automation offers a comprehensive range of Panasonic Servo Motors, renowned for their precision and efficiency. Our Panasonic servo motor and Panasonic servo drive lineup cater to various industrial needs, ensuring optimal performance. The Panasonic motor series, including AC servo motors, is designed for high precision and durability.
We provide an extensive AC servo motor price list, making it easy for customers to choose the right product within their budget. Our Panasonic motors and AC servo drives are known for their reliability and advanced technology. Our AC servo and AC servo driver products and the AC servomotor and AC servos are part of our diverse offerings.
The Panasonic servo motors, including the pansonic driver and AC servo controller, are perfect for industrial applications. At IndMALL Automation, we ensure that our Panasonic driver and Panasonic servo motors meet the highest standards, providing efficient and reliable solutions for all your servo motor needs.
Product List:
| Model No | Image | Type | Output | Power Supply | Encoder | Shaft |
|---|---|---|---|---|---|---|

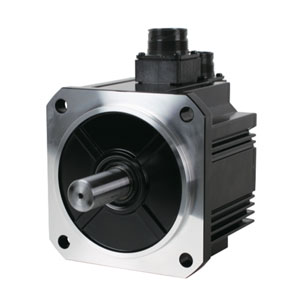

| MDMF102L1C8 |  |
MDMF | 1.0 kW | 200 V |
32 bit Absolute
|
Shaft:Round |
| MDMF102L1D7 |  |
MDMF | 1.0 kW | 200 V | 32 bit Absolute | Shaft:Round |
| MDMF102L1C6 |  |
MDMF | 1.0 kW | 200 V | 32 bit Absolute | Shaft:Round |
| MDMF102L1C7 |  |
MDMF | 1.0 kW | 200 V | 32 bit Absolute | Shaft:Round |
Frequently Asked Questions
What is AC Servo Motor?
An AC servo motor is a rotary actuator that allows for precise control of angular position, velocity, and acceleration. It consists of a suitable motor coupled to a sensor for position feedback. AC servo motors are commonly used in industrial applications, robotics, and CNC machinery. They offer high performance, efficiency, and precise motion control.
Which servo motor is best AC or DC?
Both AC and DC servo motors have their merits, but AC servo motors tend to outshine in several aspects. AC servo motors provide greater torque relative to their weight, ensuring better efficiency and reliability.
Furthermore, the absence of a commutator in AC motors means reduced radio frequency interference and a notable decrease in maintenance requirements. This characteristic also grants AC servo motors a longer lifespan compared to their DC counterparts.
Why servo motors are best?
Servo motors stand out due to their precise control over angular or linear position, velocity, and acceleration. Their design is compact, yet they deliver significant power, making them a favorite in many industries.
Beyond their power capabilities, servo motors are lauded for their exceptional energy efficiency, ensuring that they provide optimal performance without excessive energy consumption. This combination of precision, power, and efficiency underscores why servo motors are often regarded as the best choice for many applications.
How do I choose a servo?
When it comes to selecting the right servo motor for a specific application, a few key factors are paramount. Firstly, it’s crucial to have a clear understanding of the application’s specifications and requirements. From there, one must consider the peak torque, which is the maximum torque the motor will need to deliver during its most demanding moments.
Additionally, the continuous torque and speed the motor is expected to maintain under regular operation play a significant role in the selection process. The intricate relationship between torque and speed is a pivotal aspect to keep in mind, as striking the right balance ensures the servo motor operates efficiently and effectively.
Choose IndMALL Automation for reliable Panasonic Servo Motors & AC Servo Drives solutions.
