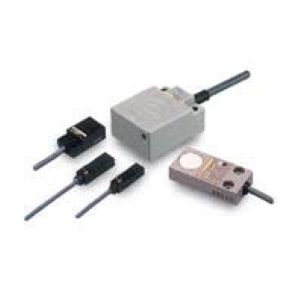

Omron TL-W5E1 2M Proximity Sensor
The Omron TL-W5E1 2M Proximity Sensor offers Flat Inductive, Shielded, 5 mm Sensing distance, DC 3-wire NPN NO, Pre-wired 2 M Cable , 12 to 24 VDC Power supply voltage, IP67 Protection. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron TL Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | TL-W5E1 2M |
Omron TL-W5E1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Flat Inductive |
| Sensing Distance | 5 mm |
| Setting Distance | 0 to 4 mm |
| Output Configuration | DC 3-wire NPN |
| Operation Mode | NO |
| Connection | Pre-wired 2 M Cable |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 18 Γ 18 Γ 1 mm |
| Response Frequency | 300 Hz min. |
| Current Consumption | 15 mA max. at 24 VDC (no-load) |
| Control Output Load Current | 200 mA |
| Indicator | Detection indicator (red) |
| Protection Circuit | Reverse polarity protection, Surge suppressor |
| Ambient Temperature Range | Operating/Storage: β25 to 70Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% (with no condensation) |
| Material | Aluminum die-cast, Heat-resistant ABS |
| Degree Of Protection | IP67 |
| Weight | Approx. 100 g |
The Omron TL-W5E1 2M is typically considered together with other sensors in the TL-W Flat Inductive Proximity Sensor family because they follow similar mounting patterns, supply ranges, and adjustment behaviour. In practice, engineers often review related models such as Omron TL-W5MD1 2M (Flat Inductive, 5 mm sensing, Unshielded, DC 2-Wire, NO, Pre-wired 2 M Cable), Omron TL-W5MC1 5M (Flat Inductive, 5 mm sensing, Unshielded, DC 3-wire NPN, NO, Pre-wired 5 M Cable), and Omron TL-W5MD2 2M (Flat Inductive, 5 mm sensing, Unshielded, DC 2-Wire, NC, Pre-wired 2 M Cable) when selecting the most suitable variant for a tank, chute, conveyor, or compact fixture location. Comparing type, usable sensing distance, mounting style, output configuration, switching mode, and connection method helps match each sensor to the available mechanical space and wiring layout. The TL-W5E1 2M fits naturally into panels, machine frames, dosing systems, and process equipment where a robust Omron Flat Inductive Proximity Sensor is required for repeatable switching in industrial environments.
