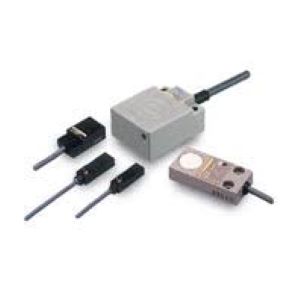

Omron TL-W5MC1 2M: Proximity Sensor 12VDC
The technical specifications for the Omron TL-W5MC1 2M Proximity Sensor 12VDC:
- Sensing head size: 18 mm x 10 mm x 30.5 mm
- Shape: Flat type
- Mounting type: Unshielded
- Sensing distance: 5 mm
- Power source: DC 3-wire models
- Connection method: Pre-wired models (2 m)
- Power supply voltage: 12 to 24 VDC
- Output type: NPN open collector
- Operation mode: NO
Omron TL-W5MC1 2M Proximity Sensor 12VDC Technical Specifications:
| Sensing head size | 18 mm x 10 mm x 30.5 mm |
| Type | Unshielded |
| Shape | Flat type |
| Sensing Distance | 5 mm |
| Power Source | DC 3-wire models |
| Connection Method | Pre-wired models (2 m) |
| Operation mode | NO |
| Output type | NPN open collector |
| Differential distance | 10% max. of sensing distance |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard Sensing Object | Iron 18 x 18 x 1 mm |
| Power Supply Voltage | 12 to 24 VDC ripple (p-p) 10% max. |
| Response frequency | 500 Hz (Average value) |
| Indicator | Detection indicator (red) |
| Protective circuit | Reverse polarity protection Surge suppressor |
| Ambient temperature (Operating) | -25 to 70 ℃ |
| Ambient humidity (Operating) | 35 to 95% RH |
| Voltage influence | ±2.5% max. of sensing distance at the rated voltage in the rated voltage ±10% range |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Material Case | Heat-resistant ABS resin |
If you’re in the market for the Omron TL-W5MC1 2M Proximity Sensor suitable for 12VDC. You’ve found the right place. This sensor is dimensions of 18 mm x 10 mm x 30.5 mm, unshielded, mounting, sensing distance of 5 mm, DC three-wire model, 2-meter pre-wired connection, NPN open collector output, NO (normally open) mode, ensuring reliable performance. For those concerned about cost, IndMALL Automation offers the Omron Flat Inductive Proximity Sensor at very competitive prices, ensuring you get great value for your purchase.
