Omron Proximity Sensors: Inductive & Capacitive Switch
Are you looking for Omron Proximity Sensors in Chennai? that include an Omron inductive proximity sensor or an Omron capacitive proximity sensor?, Then you are in the right place, IndMALL Automation offers Omron 2 types of Proximity Sensors like Omron Inductive Sensor and Omron Capacitive Sensors. We can assure our Omron proximity sensor prices are better than Authorized Omron Distributors or Omron Dealers in Chennai, Bangalore, and Hyderabad, India.

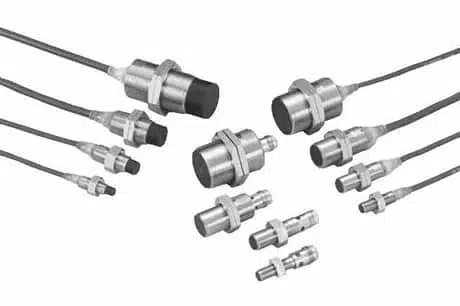

Omron Inductive Proximity Sensors
Omron Inductive Sensors or Omron Inductive Proximity sensors are Ideal for detecting metallic objects. It includes the Omron m8 proximity sensor, Omron m12 proximity sensor, Omron m18 proximity sensor, and omron m30 proximity sensor. It offer a robust solution for your metal-sensing needs. For specialized applications, the Omron long range proximity sensor extends your sensing capabilities, while the Omron high temperature proximity sensor withstands challenging temperature conditions.

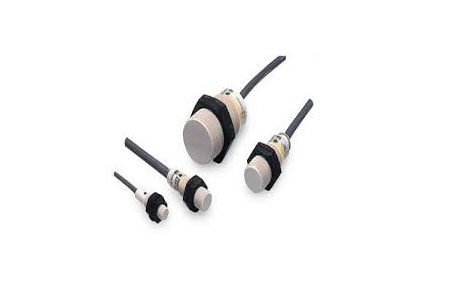

Omron Capacitive Proximity Sensors:
Omron capacitive sensor will be used for non-metallic materials detection. Omron Capacitive Proximity Sensors provide the necessary sensitivity for precise detection. These sensors, including the versatile Omron E2K proximity sensor, are designed to cater to a variety of industrial scenarios.

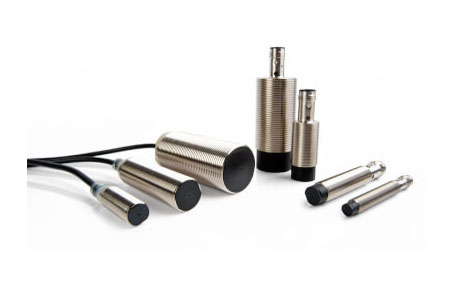

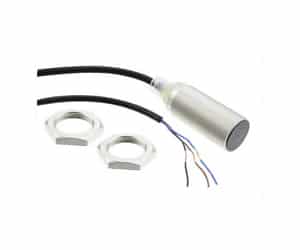

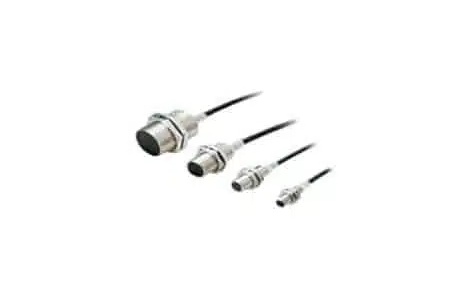

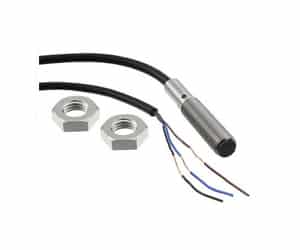

Omron Cylindrical Proximity Sensor: E2B Series
- Mounting Type: Non-flush, flush, quasi-flush.
- Sensing Distance: Ranges from 2 mm to 16 mm.
- Output Type: NPN, PNP; Cable Specifications: PVC.
- Operation Mode: NO (Normally Open), NC (Normally Closed).
- Connection Method: Connector M12, Cable.
- Material Housing: Brass, nickel-plated.
- Overall Length: Ranges from 47 mm to 74 mm.
- Degree of Protection: IP67.
Omron Inductive Sensors: E2A Series
- Mounting Type: Flush and non-flush.
- Sensing Distance: Ranges from 1 mm to 16 mm.
- Output Type: NPN, PNP; Cable Specifications: PVC.
- Operation Mode: NO (Normally Open), NC (Normally Closed).
- Connection Method: Connector M12, Cable.
- Material Housing: Stainless steel.
- Overall Length: Ranges from 39 mm to 72 mm.
- Degree of Protection: IP67/IP69K.

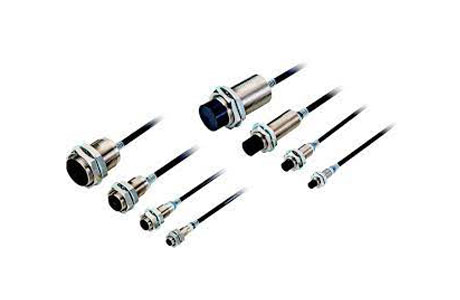

Omron Inductive Proximity Sensor: E2E-NEXT Series
- Mounting Type: Flush, non-flush.
- Sensing Distance: Up to 10 mm.
- Output Type: IO-Link, PNP.
- Operation Mode: NO (Normally Open).
- Connection Method: Cable, Connector M12.
- Material Housing: Brass, nickel-plated.
- Overall Length: Ranges from 47.1 mm to 82.3 mm.
- Degree of Protection: IP67/IP67G/IP69K.

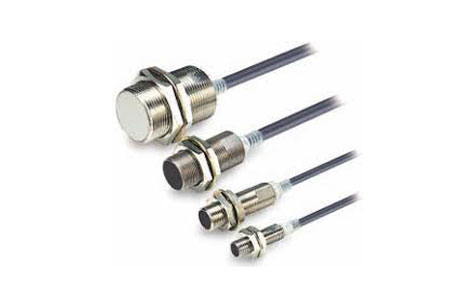

Omron Proximity Sensor: E2E Series
- Sizes: M8, M12, M18, M30.
- Types: Shielded and unshielded models.
- Sensing Distance: Ranges from 1.5 mm to 20 mm.
- Power Supply Voltage: 12 to 24 VDC, 24 to 240 VAC.
- Control Output: Load current up to 100 mA.
- Response Frequency: Varies from 25 Hz to 1.5 kHz.
- Indicators: Operation indicator (red), and some models feature a setting indicator (green).
- Operation Mode: NO or NC, depending on the model.
- Connection Method: Pre-wired and connector models.

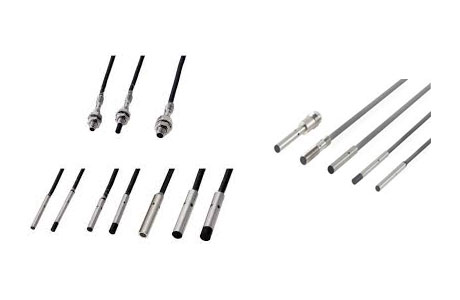

Omron Proximity Sensors: E2E (Small-Diameter)
- Size Options: 3 mm, 4 mm, 5.4 mm, 6.5 mm, M4, M5 diameters.
- Types: Shielded and unshielded models.
- Sensing Distance: Ranges from 0.8 mm to 4 mm, depending on the model.
- Power Supply Voltage: 10 to 30 VDC.
- Current Consumption: 10 mA max.
- Control Output: Load current up to 200 mA max.
- Response Frequency: Varies from 2 kHz to 5 kHz.
- Ambient Temperature Range: Operating and storage: -25 to 70°C.

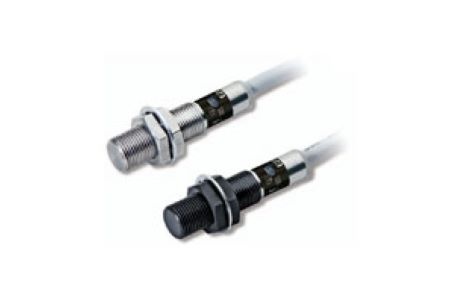

Omron Proximity Sensors: E2EF Series
- Housing: All-stainless steel body and tightening nut for high durability
- Types: Shielded and unshielded cylindrical types
- Sizes Available: M8, M12, M18, M30 threaded cylindrical types
- Sensing Distances: 1.5 mm, 2 mm, 4 mm, 5 mm, 8 mm, 10 mm, 15 mm
- Output Type: NPN or PNP open collector
- Power Supply: 12 to 24 VDC ±10%
- Connection Method: Pre-wired cable or M12 connector type

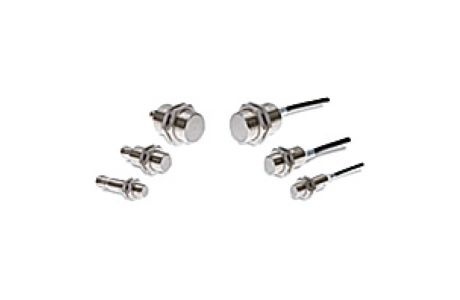

Omron Proximity Sensors: E2EH Series
- Sensor Type: Shielded cylindrical models
- Size: M12, M18, M30 thread sizes
- Sensing Distances: 3 mm, 7 mm, 12 mm
- Output Configuration: NPN or PNP open collector
- Circuit Types: Available in DC 2-wire and DC 3-wire models
- Connection Options: Pre-wired cable and M12 connector types
- Protection Rating: IP67 (IEC standard compliant)

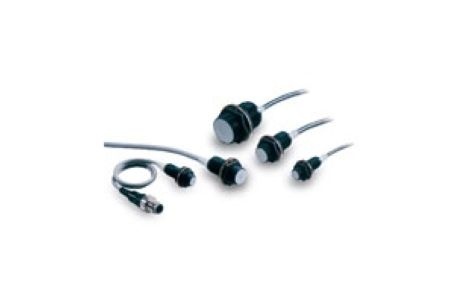

Omron Spatter-resistant Proximity Sensor: E2EQ Series
- Body Material: Fluororesin-coated stainless steel
- Cable: Spatter-resistant, heat-resistant cable
- Mounting Style: Shielded sensors
- Size Variants: M12, M18, M30
- Sensing Distances: 3 mm, 4 mm, 7 mm, 8 mm, 10 mm, 15 mm
- Output Type: DC 2-wire, Normally Open (NO)
- Connection Options: Pre-wired cable or M12 connector

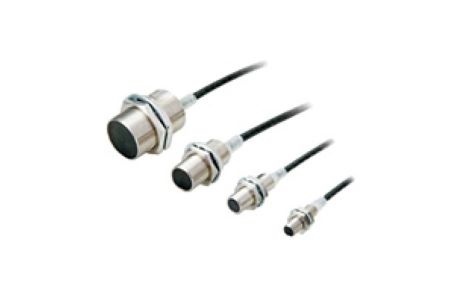

Omron Oil-Resistant Proximity Sensors: E2ER/E2ERZ Series
- Mounting Style: Shielded cylindrical sensors
- Size Variants: M8, M12, M18, M30
- Sensing Distances: 2 mm, 3 mm, 7 mm, 10 mm, 8 mm
- Output Types: NPN or PNP open collector
- Operation Modes: Normally Open (NO) / Normally Closed (NC)
- Cable Type: Fluororesin-insulated, 2 m pre-wired (oil-resistant)
- Connector Type: M12 Smartclick with 0.3 m cable
- Operating Temperature: –25°C to +70°C (no icing or condensation)

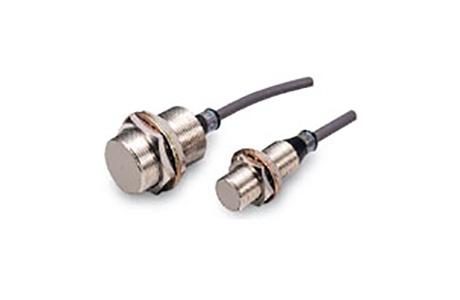

Omron Aluminum-detecting Proximity Sensors: E2EY Series
- Target Material: Designed specifically for aluminum detection
- Body Sizes: M18, M30
- Sensing Distances: 4 mm, 8 mm
- Connection Type: Pre-wired cable (2 m)
- Mounting: Shielded type
- Output configuration: DC 3-wire, NPN NO
- Response Frequency: 70 Hz
- Power Supply: 12–24 VDC (10–30 VDC range)

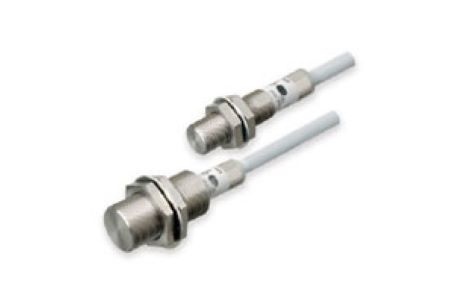

Omron Proximity Sensors: E2FM Series
- Sizes: M8, M12, M18, M30
- Sensing Distance: 1.5 mm, 2 mm, 5 mm, 10 mm
- Mounting: Shielded type
- Output Configuration: NPN or PNP open collector
- Operation Modes: Normally Open (NO) / Normally Closed (NC)
- Circuit Types: DC 2-wire and DC 3-wire models
- Power Supply: 12–24 V DC (10–30 V range)
- Protection: IP67, Ecolab-certified chemical resistance

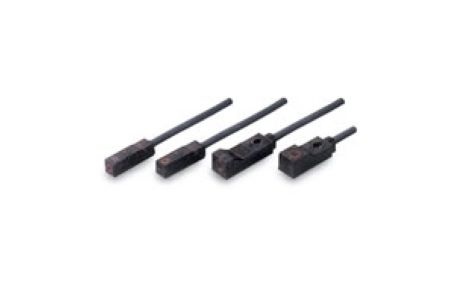

Omron Super-Compact Proximity Sensors: E2S Series
- Sensing Distance: 1.6 mm and 2.5 mm
- Mounting: Unshielded type
- Output Configuration: NPN or PNP open collector
- Operation Modes: Normally Open (NO) / Normally Closed (NC)
- Circuit Types: DC 2-wire and DC 3-wire models
- Power Supply: 12–24 V DC (10–30 V range)
- Response frequency: 1 kHz.

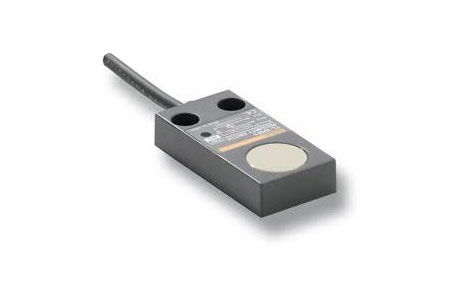

Omron Inductive Sensors: TL-W Series
- Mounting Type: Flush and non-flush options.
- Sensing Distance: Ranges from 1.5 mm to 5 mm.
- Output Type: NPN, PNP, 2-wire DC.
- Operation Mode: NO (Normally Open), NC (Normally Closed).
- Connection Method: Cable, M12 pigtail connector, M8 connector.
- Material Housing: ABS, Aluminium; Cable Specifications: PVC.
- Cable Length: Options include 2 m, 5 m, 0.3 m, 0.26 m.

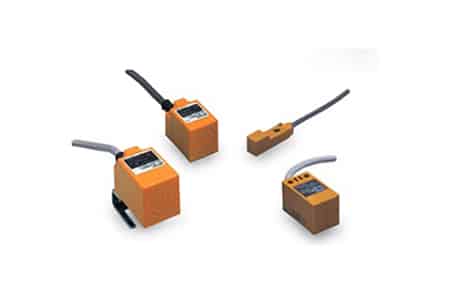

Omron Rectangular Proximity Sensor: TL-N / TL-Q Series
- Sensing Distance: Ranges from 2 mm to 20 mm.
- Set Distance: Varies based on model, up to 16 mm.
- Response Frequency: 10 Hz to 500 Hz, depending on the model.
- Power Supply Voltage: 12 to 24 VDC or 100 to 220 VAC.
- Control Output: Load current up to 200 mA.
- Operation Mode: NO or NC, depending on the model..
- Ambient Temperature Range: Operating/Storage: -25 to 70°C.
- Connection Method: Pre-wired models with standard cable length of 2 m.
Omron Resin-case Proximity Sensor: E2F Series
- Sensing Distance: 1.5 mm to 10 mm.
- Response Frequency: Up to 2 kHz (DC), 25 Hz (AC).
- Voltage: 12-24 VDC (DC models), 24-240 VAC (AC models).
- Output: Up to 200 mA (DC), 5-300 mA (AC).
- Indicators: Red detection/operation indicator.
- Operation Mode: NO or NC.
- Temperature Range: -25 to 70°C.
- Connection: Pre-wired, 2 m cable.

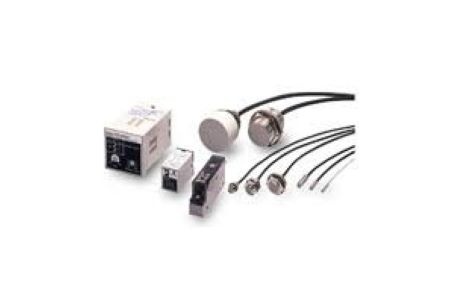

Omron Separate Amplifier Proximity Sensors: E2C / E2C-H
- Sensitivity Adjustment: 4-turn potentiometer on amplifier
- Sensor Head Sizes: 3.5 dia., 3.8 dia., 5.4 dia., 40 dia., M5, M8, M12, M18, M30
- Sensing Distances: 0.8 mm to 50 mm
- Power Supply Voltage: 12 to 24 VDC ±10% (10–30 VDC range)
- Control Output: NPN or PNP open collector output
- Response Frequency: 50 Hz to 1 kHz
- Connection Method: Pre-wired cable or connector
- Operating Temperature: Sensor: –25°C to +55°C, Amplifier: –10°C to +55°C

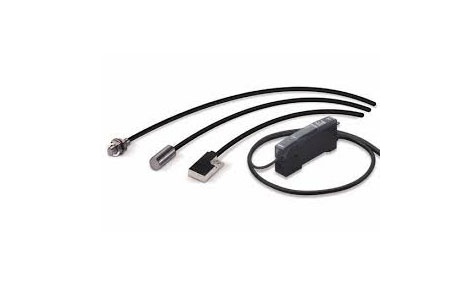

Omron Proximity Sensors: E2CY-SD Series
- Sensor sizes: M5, 5.4 dia, 8 dia, and flat type
- Sensing distance: 1.5 mm, 2 mm, 3 mm
- Mounting: Shielded type
- Output: DC 3-wire NPN or PNP
- Voltage: 12–24 V DC, 100 mA max load
- Response speed: 40 Hz (Fine mode), 100 Hz (Normal mode)
- Features: Sensitivity teaching, OFF-delay timer, diagnostics display
- Applications: Detects aluminum, copper, and other non-ferrous metals

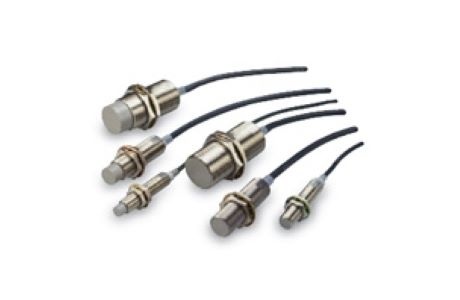

Omron Long-barrel Inductive Proximity Sensor: E2E2 Series
- Sensor sizes: M12, M18, and M30 long-barrel types
- Sensing distance: 2 mm, 3 mm, 5 mm, 7 mm, 8 mm, 10 mm, 14 mm, 18 mm, 20 mm
- Mounting Type: Shielded and Unshielded models.
- Output type: DC 2-wire, DC 3-wire (NPN/PNP), and AC 2-wire options
- Operation Mode: NO (Normally Open), NC (Normally Closed).
- Supply voltage: 12–24 V DC or 24–240 V AC (model-dependent)
- Response speed: Up to 1.5 kHz (for DC models)

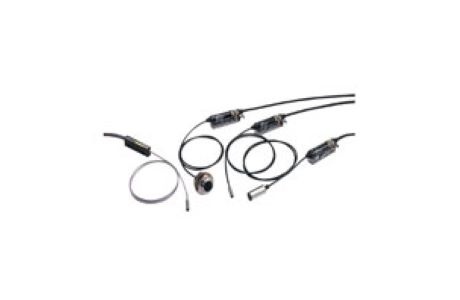

Omron Cable Amplifier Proximity Sensor: E2EC Series
- Sensor sizes: 3 dia., 5.4 dia., 8 dia., and M12 types
- Sensing distance: 0.8 mm, 1.5 mm, 3 mm, 4 mm
- Output type: DC 2-wire (NO/NC) or DC 3-wire (NPN)
- Mounting: Shielded type
- Supply voltage: 12–24 V DC (2-wire) or 5–24 V DC (3-wire)
- Response frequency Up to 1.5 kHz, depending on model
- Indicator: LED on amplifier cable for operation and setting status

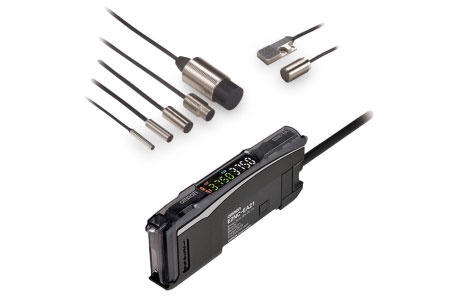

Omron Smart Proximity Sensor: E2NC Series
- Sensor types: 3 dia., 5.4 dia., 8 dia., M10, M12, M18, and flat head options
- Sensing distance: 0.6 mm to 7 mm, depending on the head
- Repeat accuracy: 1 µm to 5 µm for high-precision detection
- Output: NPN/PNP, single or dual output, EtherCAT/CC-Link compatible
- Mounting Type: Shielded, Unshielded, and Heat-Resistant
- Teaching function: Simple sensitivity setting with digital display
- Protection: IP67 sensor head, shock and vibration resistant

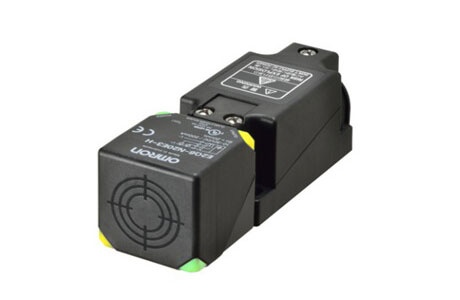

Omron Rectangular Proximity Sensor: E2Q6 Series
- Sensing direction: Adjustable in 5 directions – front, up, down, left, right
- Sensing distance: 20 mm, 30 mm
- Connection method: Terminal block
- Mounting Type: Shielded, Unshielded
- Output type: NPN or PNP with NO + NC (dual output)
- Supply voltage: 10–30 V DC, 200 mA max load
- Response frequency: 150 Hz (20 mm), 100 Hz (30 mm)

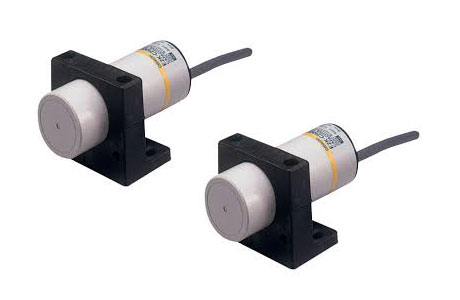

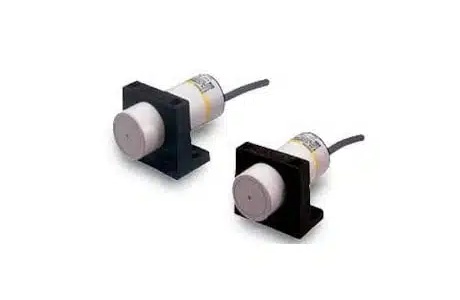

Omron Capacitive Sensors: E2K-C Series
- Sensing Distance: Up to 25 mm, adjustable.
- Response Frequency: 10 Hz to 70 Hz, depending on the model.
- Power Supply Voltage: 12 to 24 VDC or 100 to 220 VAC.
- Current Consumption: 10 mA max (DC models), leakage current varies for AC models.
- Control Output: Load current up to 200 mA.
- Operation Mode: NO or NC, depending on the model.
- Connection Method: Pre-wired models with standard cable length of 2 m.

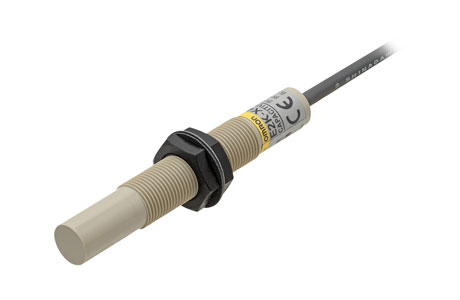

Omron Capacitive Proximity Sensor: E2K-X Series
- Sensing Distance: 4mm ±10%, 8mm ±10%, 15mm ±10%
- Set Distance: 0 to 2.8mm, 0 to 5.6mm, 0 to 10mm
- Power Supply Voltage: E and F Models: 12 to 24 VDC, Y Models: 100 to 220 VAC
- Current Consumption: E and F Models: 15 mA max
- Load Current: E and F Models: 200 mA max, Y Models: 10 to 200 mA
- Ambient Temperature Range: Operating/Storage: -25 to 70°C (E and F Models), -10 to 55°C (Y Models)
- Connection Method: Pre-wired (Standard cable length: 2 m)
- Materials: Case: Heat-resistant ABS, Sensing Surface: Polyaceta

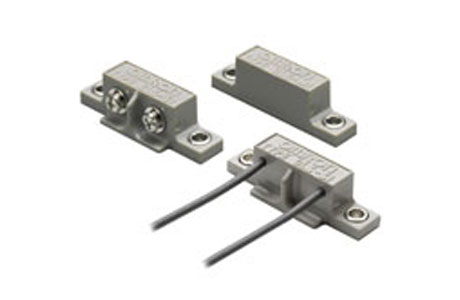

Omron Magnetic Proximity Sensor: GLS Series
- The Omron GLS-1 and GLS-1L models feature a 15 mm sensing distance, ideal for precise proximity detection.
- They have a switching capacity of up to 100 VDC and 0.1 A DC, with a maximum of 10 W.
- The sensors operate at a response frequency of 20 Hz, suitable for various applications.
- They can function in temperatures from -20 to 60°C.
- The GLS-1 offers IP40 protection, while the GLS-1L provides IP62 protection.
- Built with durable ABS material, they ensure longevity and reliability in industrial environments.
Product List
IndMALL Automation specializes in providing Omron Proximity Sensors, a crucial component in modern industrial automation. Our range includes various models like Omron capacitive proximity sensors, Omron magnetic proximity sensors, and Omron analog proximity sensors, all known for their reliability and precision. We offer cylindrical models such as Omron proximity sensors M12 and M8, as well as rectangular sensors.
We offer micro proximity sensors for applications requiring compact solutions, and our Omron Proximity Switch models are ideal for seamless integration into various systems. The sensor Omron range, particularly the Omron inductive proximity sensor, is highly sought after for its accuracy in metal object detection.
Our proximity sensors are ideal for detecting nearby objects without physical contact. The Omron proximity switch models integrate seamlessly into various systems, ensuring efficiency and accuracy. Our competitive Omron proximity sensor price list highlights cost-effective solutions without compromising on quality. For detailed specifications, refer to the Omron Capacitive Proximity Sensor PDF and other datasheets.
Trust IndMALL Automation for top-quality Omron proximity sensors that enhance efficiency and precision in your industrial processes.
People Also Ask (FAQ)
What are the Types of Proximity Sensor?
In the Omron Proximity Sensors are Two Types
1. Inductive Proximity Sensors
2. Capacitive Proximity Sensors
Rectangular Proximity Sensor is it Available?
In Omron Sensors, Inductive Proximity Sensors are available in Rectangular type Inductive Sensors & Cylindrical type Inductive Sensors. But mostly in the market Cylindrical Proximity Sensors are the Fast moving models.
How to Select Proximity Sensor?
When you are selecting Industrial Proximity Sensor you must be very clear about Which Product you want to sense, Suppose you are going to check the Metal type of product you can select Inductive Proximity Sensors, suppose you are going to sense Plastic, Paper, Wood etc., you can go for Capacitive Proximity Sensor.
Suppose you want an Inductive Sensor, Then you should be aware of the application Do you want Cylindrical Proximity Sensors or Rectangular Proximity? When you are going to select Cylindrically Sensors be clear about Sensor head dia like M4, M5, M8, M12, M18 or M30 Suppose you want Rectangular Proximity to be clear about Height, Width, Length.
For your application how much sensing distance do you want like 2 mm, 4 mm, 5 mm, 8 mm, 10 mm, 16 mm etc., What type of output do you want like Relay Output, PNP Output, NPN Output, What type installations do you want like Flush/Shielded or Non Flush/ Un Shielded, What type operating voltages do you want like 10-30 VDC or 230 VAC.
What type of electrical connection do you want like Pre Wired/Cable Type, 2M Cable or 5M Cable, Connector Type like M8 Connector or M12 Connector, Cable Connectors etc., How much sensor length do you want like Short body or Long Body etc., this information is the enough to Select the Proximity Sensors for Both the Inductive Sensors & Capacitive Sensors. But these details are enough for Basic applications.
Can proximity sensor detect human?
As you proximity Sensors are mainly two types 1. Inductive Sensor 2. Capacitive Sensor.
The inductive Sensor won’t sense the humans, but the Capacitive sensor will sense the Humans but sensing distance in mm only like 5 mm, 10 mm.
How does Omron proximity sensor work?
Omron Inductive sensors operate on the principle of detecting changes in an electromagnetic field or capacitance to sense objects within their vicinity, and they do this without any physical contact.
There are two main types of Omron proximity sensors: inductive and capacitive.
- Omron Inductive Proximity Sensors: These sensors generate an electromagnetic field by using an oscillating coil within the sensor. When a metallic object comes within this field, it disrupts the field and alters the oscillation amplitude. This disruption is detected by the sensor, which then sends a signal to indicate the presence of an object. This makes inductive sensors best suited for detecting metallic objects.
- Omron Capacitive Proximity Sensors: Unlike inductive sensors, capacitive sensors can detect both metallic and non-metallic objects such as liquids, plastic, and wood. They work by forming an electric field between the sensor and the object to be detected. When an object comes within this field, it changes the capacitance value of the sensor. This change in capacitance is then translated into a signal indicating the presence of the object.
Both types of sensors can be configured as either normally open (NO) or normally closed (NC), depending on the application’s requirement. Omron proximity sensors are used in a variety of applications, from industrial automation to safety systems, due to their reliability and durability.
Top 10 Proximity Sensor Maufacturing Companies
Here are the Top 10 Proximity sensor manufacturing companies 1. Omron Automation, 2. Pepperl Fuchs Sensor 3. Leuze Sensors 4. Sick Sensors 5. IFM Sensors 6. Balluff Sensors 7. Baumer Sensors 8. Keyence Sensors 9. Dappr Sensors 10. Delta Sensors etc., (Based on Indian Market)
Find out a wide range of Omron Proximity Sensors, including both inductive and capacitive switches, to find the perfect solution for your industrial needs in Chennai.
