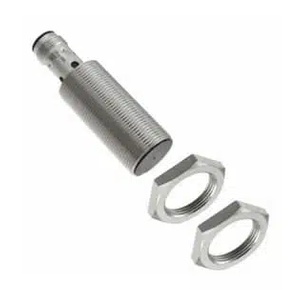

Omron E2B-M18KS08-M1-B1 : M18 PNP Proximity sensor in Chennai
Technical specifications of Omron E2B-M18KS08-M1-B1 M18 PNP Proximity sensor:
- M18 diameter
- Normally open (NO) switching function
- Sensing distance of 8mm
- Flush type installation
- PNP output configuration
- Short body length of 59mm
- M12 connector connection
- Power supply voltage range of 10 to 30 VDC.
Omron E2B-M18KS08-M1-B1 M18 PNP Proximity sensor Technical Specifications:
| Sensor Head (Dia) | M18 (18 mm) |
| Installation | Flush | shielded |
| Sensing Distance | 8 mm |
| Body Length | Short (59mm) |
| Output Configuration | PNP |
| Switching | NO |
| Connection | M12 Connector |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | 24 × 24 × 1 mm |
| Response frequency | 500 Hz |
| Power supply voltage | 10 to 30 VDC. (including 10% ripple (p-p)) |
| Current consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient air temperature | Operation and storage: -25 to 70ºC |
| Ambient humidity | Operation and Storage: 35 to 95% |
| Voltage influence | ±1% max. of sensing distance in 24 V ±15% |
| Standard and listings | (1) IP67 (IEC60529) (2) EMC (EN60947-5-2) |
| Material Case | Brass-nickel plated |
| Material Sensing surface | PBT |
| Material Cable | The standard cable is 4 mm dia. PVC |
| Material Clamping nut | Brass-nickel plated |
The M18 PNP Proximity Sensor, an exceptional model offered by IndMALL, boasts a cutting-edge design with a flush type installation, ensuring seamless integration into various systems. Its robust M18 diameter and short body length of 59mm make it a compact yet powerful solution. Featuring a PNP output configuration, the sensor operates within a power supply voltage range of 10 to 30 VDC, delivering reliable performance. IndMALL in Chennai offering of the Omron E2B-M18KS08-M1-B1 model exemplifies a perfect blend of size, functionality, and efficiency for diverse industrial applications.
