Keyence Proximity Sensor: 2-wire & 3-wire Proximity Sensors
Keyence Proximity Sensor, available through IndMALL, are versatile tools used in many industries. They come in different series like EX-V, EV, EZ, EV-F, ET, and EM, each with unique features. These Keyence Inductive Proximity sensors can measure very small distances quickly and accurately, making them perfect for automation tasks.
They work well in various temperatures and conditions, ensuring reliability. With different sizes and designs, they fit many types of machinery. IndMALL Automation provides these Keyence Proximity sensors to help businesses improve their processes with accurate and dependable technology.

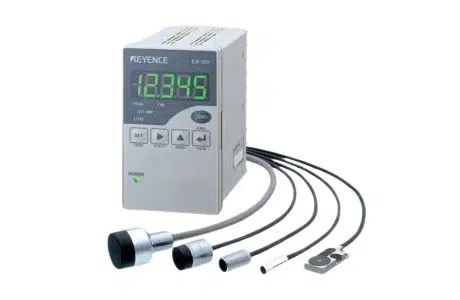

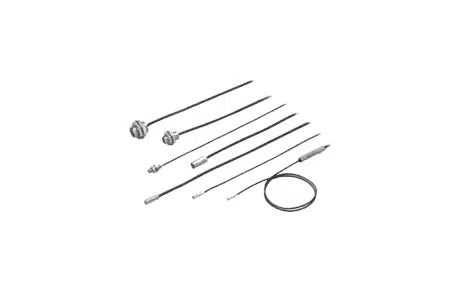

Keyence Proximity Sensor: EX-V Series
- Design: Sizes from ø5.4 x 18 mm to 14 x 30 x 4.8 mm.
- Range: 0 to 10 mm measuring capability.
- Resolution: 0.4 µm to 2 µm.
- Output: ±5V analog, 100 Ω impedance.
- Control input: NPN open-collector
- Power: 24 VDC ±10%, max 240 mA consumption.

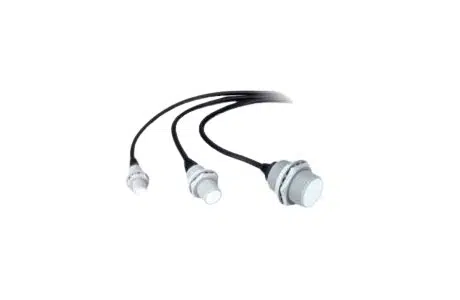

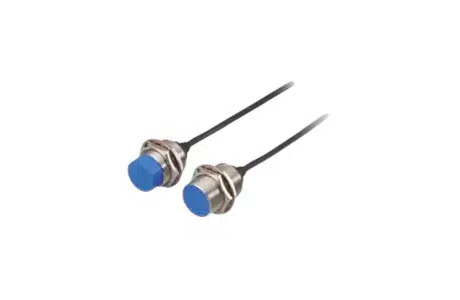

Keyence Inductive Proximity Sensor: EV Series
- Design: Available in M8, M12, M18, and M30 sizes.
- Detecting Distance: 1.5 mm to 10 mm, depending on the model.
- Response Frequency: Varies from 250 Hz to 800 Hz.
- Operation Mode: Normally Open (N.O.).
- Control Output: Switching capacity between 5 to 200 mA.
- Power Voltage: 12 to 24 VDC, with a ripple of 20% or less.

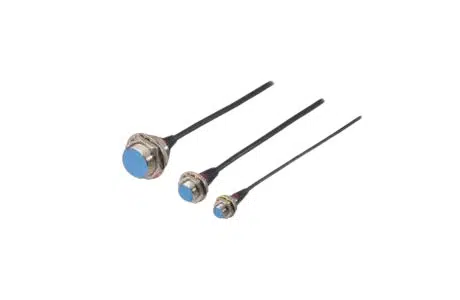

Keyence Capacitive Sensor: EZ Series
- Design: M8 to M30 and a thin 20 x 32 x 8 mm model.
- Range: Detecting distance from 1.5 mm to 10 mm.
- Response Frequency: Up to 800 Hz.
- Output: NPN open collector, 100 mA max.
- Power: 12 to 24 VDC ±10%.
- Durability: IP67 rating, -25 to +80°C operating temperature.
Keyence Inductive Proximity Sensors: EV-F Series
- Design: Available in M12, M18, and M30 sizes.
- Detecting Distance: Ranges from 2.5 mm to 10 mm.
- Response Frequency: Up to 600 Hz.
- Operation Mode: Normally Open (N.O.).
- Control Output: 5 to 200 mA switching capacity.
- Power Voltage: 12 to 24 VDC, with a ripple of 20% or less.

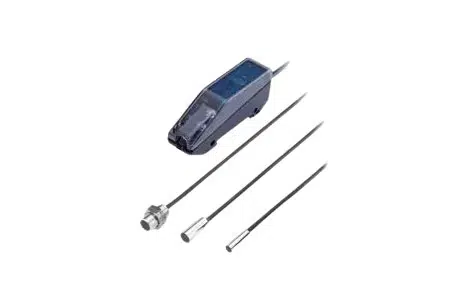

Keyence Inductive Sensor- ET Series
- Design: Available in cylindrical and threaded shapes.
- Detecting Distance: 0 to 1.0 mm and 0 to 2.0 mm.
- Response Frequency: Up to 1 kHz.
- Output: Control output of 100 mA max. (40 V max.).
- Power Voltage: 12 to 24 VDC, Ripple (P-P) 10% or less.
- Material: Designed for detecting nonferrous metals.

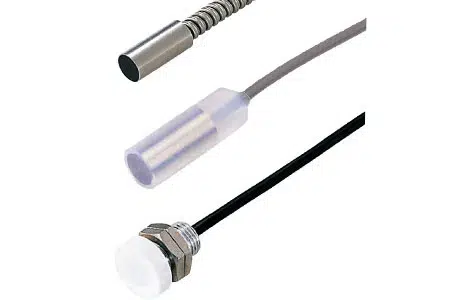

Proximity Keyence -EM Series
- Design: 3 mm dia cylindrical to M14 threaded.
- Detecting Distance: Varies from 0.6 mm to 4.0 mm.
- Response Frequency: 1.2 kHz.
- Operation Mode: Normally Open (N.O.).
- Output: NPN or PNP, 200 mA max.
- Power Voltage: 10.8 to 30 VDC, Ripple (P-P) 10% or less.
IndMALL Automation offers an extensive range of Keyence Proximity Sensor, including the highly efficient Keyence Capacitive Sensors and Keyence Inductive Sensors. These sensors are designed to cater to a wide array of industrial needs, ensuring precision and reliability.
The Keyence Capacitive Sensor, particularly in the EZ series, is known for its sensitivity and accuracy in detecting non-metallic objects. On the other hand, our Proximity Keyence and Keyence Inductive Sensors are ideal for detecting metallic objects with high precision.
Whether it’s for automation, manufacturing, or other industrial applications, our Keyence Proximity sensors provide the reliability and efficiency needed for complex tasks.
Product List:
Model No |
Image |
Type |
Shape |
Response frequency |
Operation mode |
Ambient temperature |
|---|---|---|---|---|---|---|
| EM-030 |  |
Shielded | 3 mm dia Cylindrical | 1.2 kHz | N.O | -25 to +80 °C |

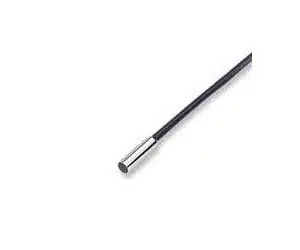

| ET-305 |  |
Sensor Head, Shielded | Cylindrical | 1 kHz | 15-turn trimmer | 0 to +50 °C |
| EV-130M |  |
DC, Shielded | M30 | 250 Hz | N.O | -25 to +80 °C |

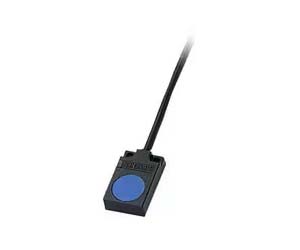

| EZ-18T |  |
Shielded, Thin | 20 x 32 x 8 mm | 350 Hz | N.O/N.C | -25 to +80 °C |

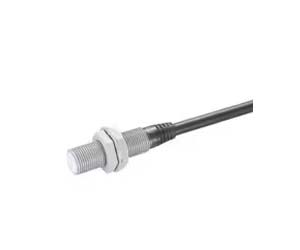

| EV-112F |  |
Spatter-resistant/Shielded | M12 | 600 Hz | N.O | -25 to +80 °C |
The Keyence Proximity Sensor lineup includes a variety of models to suit different industrial needs.
- The EM-030 model is a shielded sensor with a 3 mm diameter cylindrical shape, offering a response frequency of 1.2 kHz and operating in Normally Open (N.O) mode, suitable for temperatures ranging from -25 to +80 °C.
- The ET-305, designed as a sensor head with shielding, has a cylindrical shape, a response frequency of 1 kHz, and a unique 15-turn trimmer operation mode, functioning well in temperatures from 0 to +50 °C. For larger applications.
- The EV-130M model comes in a M30 size, shielded, with a response frequency of 250 Hz, operating in N.O mode, and can withstand ambient temperatures from -25 to +80 °C.
- The EZ-18T offers a slim design of 20 x 32 x 8 mm, shielded and thin, with a response frequency of 350 Hz and dual operation modes of N.O/N.C, suitable for the same temperature range.
- The EV-112F model is spatter-resistant and shielded, sized at M12, with a 600 Hz response frequency, operating in N.O mode, and can also operate in temperatures ranging from -25 to +80 °C.
Frequently Asked Questions
Keyence Inductive Proximity Sensor Working Principle?
When a metal object comes close, the magnetic field changes. This is really useful in factories or machines where you need to know if a metal part is passing by. Plus, because it doesn’t touch the object, it lasts a long time.
What is Difference Between NPN and PNP Proximity Switches?
NPN and PNP are two types of proximity switches that help machines “see” things without touching them. But they work a bit differently when it comes to electrical signals.
In an NPN switch, the output signal turns on when the switch detects an object. It’s like a light switch that turns on when you enter the room. On the other hand, a PNP switch works the opposite way. When it senses an object, it sends a signal to turn the output off. It’s like turning off a fan when you leave the room.
What is the Maximum Distance for a Capacitive Proximity Sensor?
The maximum distance a capacitive proximity sensor can detect objects varies from model to model. However, the general range is usually up to 25 mm, or about one inch. Some expert models might detect things from a bit farther away. But most of the time, you’ll find them working within this distance limit.
So if you need to sense objects that are more than an inch away, you might need a different type of sensor. Always check the specs before buying to make sure it fits your needs.
