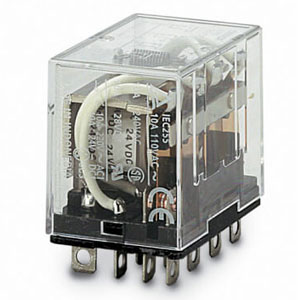

LY4 12VDC: Omron LY4 DC12 Relay in Chennai
Technical Specifications for Omron LY4 DC12 Relay LY4 12VDC:
- Degree of protection: Closed type (cover)
- Terminal structure: Plug-in terminal
- Coil ratings:12 VDC 120 mA
- Coil resistance:100 Ω
- Contact form: 4PDT
- Contact method: Single
- Mounting method: Socket
- Power consumption: Approx. 1.5 W
Omron LY4 DC12 Relay LY4 12VDC Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | Plug-in terminal |
| Coil ratings | 12 VDC 120 mA |
| Coil resistance | 100 Ω |
| Operate voltage (Set voltage) | 80 % max. |
| Release voltage (Reset voltage) | 10% min. |
| Coil Maximum voltage | 110 % |
| Power consumption | Approx. 1.5 W |
| Coil Contact rated load | 110 VAC 10 A (Resistive load) 110 VAC 7.5 A (Inductive load (cosφ = 0.4)) 24 VDC 10 A (Resistive load) 24 VDC 5 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 250 VAC 125 VDC |
| Max. Contact Current | AC: 10 A DC: 10 A |
| Contact form | 4PDT |
| Contact method | Single |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Contact material | Ag alloy |
| Operating time | 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) |
| Reset time | 25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/h Rated load: 1800 time/h |
| Insulation resistance | Between coil and contacts: 100 MΩ min. (at 500 VDC) Between contacts of the same polarity: 100 MΩ min. (at 500 VDC) Between contacts of different polarity: 100 MΩ min. (at 500 VDC) |
| Ambient temperature (Operating) | -25 to 40 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% RH |
| Mounting method | Socket |
| Weight | Approx. 70 g |
Are you searching for the Omron LY4 DC12 Relay LY4 12VDC is an ideal choice. It features a closed cover for protection and a plug-in terminal for easy connection. Operating on 12 VDC with 120 mA, it has a coil resistance of 100 Ω. This 4PDT relay with a single contact method is designed for socket mounting and has a power consumption of approximately 1.5 W. Find it at the best prices at IndMALL Automation in Chennai.
