Omron Relay: General Purpose & Safety Relays

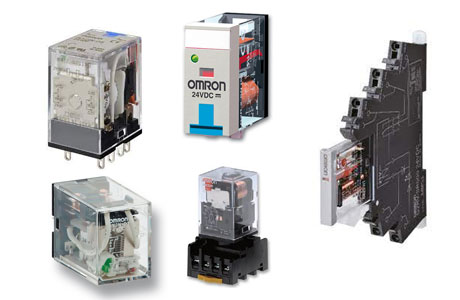

IndMALL Automation offers an extensive range of Omron Relay. These include Miniature Relays, Power Relays, Bi-Power Relays, Slim Relays, Latching Relays, General Purpose Relays, and more. We also have specialized relays like Omron Relay 24VDC, Omron LY2 Relay, Omron Safety Relay, Omron MY4N, and Omron Solid State Relay. When compared to authorized Omron relay dealers in Chennai, we offer genuine products at competitive Omron relay prices.
Omron Relay: LY Bi-power
- Coil Types: AC and DC options.
- Poles: Single, double, 3-pole, and 4-pole models.
- Contact Types: SPDT, DPDT, 3PDT, 4PDT.
- Mounting Types: DIN-rail by socket, PCB, flange.
- Coil Voltage Options: Various AC and DC options.
- Contact Material: AgSnIn; Rated Load: 10A.
- Terminals: Plug-in, solder.

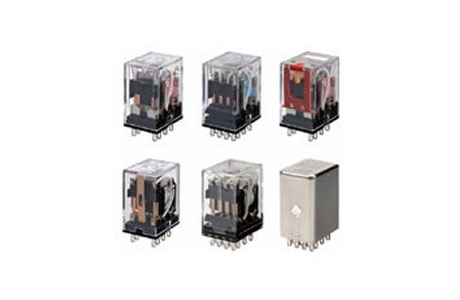

Omron Relays: MY Miniature Power Relays
- Terminal Types: Plug-in, with options for built-in diode (DC) and CR circuit (AC).
- Contact Types: SPDT, DPDT, 3PDT, 4PDT.
- Rated Load Current: 10 A for 2-pole, 6 A for 4-pole models.
- Coil Voltage Options: Various AC and DC options.
- Contact Material: Ag, Ag alloy.
- Mounting Method: Plug-in socket.
- Special Models: Options with diode, LED, test button, and protection.

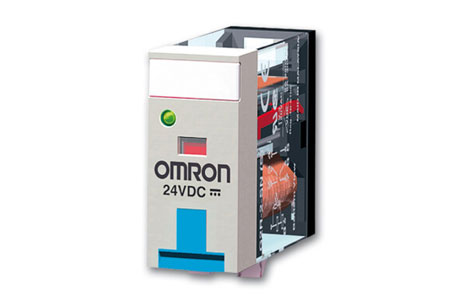

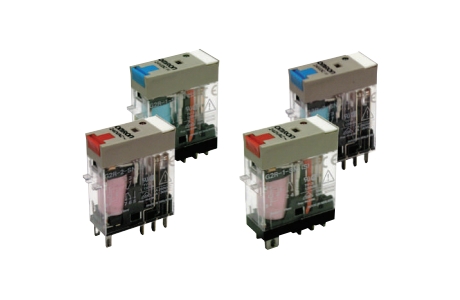

Omron 24VDC Relay: G2RS Series
- Types: SPDT and DPDT.
- Current Rating: 10 A for SPDT, 5 A for DPDT.
- Housing: Transparent.
- Indicators: Mechanical Flag, LED indicator, optional test button.
- Mounting: Plug-in socket; Contact Material: AgSnIn.
- Voltage Options: Various AC and DC options.
- Terminal: Screwless clamp terminal sockets are available.
- Size: Space-saving, 16 mm width including sockets.

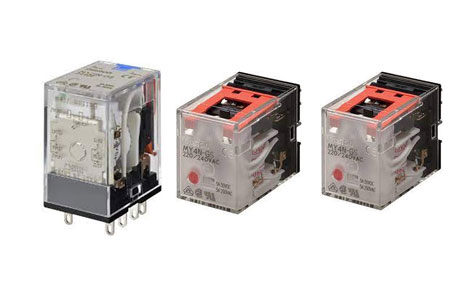

Omron Miniature Relay: MY-GS Series
- Coil Types: AC and DC options.
- Contact Ratings:
–NO: 10 A at 250 VAC, 10 A at 30 VDC.
–NC: 5 A at 220 VDC, 5 A at 24 VDC. - Contact Material: Ag; Max. Switching Current: 10 A.
- Max. Switching Voltage: 250 VAC, 220 VDC.
- Operate/Release Time: AC: 20 ms max, DC: 30 ms max.
- Max. Operating Frequency: Mechanical: 18,000 operations/h, Electrical: 1,800 operations/h.
- Insulation Resistance: 100 MΩ min; Dielectric Strength: 2,000 VAC 50/60 Hz for 1 min.

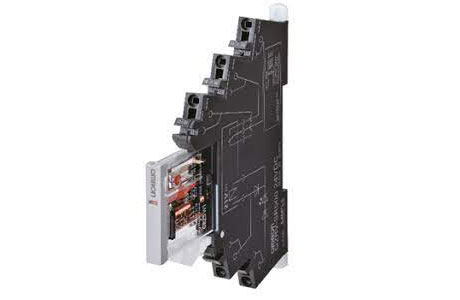

Omron Slim Relay: G2RV-ST Series
- Type: Slim relay with industrial pin.
- Width: 6mm; Mounting Method: DIN rail.
- Contact Configuration: SPDT.
- Rated Carry Current: 6 A.
- Coil Voltage Options: 110 VAC, 12 VDC, 230 VAC, 24 VAC/DC, 24 VDC, 48 VAC/DC.
- Contact Material: Ag alloy, options with Ag alloy + Au plating.
- Features: LED indicator, transparent case, mechanical indicator, Push-in Plus technology.
Omron General Purpose Relay: MK-S Series
- Coil Options: AC and DC.
- Contact Ratings: NO: 10 A, NC: 5 A (250 VAC/30 VDC).
- Contact Material: AgSnIn; Switching: Max 250 VAC/VDC, 10 A.
- Timing: Operate time ≤ 30 ms.
- Frequency: Up to 18,000 operations/h.
- Insulation: ≥ 100 MΩ; Dielectric Strength: 2,500 VAC.
- Temperature Range: -40 to 60°C.

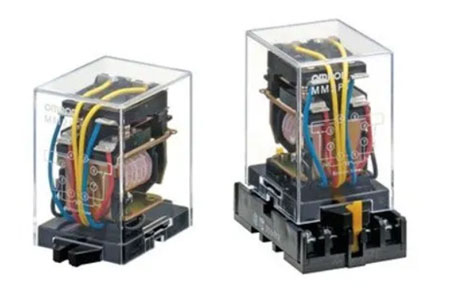

Omron Power Relays: MM Series
- Coil Options: AC and DC.
- Contact Ratings: NO: 15 A, NC: 7.5 A (220 VAC/24 VDC).
- Contact Material: Ag; Frequency: Up to 7,200 operations/hr.
- Switching: Max 250 VAC/VDC, 15 A.
- Timing: Operate time ≤ 50 ms.
- Insulation: ≥ 100 MΩ; Dielectric Strength: 1,500-2,000 VAC.
- Temperature Range: -10 to 55°C.

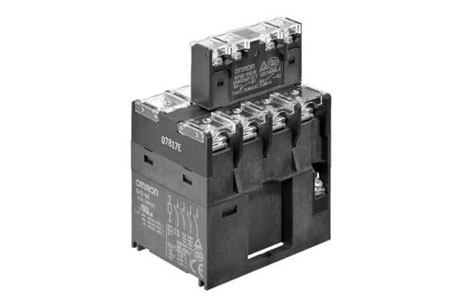

Omron Safety Relay: G7Z Series
- Type: Compact high-power relay.
- Switching Current: 160 A (40 A rating / 4-pole / IEC-AC1).\
- Switching Voltage: 440 VAC; Coil Voltage Options: 12 VDC, 24 VDC.
- Contact Configuration: DPST-NO/DPST-NC, 4PST-NO.
- Rated Carry Current: NC: 25A, NO: 40A; Mounting Method: DIN rail.
- Contact Material: Ag alloy, options with gold clad.
- Features: Auxiliary contacts, low switching noise (70 dB), power consumption of less than 4 Watts.

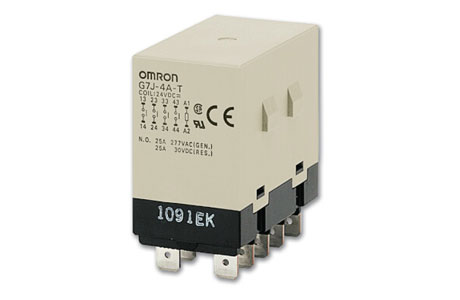

Omron Power Relay: G7J Series
- Type: High-capacity multi-pole relay.
- Contact Types: 4PST-NO, 3PST-NO/SPST-NC, DPST-NO/DPST-NC.
- Rated Load Current: NC: 8 A, NO: 25 A.
- Coil Voltage Options: 24 VDC, 230 VAC.
- Contact Material: Ag alloy.
- Mounting Method: Bracket, PCB.
- Terminals: Screw, PCB, Quick terminal.

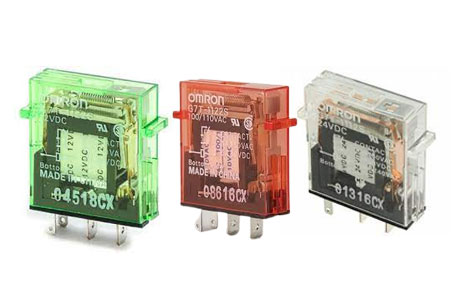

Omron Electronics Relay: G7T I/O Series
- Coil Ratings: AC and DC options with specific rated current and resistance.
- Contact Ratings:
—-For Input: 1 A at 24 VDC (resistive), 0.5 A at 24 VDC (inductive).
—-For Output: 5 A at 24 VDC (resistive), 2 A at 24 VDC (inductive). - Contact Material: Crossbar bifurcated (input), AgSnIn (output).
- Max. Switching Voltage: 250 VAC, 125 VDC.
- Max. Switching Current: 1 A (input), 5 A (output).
- Operate/Release Time: 15 ms max.
- Max. Operating Frequency: Mechanical: 18,000 operations/hour, Electrical: 1,800 operations/hour.
- Insulation Resistance: 100 MΩ (at 500 VDC).
- Dielectric Strength: Between coil and contacts: 2,000 VAC, Between contacts of same polarity: 1,000 VAC.

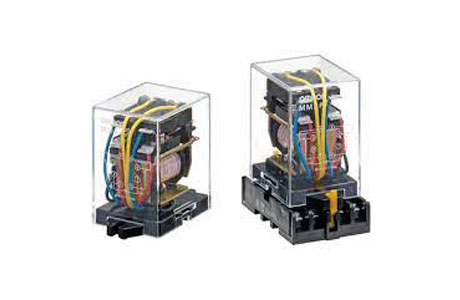

Omron Latching Relay: MMK Series
- Rated Current and Coil Resistance: Measured at 23°C with AC tolerance of +15%/-20% and DC ±15%.
- Contact Ratings: 10 A at 220 VAC, 7 A at 24 VDC; Max switching voltage: 250 VAC, 250 VDC.
- Reset Coil (DC Models): Rated voltages: 6V to 220V; Coil resistance: 14.2 Ω to 16,330 Ω; Power consumption: Approx. 2.8 W.
- Environmental Conditions: Operating temperature: -10°C to 55°C; Humidity: 5% to 85%.
- Performance Characteristics: Insulation resistance: 100 MΩ min. at 500 VDC; Dielectric strength: 1,500 to 2,000 VAC for 1 min.
- Vibration and Shock Resistance: Vibration: 10 to 55 Hz, 0.375 mm amplitude; Shock: 500 m/s² (destruction), 50 m/s² (malfunction).
IndMALL Automation is a premier destination for a diverse selection of Omron relays, ideal for various industrial automation needs. Our extensive range includes the Omron relay 24VDC and the Omron 24VDC relay, suited for multiple applications. We also offer essential Omron fuses and fuse relays to ensure circuit protection.
In our Omron relay catalogue, you can find numerous products such as the Omron power relay, Omron 24V relay, and Omron 24VAC relay. For more complex control systems, we provide solutions like the 8-channel relay module and relay card 8 channel to streamline operations. Our Omron automation products, including the 24V Omron relay and Omron relay 12VDC, are designed for reliability and longevity.
We offer a wide range of general-purpose relays, including the Omron relay 230VAC and Omron 24V DC relay in India. Our Omron relay catalog features various models like the Omron MY2N, Omron LY2 24VAC, and Omron LY2 24VDC, ensuring you find the perfect relay for your requirements. For top-quality Omron relays and exceptional industrial automation solutions, choose IndMALL Automation.
Product List:
Model No | Image | Contacts Configuration | Contact current max | Mounting | Operating Voltage | Coil Voltage |
---|---|---|---|---|---|---|

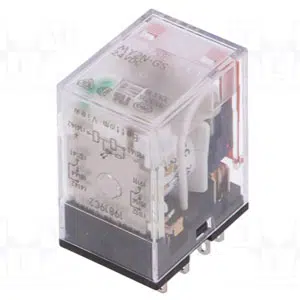

MY2N-GS-24VDC | DPDT | 7A | Socket | DC | 24V DC | |

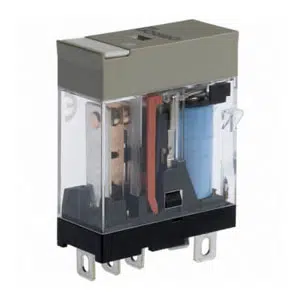

G2R-1-SN 24VDC (S) | SPDT | 10A | plug-in socket | DC | 24 V | |

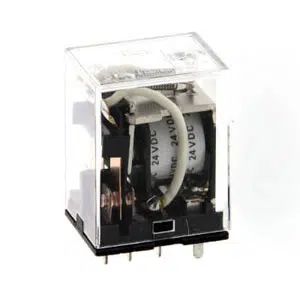

LY2 12VDC | DPDT | 10A | With a plug-in socket | DC | 12V | |
MY4 DC24B | 4PDT | AC: 3 A DC: 3 A | Socket | DC | 24 VDC |
Frequently Asked Questions
What is an Omron Relay?
What are the Different Types of Omron Relays?
OMRON offers a variety of relays, including General-purpose Relays, I/O Relays, and Power Relays. Their range also encompasses Latching Relays and Ratchet Relays. Each type is tailored for specific applications, ensuring versatility and reliability. OMRON’s relays are integral in industrial, automotive, and home automation systems.
What is the Purpose of the Omron Relay?
OMRON relays serve as crucial components in control circuits for automated machinery across diverse production environments. They are extensively used in control systems for lighting, air conditioning, and water treatment in buildings. These relays ensure reliable operation in various applications, from industrial automation to building management systems.
What is the Relay?
Omron relays stand out for their reliability and advanced safety features. With a variety that includes safety relays, auxiliary relays, thermal relays, latching relays, and more, they are engineered to safeguard both individuals and equipment from potential risks. Among Omron’s offerings, general-purpose relays are the most popular.
What is the use of General Purpose Relay?
General-purpose relays are electromechanical devices that are used in various electrical and electronic circuits for switching and control applications. They are designed to handle a range of voltages and currents, making them versatile and suitable for use in many different applications.
The primary use of a general-purpose relay is to switch or control electrical signals or power circuits using a low-power signal or control voltage. They can be used for a wide variety of applications, such as controlling motors, pumps, heaters, lights, and solenoids. They are also commonly used in automation systems, industrial control panels, and in the control of other electrical and electronic devices.
General purpose relays are designed to be highly reliable and durable, with a long operational life. They are available in various sizes and configurations, including plug-in, panel mount, and surface mount versions, making them adaptable to a wide range of applications. Overall, general-purpose relays are a critical component in many electrical and electronic systems, providing reliable switching and control capabilities.
Can Relay Convert DC to AC?
No, relays cannot convert DC (Direct Current) to AC (Alternating Current) or vice versa. Relays are simply switches that are used to turn electrical circuits on and off. They are designed to work with either AC or DC voltage, but they do not have the ability to change the voltage from one type to another.
To convert DC to AC or AC to DC, a converter or an inverter is needed. A converter can convert AC to DC, while an inverter can convert DC to AC. These devices use electronic components such as diodes, transistors, and capacitors to convert the voltage from one type to another.
If you require Omron Relay, General Purpose & Safety Relays in Chennai, immediately Get the quote for Omron Relay.
