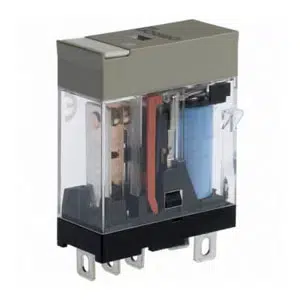

G2R-1-S DC24: Omron Electromechanical Relay in Chennai
The technical specifications for the Omron Electromechanical Relay G2R-1-S DC24 are:
- Terminal Structure: Plug-in terminal
- Coil ratings: 24 VDC 21.6 mA
- Power consumption: Approx. 0.53 W
- Contact form: SPDT
- Mounting method: Socket
- Degree of protection: Closed type (cover)
- Contact Resistance: 30 mΩ max
Omron Electromechanical Relay G2R-1-S DC24 Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | Plug-in terminal |
| Coil ratings | 24 VDC 21.6 mA |
| Coil resistance | 1113 Ω |
| Operate voltage (Set voltage) | 70% max. |
| Release voltage (Reset voltage) | 15% min. |
| Power consumption | Approx. 0.53 W |
| Maximum voltage | 110% |
| Contact rated load | 250 VAC 10 A (Resistive load) 250 VAC 7.5 A (Inductive load (cosφ = 0.4)) 30 VDC 10 A (Resistive load) 30 VDC 5 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 440 VAC 125 VDC |
| Max. Contact current | AC: 10 A DC: 10 A |
| Maximum switching power | 2500 VA (Resistive load) 1875 VA (Inductive load (cosφ = 0.4)) 300 W (Resistive load) 150 W (Inductive load (L/R = 7 ms)) |
| Contact form | SPDT |
| Contact resistance | 30 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Operating time | 15 ms max. (With rated operating power applied, not including contact bounce) |
| Reset time | 5 ms max. (With rated operating power applied, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/h Rated load: 1800 time/h |
| Ambient temperature (Operating) | -40 to 70℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | Socket |
Looking for a reliable relay in Chennai? The Omron Electromechanical Relay G2R-1-S DC24 is a great choice. It has a plug-in terminal and a protective cover. This relay uses a 24 VDC coil, with a power consumption of about 0.53 W. It can handle up to 10 A for both AC and DC. It’s designed to work well in temperatures from -40 to 70℃ and is perfect for various uses. Get it at the best price from IndMALL Automation.
