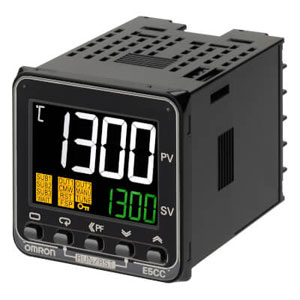

E5CC-RX2ASM-006: Omron PID Thermocouple Controller in Chennai
The Technical Specifications of the Omron PID Thermocouple Controller E5CC-RX2ASM-006:
- Shape: DIN48 x 48
- Terminal-type: Screw terminal block
- Control output 1: Relay output
- Power supply voltage: 100 to 240 VAC (50/60 Hz)
- Control method: ON/OFF or 2-PID control
- Setting method: Digital setting using front panel keys
- Indication method: 11-segment digital display
- Case color: Black
Omron PID Thermocouple Controller E5CC-RX2ASM-006 Technical Specifications:
| Size | DIN48 x 48 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Input type | Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV |
| Number of total control output | 1 point |
| Control output 1 | Relay output |
| Control output 2 | None |
| Number of total auxiliary output | 2 point |
| Number of event input | 2 point |
| Number of transfer output | 1 point |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 6.5 VA max. (at 100 to 240 VAC) |
| Terminal | Screw terminal block |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) For a 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminal section: IP00 |
| Case color | Black |
| Accessories | Mounting adapter, Waterproof packing |
Are you looking for the Omron PID Thermocouple Controller E5CC-RX2ASM-006? It’s designed in a DIN48 x 48 shape with a screw terminal block for easy installation. This controller has a relay output and works on 100 to 240 VAC (50/60 Hz). It offers ON/OFF or 2-PID control, easily set via front panel keys, and displays settings on an 11-segment digital display. The unit comes in a sleek black case. For the best prices, visit IndMALL Automation in Chennai.
