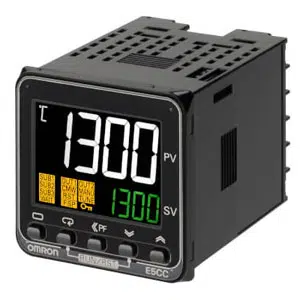

E5CC-CX0AUM-000: Omron PID Temperature Controller E5CC
The technical specifications of the Omron E5CC-CX0AUM-000 are:
- Shape: DIN (48 x 48 mm)
- Control method: ON/OFF or 2-PID control
- Number of input points: 1 point
- Power supply voltage: 100 to 240 VAC (50/60 Hz)
- Control output: Linear current output/None
- Terminal type: Plug-in
- Case Color: Black
Omron PID Temperature Controller E5CC-CX0AUM-000 Technical Specifications:
| Size | DIN48 x 48 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV |
| Number of total control output | 1 point |
| Control output 1 | Linear current output |
| Control output 2 | None |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 5.2 VA max. (at 100 to 240 VAC) |
| Terminal | Plug-in |
Are you in search of the Omron PID Temperature Controller E5CC-CX0AUM-000? It fits the standard DIN48 x 48 shape and features a plug-in terminal for ease of use. This controller accepts a variety of inputs, including thermocouples and infrared sensors, and provides linear current output. It operates on 100 to 240 VAC, with a maximum power consumption of 5.2 VA. You can easily set it up using the front panel keys, and it displays information clearly with an 11-segment digital display. Find it at the best price at IndMALL Automation.
