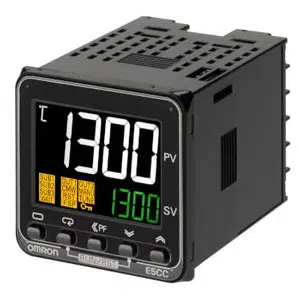

E5CC-QX3ASM-000: Omron Temperature Controller 48 x 48 in Chennai
The Technical Specifications of the Omron Temperature Controller 48 x 48 E5CC-QX3ASM-000:
- Shape: DIN48 x 48
- Terminal-type: Screw terminal block
- Control output 1: Voltage output (for driving SSR)
- Control output 2: None
- Number of total auxiliary output: 3 point
- Power supply voltage: 100 to 240 VAC (50/60 Hz)
- Power consumption: 5.2 VA max.
- Control method: ON/OFF or 2-PID control
Omron Temperature Controller 48 x 48 E5CC-QX3ASM-000 Technical Specifications:
| Size | DIN48 x 48 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Input type | Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV |
| Number of total control output | 1 point |
| Control output 1 | Voltage output (for driving SSR) |
| Control output 2 | None |
| Number of total auxiliary output | 3 point |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 5.2 VA max. (at 100 to 240 VAC) |
| Terminal | Screw terminal block |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) For a 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminal section: IP00 |
| Case color | Black |
| Accessories | Mounting adapter, Waterproof packing |
Are you searching for the Omron E5CC-QX3ASM-000, with its Omron Temperature Controller DIN48 x 48 shapes and screw terminal block, is a great choice. It offers a voltage output for SSRs and three auxiliary outputs. Operating on 100 to 240 VAC (50/60 Hz) and with a maximum power consumption of 5.2 VA, it provides ON/OFF or 2-PID control. This makes it ideal for a variety of applications. Find it at IndMALL Automation in Chennai for the best rates.
