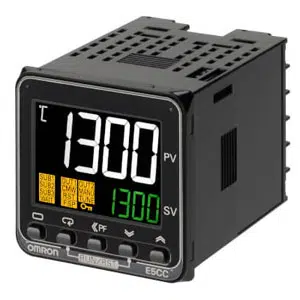

E5CC-QX2AUM-000: Omron E5CC Temperature Controller
The Omron E5CC Temperature Controller E5CC-QX2AUM-000 technical specifications are:
- Size: DIN48 x 48
- Control: ON/OFF or 2-PID (auto-tuning)
- Temperature Inputs: Thermocouple, Platinum resistance, Infrared sensor
- Control Output: Voltage (for SSR)
- Display: 1-segment digital display and individual indicators
- Power supply voltage: 100-240 VAC
- Terminal: Plug-in
Omron E5CC Temperature Controller E5CC-QX2AUM-000 Technical Specifications:
| Size | DIN48 x 48 |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV |
| Number of total control output | 1 point |
| Control output 1 | Voltage output (for driving SSR) |
| Control output 2 | None |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 5.2 VA max. (at 100 to 240 VAC) |
| Terminal | Plug-in |
Looking for the Omron E5CC Temperature Controller E5CC-QX2AUM-000 is a perfect choice. It’s a compact DIN48 x 48 size with a plug-in terminal for easy installation. This controller supports various input types like thermocouples and infrared sensors, and offers a voltage output for driving SSRs. It has two auxiliary outputs, consumes up to 5.2 VA power on 100 to 240 VAC, and features ON/OFF or 2-PID control with auto-tuning for precise temperature management. Get the best deals on this controller at IndMALL Automation.
