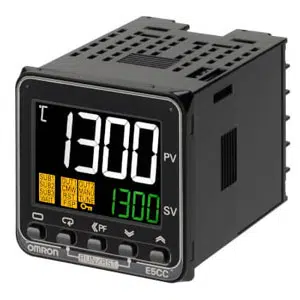

E5CC-CX0ASM-000: Omron Digital Temp Controller in Chennai
Technical Specifications for the Omron Digital Temp Controller E5CC-CX0ASM-000:
- Shape: DIN48 x 48
- Terminal-type: Screw terminal block
- Control output 1: Linear current output
- Power supply voltage: 100 to 240 VAC (50/60 Hz)
- Power consumption: 5.2 VA max.
- Setting method: Digital setting using front panel keys
- Indication method: 11-segment digital display
- Case color: Black
Omron Digital Temp Controller E5CC-CX0ASM-000 Technical Specifications:
| Size | 48 × 48 mm |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 2 point |
| Temperature input type | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V |
| Number of total control output | 1 point |
| Control output 1 | Linear current output |
| Linear current output | 1 point 4 to 20 mA DC / 0 to 20 mA DC, Load: 500 Ω max., Resolution: approx. 10000 |
| Control output 2 | None |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85% to 110% of rated supply voltage |
| Power consumption | 5.2 VA max. (at 100 to 240 VAC) |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) For a 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminal section: IP00 |
| Terminal | Screw terminal block |
| Accessories | Mounting adapter, Waterproof packing |
Are you looking for the Omron Digital Temp Controller E5CC-CX0ASM-000 is a perfect fit. It has a standard DIN48 x 48 shape and a screw terminal block, linear current output, and operates on 100 to 240 VAC (50/60 Hz), with a maximum power consumption of 5.2 VA. It features easy digital settings via front panel keys and an 11-segment digital display, all in a sleek black case. For competitive prices, head to IndMALL Automation in Chennai.
