Nidec VFD: AC Drives & Control Techniques VFD

Are you looking for Nidec VFD or Control Techniques VFD? Look no further than IndMALL. We have the latest Nidec VFD M200 and Nidec VFD M400, known for their reliability. Our selection of Nidec AC Drives ensures your machines always run smoothly. If you need diverse options, our range of Nidec VFDs and Nidec VFD Drives will not disappoint.

For those trying to find complete systems, Nidec Drive Systems are excellent. We also provide the specific Nidec Make VFD and Nidec Mv VFD. Lastly, the Nidec Motor Corporation VFD stands out for its superior technology. Explore IndMALL and find the perfect Nidec solution for your needs.

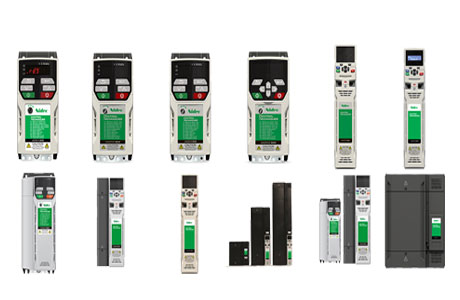

Nidec VFD: Unidrive M600

Power Range: 0.75 kW – 2.8 MW (1.0 – 4,200 hp).
Voltage Options: 200 V / 400 V / 575 V / 690 V.
Control: Sensorless control of induction, permanent-magnet, and hybrid PM motors.
Efficiency: Up to 98% efficiency, minimizing energy losses.
Features: Onboard PLC, Machine Control Studio for logic control, sequencing, speed following, and digital lock.

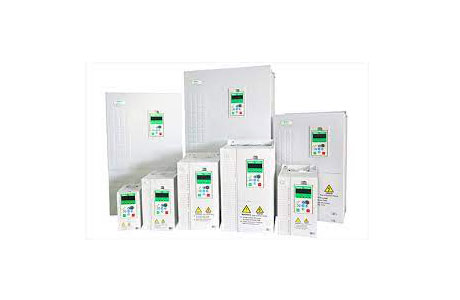

Control Techniques VFD: NE200 & NE300

Power Range: 0.4 kW to 900 kW.
Frequency Range: 0 to 550 Hz.
Design: Compact, optimized for high-interference environments.
Features: Simple and reliable operation, superior adaptability, EMC optimized design.
Efficiency: Excellent price/performance ratio.

Control Techniques AC Drives: Commander S

Power Range: 0.18 to 4 kW (0.25 to 5 hp).
Voltage Range: 1Φ 100 & 200 V, 3Φ 200 & 400 V.
Features: Optimized for simple applications, includes the Marshal app for commissioning, monitoring, diagnostics, and support.
Applications: Suitable for various simple motor control tasks.
Design: Compact and user-friendly, with an app interface as a standard feature.

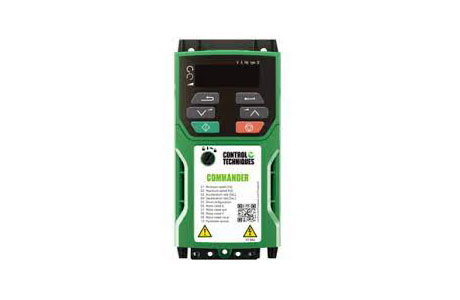

Nidec AC Drive: Commander C

Power Range: 0.25 kW to 132 kW (0.33 hp to 200 hp).
Voltage Options: 100 V, 200 V, 400 V, 575 V, 690 V.
Features: Built-in PLC capabilities, dual STO safety function, braking transistor, PID control.
Design: Compact, efficient for a range of applications.
User Space: 30kB for programmable functions and I/O features.
Connectivity: Plug-in communication modules for industrial fieldbuses.

Nidec Drives: DFS

Power Range: 55 kW to 540 kW.
Voltage Options: 400 V | 690 V.
Design: Pre-assembled, ready to install drive cubicle system for high power applications.
Features: Easy set-up, industry-standard cubicles, includes power disconnect and fuses, water cooling available on request.
Commissioning: Door mounted multi-language HMI, enhanced diagnostics with real-time clock, Connect PC tool for optimum commissioning.

Control Techniques Drives: Unidrive M700

Power Range: 0.75 kW – 2.8 MW (1.0 – 4,200 hp).
Voltage Options: 200 V / 400 V / 575 V / 690 V.
Control Flexibility: Precision torque control, sensorless control of various motor types.
Efficiency: 98% efficient with minimal energy loss.
Features: On-board PLC, auto-tuning PID controllers, high bandwidth speed loop, integrated safety functions.
Design: Compact, with options for stand-alone, modular, and pre-assembled drives.

Nidec VFD M400

Power Range: 0.25 – 132 kW (0.33 – 200 hp).
Voltage Options: 100 V, 200 V, 400 V, 575 V, 690 V.
Features: Rotor Flux Control (RFC-A) for stability, onboard PLC, Machine Control Studio for logic control, sequencing, speed following, and digital lock.
Safety: Dual Safe Torque Off (STO) inputs, certified to SIL3 / PLe.
Design: Robust with multi-language display, intuitive navigation for easy setup and diagnostics.

At IndMALL Automation, we offer a range of Nidec VFDs, known for their advanced control techniques and efficiency. Our Nidec drives, including the Control Techniques Drive series, are designed for precise speed control in various industrial applications. These drives are renowned for their reliability and performance in demanding environments.

The Nidec VFD series excels in applications requiring high-voltage drives, offering robust solutions for high-power needs. Our high-voltage drive and high-voltage drivers are tailored for applications needing superior voltage handling capabilities. The VSD drives in our collection are perfect for variable speed control, enhancing energy efficiency and operational flexibility.

If you need a Control Technique VFD or a Control Techniques Drive, our products are designed to meet diverse industrial requirements. Choose IndMALL Automation for Nidec VFD Drives and experience the perfect blend of power, precision, and reliability in your industrial processes.

Frequently Asked Questions

What are the different types of Nidec motors?

Drive systems transfer power to achieve movement.

Mechanical drives use gears and belts to move machinery.

Electrical drives control motors using electricity.

Hydraulic drives use fluid pressure to create motion.

Pneumatic drives rely on compressed air for movement.

Each system has its own advantages and applications.

Why ac to dc conversion is required in VFD?

VFD stands for Variable Frequency Drive. It controls the speed of AC motors.

AC motors need varying frequencies and voltage for speed control.

The VFD first converts AC to DC. This gives a stable voltage.

Then, the DC is converted back to AC at a desired frequency.

This conversion process allows precise motor speed control. It’s essential for VFD’s operation.

Trust IndMALL for Nidec VFD or Control Techniques VFD Drives and get in touch immediately.
