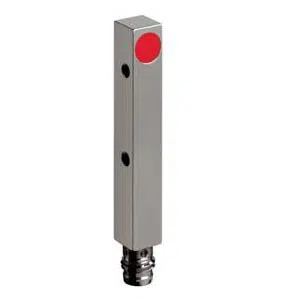

IS 288MP/4NO-2E0-S8.3: 50112888 - Leuze 59mm Embedded Inductive Switch
Technical Specifications of Leuze IS 288MP/4NO-2E0-S8.3 50112888:
| Spec | Value |
|---|---|
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 59mm Embedded Inductive Switch IS 288MP/4NO-2E0-S8.3, 50112888 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 288 |
| Sensing Distance | 2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 5,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 3 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 8 mm x 8 mm x 59 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 8 x 8 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze 59mm Embedded Inductive Switch IS 288MP/4NO-2E0-S8.3 part no: 50112888 at attractive prices. Engineering Specifications of IS 288MP/4NO-2E0-S8.3, 50112888 detail. Our 288 series, 2 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) output 1, Transistor, PNP , NO contact – Antivalent output 2, 5,000 Hz, 1 Piece(s) Connection, M8 Connector, 3 -pin, Cubic, 8 mm x 8 mm x 59 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 67 degree of protection.Navigate Your Needs with a Quote for your requirement of Leuze 59mm Embedded Inductive Switch. We excel in offering more cost-effective and supportive solutions than other Competitors.
