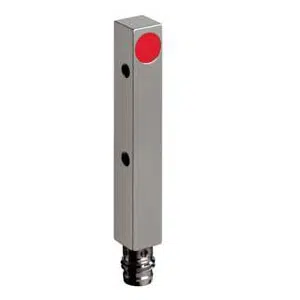

Leuze IS 288MP/4NO-3E0-S8.3 Proximity Sensor
The Leuze IS 288MP/4NO-3E0-S8.3 Proximity Sensor (Part No: ) offers a 3 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, M8 Connector connection, 3 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 288MP/4NO-3E0-S8.3 |
Leuze IS 288MP/4NO-3E0-S8.3 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 288 Series |
| Sensing Distance | 3 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact β Antivalent |
| Switching frequency, max. | 1,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 3 -pin |
| Design | Cubic |
| Dimension (Γ x L) | 8 mm x 8 mm x 59 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 9 x 9 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 59mm Length Inductive Switch IS 288MP/4NO-3E0-S8.3 part no: 50112890 at unbeatable prices. Detailed Specifications of IS 288MP/4NO-3E0-S8.3, 50112890 feature. Our 288 series, 3 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) output 1, Transistor, PNP , NO contact β Antivalent output 2, 1,000 Hz, 1 Piece(s) Connection, M8 Connector, 3 -pin, Cubic, 8 mm x 8 mm x 59 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 67 degree of protection.Now's the Time to Secure a Quote for your requirement of Leuze 59mm Length Inductive Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
