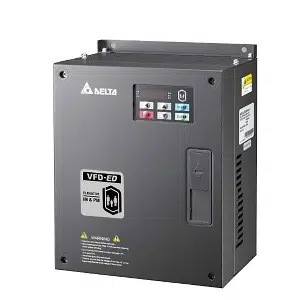

VFD185ED43S: Delta 18.5kW 25HP VFD
Technical Specifications of Delta 18.5kW 25HP VFD VFD185ED43S:
| Spec | Value |
|---|---|
| Input Rated Voltage (V) | Three-phase 380 ~ 480 |
| Applicable Motor Output ( kW) | 18.5 kW |
| Applicable Motor Output (HP | 25 HP |
| Output Current (A) | 38 A |
Delta 18.5kW 25HP VFD VFD185ED43S Technical Specifications
| Specification | Value |
|---|---|
| Input Rated Voltage (V) | Three-phase 380 ~ 480 |
| Applicable Motor Output ( kW) | 18.5 kW |
| Applicable Motor Output (HP) | 25 HP |
| Output Capacity (kVA) | 30.3 kVA |
| Output Current (A) | 38 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Control Method | V / F, VF+PG, SVC, FOC+PG, FOC+PM |
| Storage/Transportation Temperature | -20 ºC ~ 60 ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattem | Adjustable V / F curve using 4 independent points |
| Version Type | S |
| Input Frequency Tolerance | ±5% (47 ~ 63) |
| Voltage Tolerance | ±10% (342 ~ 528) |
| Net Weight (kg) | 10 Kg |
Reach Us by Email for Delta 18.5kW 25HP VFD, VFD185ED43S at Discounted Rates. Key Technical Features of VFD185ED43S are Adjustable V / F curve using 4 independent points, Below 90% RH (non-condensing), IP20, Fan cooling. Additionally, it provides 18.5 kW, 25 HP, 30.3 kVA. Navigate Your Needs with a Quote for your requirement of Delta 18.5kW 25HP VFD. Our pricing and support are unrivaled, especially when compared to other Competitors.
