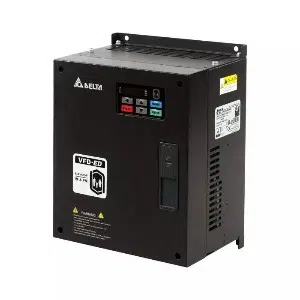

VFD110ED23S: Delta 11kW 230V Advanced Control VFD
Technical Specifications of Delta 11kW 230V Advanced Control VFD VFD110ED23S:
| Spec | Value |
|---|---|
| Input Rated Voltage (V) | Three-phase 200 ~ 240 |
| Applicable Motor Output ( kW) | 11 kW |
| Applicable Motor Output (HP | 15 HP |
| Output Current (A) | 45 A |
Delta 11kW 230V Advanced Control VFD VFD110ED23S Technical Specifications
| Specification | Value |
|---|---|
| Input Rated Voltage (V) | Three-phase 200 ~ 240 |
| Applicable Motor Output ( kW) | 11 kW |
| Applicable Motor Output (HP) | 15 HP |
| Output Capacity (kVA) | 19 kVA |
| Output Current (A) | 45 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Control Method | V / F, VF+PG, SVC, FOC+PG, FOC+PM |
| Storage/Transportation Temperature | -20 ºC ~ 60 ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattem | Adjustable V / F curve using 4 independent points |
| Version Type | S |
| Input Frequency Tolerance | ±5% (47 ~ 63) |
| Voltage Tolerance | ±10% (180 ~ 264) |
| Net Weight (kg) | 10 Kg |
Obtain a Quote for Delta 11kW 230V Advanced Control VFD, VFD110ED23S at economical prices. Specifications Overview for VFD110ED23S reveals Adjustable V / F curve using 4 independent points, Below 90% RH (non-condensing), IP20 & Fan cooling. It also includes 11 kW, 15 HP & 19 kVA. Take the First Step with a Quote for your requirement of Delta 11kW 230V Advanced Control VFD. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
