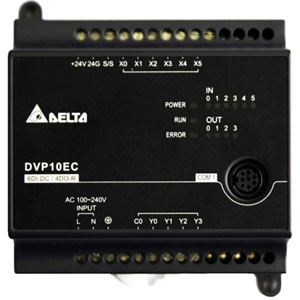

DVP10EC00T3: Delta 6 Input 4 Output PLC
Technical Specifications of DVP10EC00T3 Delta 6 Input 4 Output PLC:
| Spec | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 6 - Digital |
| Number of Outputs and Type | 4- Transistor |
| Power Consumption | 12VA |
DVP10EC00T3 Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 6 - Digital |
| Number of Outputs and Type | 4- Transistor |
| Fuse Capacity | 2A/ 250VAC |
| Power Consumption | 12VA |
| Program Capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 10ms |
| Vibration/shock resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Looking for the Delta DVP10EC00T3 from the DVP-EC3 Series. It uses 100-240VAC power and has transistor outputs. With 6 digital inputs and 4 transistor outputs, it's designed to operate in temperatures from 0°C to 55°C. It can run programs up to 16k steps and has a low power consumption of just 12VA. It also requires a 24VDC input signal. For great deals on Delta PLCs, check out IndMALL Automation.
