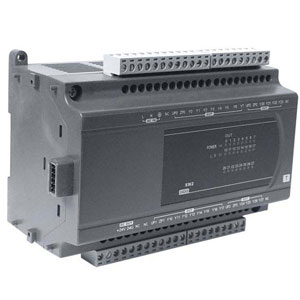

DVP08XM211N: Delta 8 Input Digital Module
Technical Specifications of DVP08XM211N Delta 8 Input Digital Module:
| Spec | Value |
|---|---|
| Output Method | - |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | Digital - 8 |
| Number of Outputs and Type | - |
| Power Consumption | 1.2W |
Delta 8 Input Digital Module DVP08XM211N Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | - |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | Digital - 8 |
| Number of Outputs and Type | - |
| Fuse Capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 1.2W |
| Program Capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 10ms |
| Vibration/shock resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Looking for the Delta 8 Input Digital Module DVP08XM211N, part of the DVP-ES2/EX2 Series digital/analog module. It's powered by 24VDC and designed for efficiency with a power consumption of just 1.2W. This module has 8 digital inputs and is suitable for temperatures from 0°C to 55°C. It supports up to 16k steps in program capacity and requires a 24VDC input signal. It also maintains an insulation impedance of over 5 MΩ. For the best prices on Delta PLCs, IndMALL Automation is the place to check.
