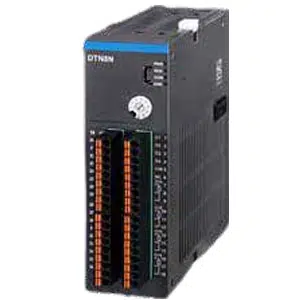

Delta DTN8NTCC Temperature Controller
Delta DTN8NTCC Temperature Controller is designed as an 8-channel modular unit for accurate thermal regulation within industrial automation systems. This controller operates on a DC 24V isolated switching power supply and supports thermocouple input signals for dependable industrial temperature monitoring. Its DIN rail mounting structure enables streamlined panel installation, while PID and ON/OFF control methods provide flexible process management capability. Manufactured by Delta, part of the Delta Temperature Controller family within the Delta DTN Series.
| Brand | Delta |
| Product | Temperature Controller |
| Model Number | DTN8NTCC |
Delta DTN8NTCC Multi-Loop Modular Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Channel Number | 8-channel |
| Input Power Supply | DC 24 V, isolated switching power |
| Operating Voltage Range | 90 % - 110 % rated voltage |
| Input Type | Thermocouple |
| Power Consumption (Max.) | 5.5W |
| Mounting Methods | DIN rail |
| Input Sensor Support | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK |
| Sampling Frequency | 0.4 seconds / All input channels |
| Control Methods | PID, ON / OFF |
| Voltage pulse output | Voltage pulse DC 12 V ± 10 %, max. rated output current 20 mA |
| Analog Current Output | 4-20 mA (load impedance ≦ 500 Ω) |
| Analog Voltage | 0-10 V (load impedance ≧ 1,000 Ω) |
| Communication Functions | RS-485 DIP Switch: supports baud rates of 4,800 - 115,200 bps |
| Internal Connection | Features internal connection terminals for 24 V power supply and communication signal transmission |
| Vibration Resistance | 10 ~ 55 Hz, 10 m / s² for 10 mins in X, Y, Z directions |
| Shock Resistance | Max. 300 m / s², 3 times in 3 axes and 6 directions |
| Operating Ambient Temperature | 0 ~ + 50 °C |
| Storage Temperature | - 20 ~ + 65 °C |
| Operating Altitude | < 2,000 m |
| Operating Ambient Humidity | 35 ~ 85 % RH (non-condensing) |
| Pollution Degree | 2 |
| Weight (Max.) | 270 g |
The DELTA DTN8NTCC temperature controller is commonly used in industrial automation systems requiring stable multi-channel temperature regulation and dependable thermocouple signal monitoring. Applications involving industrial ovens, furnaces, packaging systems, heating machinery, and process automation equipment benefit from accurate thermal management and stable operational control. Its 8-channel structure supports efficient industrial process supervision across demanding environments.
Industrial systems integrating the DTN8NTCC benefit from stable temperature control performance and flexible operational configuration. The controller maintains low power consumption while supporting continuous industrial monitoring requirements. Its DIN rail mounting structure helps simplify panel integration and organized control cabinet installation within automation systems.
For industries searching for a Delta 8-channel Thermocouple Temperature Controller, the DTN8NTCC provides dependable thermal regulation capability, flexible process control support, and stable automation performance. The controller supports both new industrial automation installations and replacement requirements involving precision temperature management applications. Within the Delta DTN Series, it remains a practical solution for industrial environments requiring reliable thermocouple-based temperature control performance.
