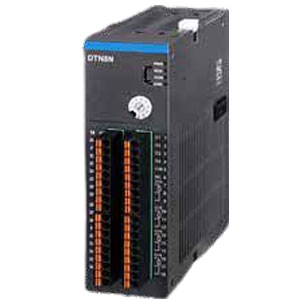

DTN8NTCV: Delta 5.5W Power Consumption Temperature Controller
Technical Specifications of Delta 5.5W Power Consumption Temperature Controller DTN8NTCV:
| Spec | Value |
|---|---|
| Channel Number | 8-channel |
| Input Power Supply | DC 24 V, isolated switching power |
| Operating Voltage Range | 90 % - 110 % rated voltage |
| Input Type | Thermocouple |
Delta 5.5W Power Consumption Temperature Controller DTN8NTCV Technical Specifications:
| Specification | Value |
|---|---|
| Channel Number | 8-channel |
| Input Power Supply | DC 24 V, isolated switching power |
| Operating Voltage Range | 90 % - 110 % rated voltage |
| Input Type | Thermocouple |
| Power Consumption (Max.) | 5.5W |
| Mounting Methods | DIN rail |
| Input Sensor Support | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK |
| Sampling Frequency | 0.4 seconds / All input channels |
| Control Methods | PID, ON / OFF |
| Voltage pulse output | 0 / 12 V Pulse Voltage |
| Analog Current Output | 4-20 mA (load impedance ≦ 500 Ω) |
| Analog Voltage | 0-10 V (load impedance ≧ 1,000 Ω) |
| Communication Functions | RS-485 DIP Switch: supports baud rates of 4,800 - 115,200 bps |
| Internal Connection | Features internal connection terminals for 24 V power supply and communication signal transmission |
| Vibration Resistance | 10 ~ 55 Hz, 10 m / s² for 10 mins in X, Y, Z directions |
| Shock Resistance | Max. 300 m / s², 3 times in 3 axes and 6 directions |
| Operating Ambient Temperature | 0 ~ + 50 °C |
| Storage Temperature | - 20 ~ + 65 °C |
| Operating Altitude | < 2,000 m |
| Operating Ambient Humidity | 35 ~ 85 % RH (non-condensing) |
| Pollution Degree | 2 |
| Weight | 270 g |
