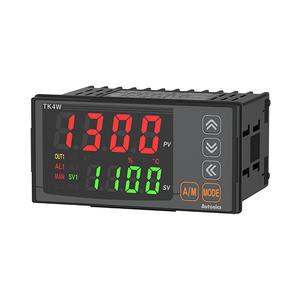

Autonics TK4W-14RN Temperature Controller
The Autonics TK4W-14RN Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4W-14RN |
Autonics TK4W-14RN Temperature Controller – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9℃/℉(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1/2) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120ΩAnalog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1 |
| Display accuracy_RTD | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_Thermocouple | •At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit•Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit |
| Control output 1 | Relay(250VAC~ 3A) |
| Display accuracy_Analog | •At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit•Out of range of room temperature: ±0.5℃% F.S. ±1-digit |
| Control output 2 | - |
| Weight | Approx. 211g(approx. 141g) |
The Autonics TK4W-14RN High Performance PID Temp Controller is engineered to provide stable, high-speed temperature regulation for complex process systems. Backed by a universal 100–240VAC~ 50/60Hz power supply and a fast 50ms sampling cycle, it ensures minimal lag in feedback and response, allowing rapid adaptation to process changes. With five control methods—ON/OFF, P, PI, PD, and PID—engineers have the flexibility to configure the unit for both simple and advanced control loops.
Input compatibility includes a wide array of signals: thermocouples like K, J, R, S, and B; RTDs such as Pt100, JPt100, and Cu50; and analog inputs like 4–20mA and 0–10V, offering integration across legacy and modern control systems. The controller delivers a display accuracy of ±0.3% F.S. for analog and RTD signals, and ±5% F.S. for CT inputs, ensuring confidence in displayed values. The built-in relay output (250VAC~ 3A) supports load switching, while IP65 front protection shields the unit from dust, steam, and oil splashes—making it ideal for rough plant conditions.
It includes features like adjustable proportional band (up to 999.9%), integral and derivative time (up to 9999 seconds), and manual reset for fine PID tuning. Engineers can also benefit from the option to connect CTs or digital inputs for extended functionality. Designed to operate between -10°C and 50°C, and store safely from -20°C to 60°C, the controller remains reliable even in high-humidity (up to 85%) environments. The compact 211g design fits easily into standard control panels without sacrificing power or precision. Built with double insulation and 2kV dielectric strength, this model provides long-term electrical safety, helping users maintain uptime with minimal intervention.
For maintenance teams, this model reduces troubleshooting time by offering reliable readings and stable operation under fluctuating load conditions. Students in automation labs benefit from learning PID tuning on actual industrial hardware. Whether you're stabilizing process heat in furnaces or managing batch-based thermal control systems, the TK4W-14RN offers the accuracy and durability required in modern industrial setups. For more product options under this category, browse the full Autonics Temperature Controllers lineup. To automation solutions from the brand, visit the Autonics Sensors & Controllers section. The TK4W-14RN remains a go-to choice for engineers who need dependable, real-world performance.
