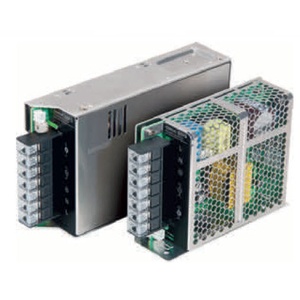

Omron S8FS-G10024CD-500 Power Supply
The Omron S8FS-G10024CD-500 Power Supply offers a 100 W power rating, 24 VDC output voltage, and 4.5 A rated current. This reliable SMPS Power Supply is built for DIN track mounting installation and equipped with Screw terminal to ensure safe and dependable wiring connections. Operating on Single-phase , it ensures stable DC performance with enhanced surge resistance and long-life 105Β°C electrolytic capacitors for extended reliability. Manufactured by Omron, part of the Omron Power Supply range of Switch Mode Power Supplies, available under the Omron S8FS-G Series.
| Brand | Omron |
| Product Type | Power Supply |
| Model Number | S8FS-G10024CD-500 |
Omron S8FS-G10024CD-500 Power Supply β Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 100 W |
| Output voltage | 24 VDC |
| Rated output current | 4.5 A |
| Terminal type | Screw terminal |
| Phase | Single-phase |
| Mounting method | DIN track mounting |
| Construction | Covered type |
| Connection | Terminal blocks |
| Efficiency | 87 % typ. (at 100 VAC input) 89 % typ. (at 200 VAC input) 89 % typ. (at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 2.1 A typ. (at 100 VAC input) 1.2 A typ. (at 200 VAC input) |
| Input Leakage current | 0.5 mA max. (at 100 VAC input) 1 mA max. (at 200 VAC input) |
| Input Frequency | 50/60Hz (47 to 450 Hz) |
| Allowable input voltage variable range | 85 to 264 VAC (Single-phase) 80 to 370 VDC |
| Overvoltage protection | Yes, Shut off the input voltage and turn on the input again |
| Parallel operation | No (However, backup operation is possible, external diodes required.) |
| Series operation | Yes (Up to 2 Power Supplies with external diode) |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Hold time | 10 ms typ. (at 100 VAC input) 55 ms typ. (at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm Single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 β |
| Ambient temperature (Storage) | -25 to 75 β (with no freezing or condensation) |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | Cooling fan No |
| Weight (Main) | 400 g max. |
The Omron S8FS-G10024CD-500 is a Switch Mode Power Supply designed for stable DC power delivery in control panels and automation equipment. It belongs to the Omron SMPS family and is typically evaluated together with related models such as Omron S8FS-C35024J (350W, 24V, 14.6A, Screw terminal, Single phase, Direct mounting), Omron S8FS-C01524J (15W, 24V, 0.7A, Screw terminal, Single phase, Direct mounting), and Omron S8FS-C05012 (50W, 12V, 4.2A, Screw terminal, Single phase, Direct mounting) when engineers are standardising their switch mode power supply lineup. Looking at power rating, output voltage, rated output current, terminal type, phase, and mounting method helps engineers choose the most suitable Omron SMPS Power Supply for each cabinet or machine section. The S8FS-G10024CD-500 integrates cleanly on DIN rails or inside enclosures, feeding PLCs, I/O modules, sensors, and safety relays where a reliable Omron Switch Mode Power Supply with predictable protection and wiring behaviour is required in continuous industrial service.
