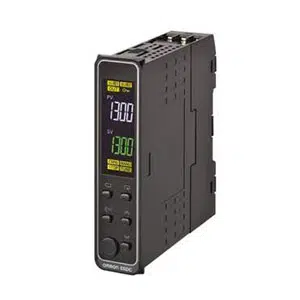

E5DC-CX0ASM-015: Linear Current Temperature Controller in Chennai
The Technical Specifications of the Omron E5DC-CX0ASM-015 Linear Current Temperature Controller:
- Shape: 22.5 mm wide
- Terminal-type: Screw terminal block
- Control output 1: Linear current output
- Control output 2: None
- Control method: ON/OFF or 2-PID control
- Power supply voltage: 100 to 240 VAC (50/60 Hz)
- Setting method: Digital setting using front panel keys
Omron E5DC-CX0ASM-015 Linear Current Temperature Controller Technical Specifications:
| Size | 22.5 mm wide |
| Control Method | ON/OFF control or 2-PID control (with auto-tuning) |
| Number of input points | 1 point |
| Input type | Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input |
| Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃ |
| Analog input type | Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V |
| Number of total control output | 1 point |
| Control output 1 | Linear current output |
| Control output 2 | None |
| Communications method | RS-485 (two-wire, half duplex) |
| Indication method | 11-segment digital display and individual indicators |
| Setting Method | Digital setting using front panel keys |
| Communications method | RS-485 (two-wire, half duplex) |
| Power supply voltage | 100 to 240 VAC (50/60 Hz) |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | 4.9 VA max. (at 100 to 240 VAC) |
| Insulation resistance | Between charged terminals and exposed uncharged parts: 20 MΩ min. (500 VDC) Between current-carrying terminals: 20 MΩ min. (500 VDC) Between non-continuous contacts: 20 MΩ min. (500 VDC) |
| Dielectric strength | 3,000 VAC 50/60 Hz 1 min(Between current-carrying terminals of different polarity) |
| Vibration resistance | Destruction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions |
| Shock resistance | Destruction: 300 m/s2, 3 times each in X, Y, and Z directions Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) For a 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Degree of protection | Main unit: IP20, Terminal unit: IP00 |
| Terminal | Screw terminal block |
Looking for the Omron E5DC-CX0ASM-015 Linear Current Temperature Controller. It’s slim, only 22.5 mm wide, and comes with a screw terminal block for easy connections, the controller is compatible with thermocouples, platinum resistance thermometers, infrared thermosensors, and analog inputs. It features a linear current output and operates on a 100 to 240 VAC power supply. You can choose between a simple ON/OFF control or a more sophisticated 2-PID control. For competitive prices on this Omron controller, IndMALL Automation in Chennai is the place to go.
