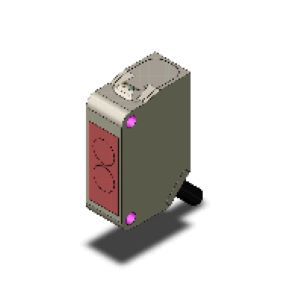

E3ZM-LS64H 5M: Omron 5M BGS Adjustable Sensitivity Sensor
Technical Specifications of Omron 5M BGS Adjustable Sensitivity Sensor E3ZM-LS64H 5M:
| Spec | Value |
|---|---|
| Shape | Square type |
| Sensing Method | BGS reflective |
| Sensing Distance | 10 to 200 mm |
| Connection Method | Pre-wired cable length 5m |
Omron 5M BGS Adjustable Sensitivity Sensor E3ZM-LS64H 5M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Square type |
| Sensing Method | BGS reflective |
| Sensing Distance | 10 to 200 mm |
| Light Source (wavelength) | Red LED |
| Connection Method | Pre-wired cable length 5m |
| Power Supply Voltage | 10 to 30 VDC |
| Output Configuration | NPN open collector |
| Current Consumption | 25 mA max. |
| Operation Mode | Light-ON/Dark-ON |
| Response time | 1 ms max. |
| Degree of protection | IP67 |
| Material Case | SUS316L |
| Material Lens | Methacrylate resin |
| Weight | 90 g |
Send Us an Email for Omron 5M BGS Adjustable Sensitivity Sensor, E3ZM-LS64H 5M with the special pricing. Engineering Specifications of E3ZM-LS64H 5M detail Square type, BGS reflective, 10 to 200 mm, Red LED, Pre-wired cable length 5m, 10 to 30 VDC, NPN open collector & 25 mA max.. Moreover, it features 1 ms max., Light-ON/Dark-ON & IP67. It's Time to get a Quote for your requirement of Omron 5M BGS Adjustable Sensitivity Sensor. We excel in offering more cost-effective and supportive solutions than other Dealers.
