Leuze Sensors for Positioning:

These types of devices are commonly used in industrial automation and robotics applications where precise positioning is required. The laser distance measurement device uses laser light to determine the distance between the device and a reflector, while the bar code positioning system uses a laser to read and interpret the position of a bar code on a tape. Both technologies provide accurate and reliable position measurement, allowing for smooth and efficient operation of automated systems.

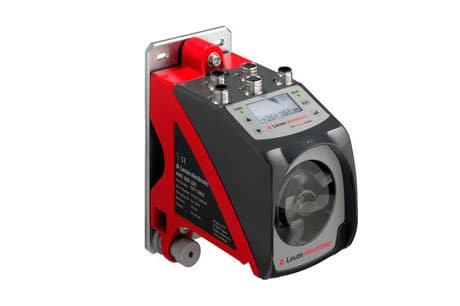

Leuze Optical laser measurement systems AMS 300i

Leuze Optical Laser Measurement Systems: AMS 300i Series

  • Repeatability of 1 mm, with tested absolute measurement accuracy from ±2 mm to ±5 mm at a range of 300 m
  • Simultaneous calculation and monitoring of position and speed
  • Integrated interface diversity for problem-free integration into a large array of control systems
  • Red light laser for simple alignment and real-time position measurement
  • Integrated intelligent mounting solution for simple alignment and fastening
  • Plain-text display in five languages for international use
  • With the PROFINET and PROFIBUS variants, a parallel SSI interface is available.

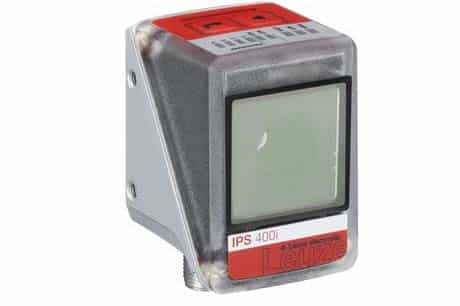

Leuze Camera-based-positioning-sensors IPS-400i

Leuze Camera-Based Positioning Sensors: IPS 400i Series

The IPS 400i is the smallest camera-based sensor for the compartment fine positioning of a high-bay storage device with double-depth shelves.

High-performance, ambient-light-independent IR-LED illumination, fault-free use is possible for a working range of up to 2,400 mm. The also available heated version can be used at ambient temperatures as low as -30 °C. Its dimensions are unrivaled with respect to the small size.

As a result, installation in constrained spaces poses no problem. Other highlights include the direct configuration on the device using printed configuration codes, which can be read indirectly, the simple operation, four alignment LEDs, and the information about the function reserve, which is output as a quality score.

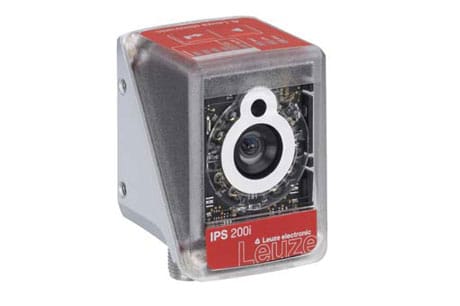

Leuze IPS 200i

Leuze Camera-based Positioning Sensors: IPS 200i Series

The IPS 200i is a camera-based sensor for the compartment fine positioning of a high-bay storage device with a single compartment depth.

With just one device model, a large working range from 100 to 600 mm can be achieved; the also available, heated version can be used at ambient temperatures as low as -30 °C. Its dimensions are unrivaled with respect to the small size.

As a result, installation in constrained spaces poses no problem. Other highlights include the simple operation, the configuration via the integrated web server or directly on the sensor, the four alignment LEDs, and the information about the function reserve, which is output as a quality score.

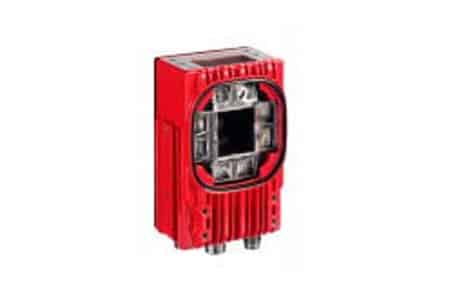

Compartment Fine Positioning LSIS 472i

Leuze Compartment Fine Positioning: LSIS 472i Series

The LSIS 472i smart camera, a special device type within the LSIS 400i smart camera family, is intended for compartment fine positioning, particularly on double-deep shelves.

The LSIS 472i detects circular holes or reflectors and determines the position deviation in the X and Y direction relative to the target position. With the integrated web config configuration software, the camera can be configured using a browser. Image transfer and, thus, process monitoring is possible during operation and takes place via FTP.

The camera is equipped with integrated Ethernet TCP/IP as well as an RS232 interface. Furthermore, 8 additional configurable digital IOs are available in total, e.g. for positioning the high-bay storage device.

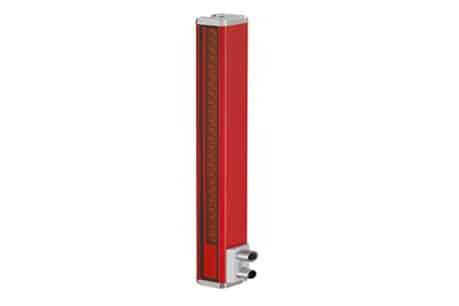

Leuze Optical Guidance

Leuze Optical Guidance: OGS 600 Series

The OGS 600 compact sensor is available in various models with different detection widths and interfaces. It is especially well suited for integration in flat vehicles, as the minimum distance from the floor is just 10 mm.
