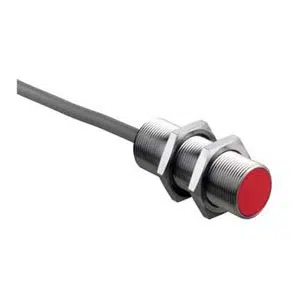

ISS 218MM/4NO-8E0: 50145948 - Leuze 3-wire Transistor PNP Switch
Technical Specifications of Leuze ISS 218MM/4NO-8E0 50145948:
| Spec | Value |
|---|---|
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 3-wire Transistor PNP Switch ISS 218MM/4NO-8E0, 50145948 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 218 |
| Sensing Distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 1,500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000m Length |
| Number of conductors or Pins | 3 -wire; 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 18 mm x 35 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 24 x 24 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Operation: -25 ... 70 °C |
| Degree of protection | IP 67 |
Reach Us by Email for Leuze 3-wire Transistor PNP Switch ISS 218MM/4NO-8E0 part no: 50145948 at Discounted Rates. Key Technical Features of ISS 218MM/4NO-8E0, 50145948 are 218 series, 8 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 1,500 Hz, 1 Piece(s) Connection, PVC Cable, 2,000m Length, 3 -wire; 4 -pin, Cylindrical, 18 mm x 35 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 3-wire Transistor PNP Switch. Our pricing and support are unrivaled, especially when compared to other Competitors.
