Leuze Bar Code Positioning Systems in Chennai:

The read head of the bar code positioning system is moved along a bar code tape. It calculates the absolute position data in the direction of travel with millimeter accuracy up to a distance of 10,000m…..

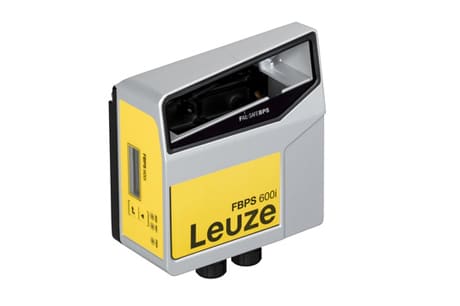

Leuze bar code positioning systems FBPS 600i

Leuze Bar Code Positioning Systems: FBPS 600i

Features:

  • Safe position detection with just one device up to PL e
  • Extremely easy implementation of the safety functions
  • Low space requirements and reduced installation effort
  • Short fault reaction time of 10 ms for use on fast stacker cranes
  • Wide working range of 50 to 170 mm and the well-thought-out fastening concept ensure simple mounting and integration



Available Models: FBPS 617i 17 SM 110 H, FBPS 617i 17 SM 110 D, FBPS 617i 17 SM 110, FBPS 617i 17 SM 100 H, FBPS 617i 17 SM 100 D, FBPS 617i 17 SM 100, FBPS 607i 07 SM 110 H, FBPS 607i 07 SM 110 D, FBPS 607i 07 SM 110, FBPS 607i 07 SM 100 H, FBPS 607i 07 SM 100 D, FBPS 607i 07 SM 100.

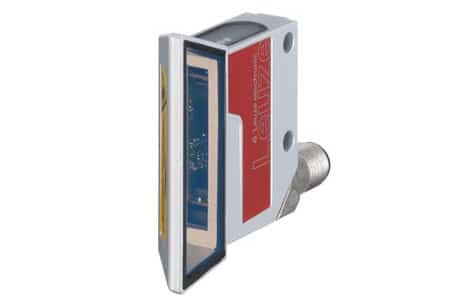

Leuze bar code positioning systems BPS 8

Leuze Bar Code Positioning Systems: BPS 8

Features:

  • Absolute position measurement up to 10,000 m
  • Curve-going, horizontally and vertically
  • Degree of protection: IP 67
  • Various protocols on RS 232, RS 485 via MA 8
  • Reproducibility: ±1 mm
  • Exact positioning at switches by means of special labels

Available Models: BPS 8 SM 102-10, BPS 8 SM 100-05, BPS 8 SM 102-05, BPS 8 SM 100-04 ,BPS 8 SM 102-04, BPS 8 SM 100-03, BPS 8 SM 102-03, BPS 8 SM 100-02, BPS 8 SM 102-02, BPS 8 SM 100-01, BPS 8 SM 102-01.

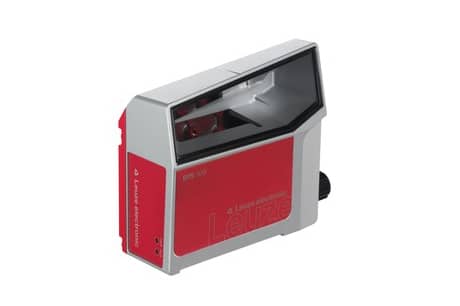

Leuze bar code positioning systems BPS 300i

Leuze Bar Code Positioning Systems: BPS 300i

Features:

  • Availability control: To reliably prevent failures resulting from contamination, the device constantly reports its function reserve, thereby indicating possible problems due to contamination
  • Easy handling: Fast, secure mounting and precise positioning of replacement devices through easy-mount mounting technology
  • Absolute positioning up to 10,000 m with reproducible accuracy of ±0.15 mm
  • Maximum speed 10 m/s
  • Modularity: three selectable connection technologies, heating, and display

Available Models:  BPS 307i SM 100 02, BPS 338i SM 100 H, BPS 338i SM 100 D, BPS 338i SM 100, BPS 348i SM 100 H, BPS 304i SM 100 H, BPS 307i SM 100 H, BPS 307i SM 100, BPS 307i SM 100 D, BPS 307i SM 100 D H, BPS 304i SM 100, BPS 304i SM 100 D, BPS 304i SM 100 D H, BPS 301i SM 100, BPS 301i SM 100 D, BPS 301i SM 100 D H, BPS 300i SM 100, BPS 300i SM 100 D, BPS 300i SM 100 D H, BPS 348i SM 100, BPS 348i SM 100 D, BPS 348i SM 100 D H.

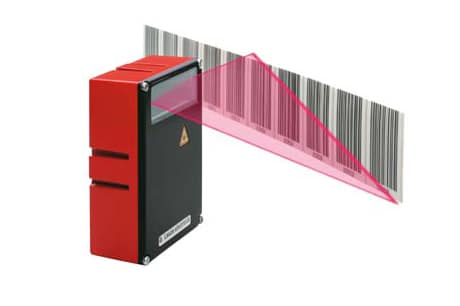

Leuze bar code positioning systems BPS 34 37

Leuze Bar Code Positioning Systems: BPS 34/37

Features:

  • Absolute positioning up to 10,000 m
  • Curve-going, horizontally and vertically
  • Degree of protection: IP 65
  • With PROFIBUS or SSI interface
  • Maximum speed 10 m/s
  • If areas of the bar code tape are damaged, a repair kit can be downloaded from the Internet
  • Special labels permit the precise and problem-free positioning on/at switches

Available Models: BPS 37 S M 100 HT, BPS 34 S M 100 HT, BPS 37 S M 100 H, BPS 34 S M 100 H, BPS 34 S M 100, BPS 37 S M 100.
