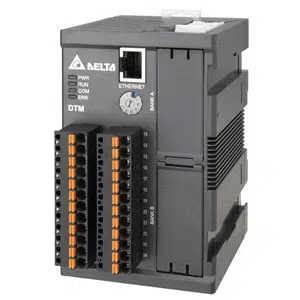

Delta DTME08 Ethernet Temperature Controller
The Delta DTME08 Temperature Controller is an ethernet temperature controller designed for multi-channel temperature monitoring and control in industrial automation systems. It supports 8-channel input operation with a DC 24 V power supply, enabling centralized control across multiple process points. The controller provides PID, programmable PID, ON/OFF, and manual control methods to maintain stable process conditions. It integrates communication through RS-485 and Ethernet, allowing connection to automation systems using standard industrial protocols. Manufactured by Delta automation, it is part of the temperature control range and connects with advanced controller platforms like the DTM series temperature controllers used in industrial environments.
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTME08 |
Delta DTME08 Ethernet Temperature Controller Technical Specifications
| Specification | Value |
|---|---|
| Channel Number | 8-channel |
| Input Power Supply | DC 24 V |
| Operating Voltage Range | 90% ~ 110% rated voltage |
| Power Consumption (Max.) | 6 W |
| Sampling Rate | 0.1 sec. / all 8 sets of input |
| Control Methods | PID, programmable PID, ON / OFF, manual |
| Communication Protocol | RS-485 DIP Switch: supports the Modbus protocol with RTU / ASCII communication format Ethernet RJ45 Port: support Modbus TCP and Ethernet/IP, compliant with IEEE802.3, IEEE802.3u Mini USB Port: supports USB2.0 communication standard |
| Internal Connection | Features internal connection terminals for 24 V power supply and communication signal transmission |
| Vibration Resistance | 10 ~ 55 Hz, 10 m/s² for 10 mins in X, Y, Z directions |
| Shock Resistance | Max. 300 m/s², 3 times in 3 axes and 6 directions |
| Operating Ambient Temperature | 0°C ~ 50°C |
| Storage Temperature | 20°C ~ 65°C |
| Operating Altitude | < 2,000 m |
| Operating Ambient Humidity | 35% ~ 85% RH (non-condensing) |
| Dimensions | 7 (W) × 11.3 (H) × 8 (D) cm |
The Delta DTME08 ethernet temperature controller is built to manage multiple temperature inputs within a single control unit, enabling efficient system operation across connected processes. Its 8-channel design allows synchronized monitoring and control, reducing the need for multiple standalone controllers. The compact structure supports panel installation while maintaining organized internal connections for power and communication.
In operation, the controller maintains stable performance through fast sampling across all input channels and configurable control modes. The combination of RS-485 and Ethernet communication enables integration into centralized monitoring systems, supporting data exchange and remote control. This makes the unit suitable for applications that require network-based temperature control and system coordination.
From an application perspective, the Delta DTME08 aligns with systems that require multi-point control, communication flexibility, and consistent process stability. Its ability to function as an ethernet temperature controller with reliable control output and stable operation within defined environmental conditions makes it suitable for industrial automation setups. This connection between channel capacity, communication capability, and control performance makes it a practical solution within the Delta temperature controller range.
