Autonics Solid State Relay: 3 Phase SSR

Visit our Autonics Solid State Relay series at IndMALL Automation, offering a wide range of relays for different uses. These relays are small and efficient, perfect for managing heaters, electronic devices, and motors. They come with easy-to-install designs, effective cooling features, and flexible switching options. Whether you need a relay with a built-in cooling part or one that you can mount easily, we have various models to choose from. Our relays are strong and reliable, making them a great choice for tough industrial tasks.

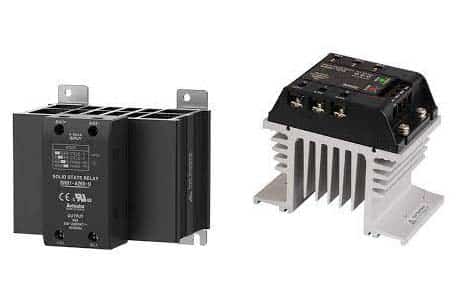

Autonics Solid State Relay

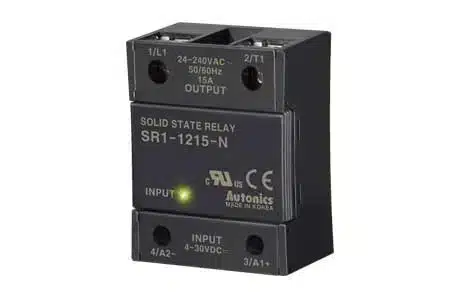

Autonics Solid State Relays

Autonics Solid State Relay: SR1 Series

  • Design: Compact, universal with detachable heatsink.
  • Heat Dissipation: High efficiency with ceramic PCB.
  • Switching: Zero cross and random turn-on models.
  • Indicator: Green LED for input indication.
  • Applications: Suitable for heater loads, semiconductor equipment, motor control.
Autonics SSR Relay

Autonics SSR Relay: SRH1 Series

  • Heat Dissipation: High efficiency with integrated heatsink and ceramic PCB.
  • Indicator: Green LED for input indication.
  • Installation: Supports DIN rail mount and panel mount.
  • Voltage Input Models: Zero cross turn-on, random turn-on options.
  • Current Input Models: Phase control (equal phase/power), cycle control (fixed/variable).
  • Dielectric Strength: High, at 4,000 VAC.
Autonics SSR 3 Phase

Autonics SSR 3 Phase: SRC1 Series

  • Design: Slim and compact, 22.5mm width.
  • Heat Dissipation: High efficiency with ceramic PCB.
  • Switching: Zero cross turn-on, random turn-on options.
  • Indicator: Green LED for input indication.
  • Applications: Suitable for heater loads, semiconductor equipment, and motor control.
Autonics SRS1 Series

Autonics SRS1 Series

  • Design: Socket type, easy installation/maintenance.
  • Input Voltage: 4-24VDC, 4-30VDC (varies by model).
  • Load Voltage: 24-240VAC, 5-100VDC, 5-200VDC, 90-240VAC (varies by model).
  • Load Current: 1A, 2A, 3A, 5A.
  • Dielectric Strength: 2500VAC.
  • Switching: Zero cross and random turn-on.
  • Indicator: Red LED for input.
Solid State Relay Autonics

Solid State Relay Autonics: SR2/SR3 Series

  • Mounting: Two hole types/sizes for various heatsinks.
  • Alarm Function: Overheating alarm with red LED, disconnects standard output.
  • Dielectric Strength: 4000VAC (select models).
  • Input Voltage: 4-30VDC, 24VAC, 90-240VAC.
  • Load Voltage: 24-240VAC, 48-480VAC.
  • Load Current: 15A, 30A, 40A, 50A, 75A.
  • Switching: Zero cross and random turn-on models.
  • Indicator: Green LED for input.

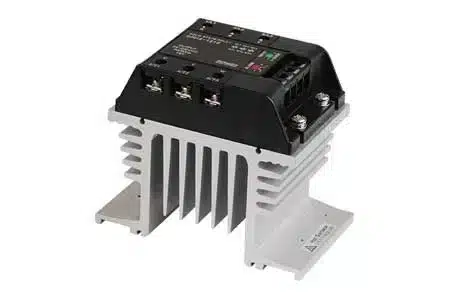

Autonics SRH2/SRH3 Series

Autonics SRH2/SRH3 Series

  • Mounting: Two hole types/sizes, compatible with various heatsinks.
  • Alarm Function: Overheating alarm with red LED, disconnects standard output.
  • Dielectric Strength: 4000 VAC (select models).
  • Input Voltage: 4-30VDC, 24VAC, 90-240VAC.
  • Load Voltage: 24-240VAC, 48-480VAC.
  • Load Current: 15A, 30A, 40A, 50A, 75A.
  • Switching: Zero cross and random turn-on models.
  • Indicator: Green LED for input.

Product List:

Model No


Control phase

Mounting type

Rated load voltage

Rated load current

Weight

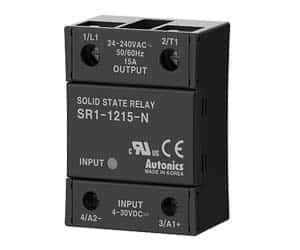

SR1-1215-N Autonics SR1-1215-N Single-phase Panel 24-240VAC~ (50/60Hz) 15A Approx. 111g
SRC1-1215-N Autonics SRC1-1215-N Single-phase Panel 24-240VAC~ (50/60Hz) 15A Approx. 119g

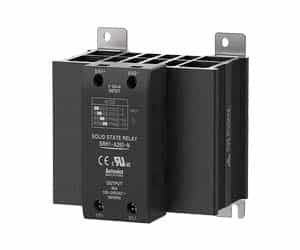

SRH1-A260-N Autonics SRH1-A260-N Single-phase Panel, DIN rail 100-240VAC~ (50/60Hz) 60A Approx. 760g
SRS1-B1202-2 Autonics SRS1-B1202-2 Single-phase – 90-240VAC~ (50/60Hz) 2A Approx. 400g

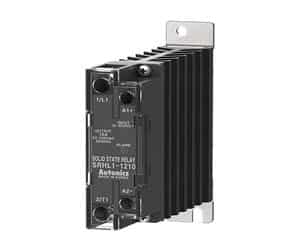

SRHL1-1210 Autonics SRHL1-1210 Single-phase Panel, DIN rail 24-240VAC~ 10A Approx. 270g

Frequently Asked Questions

What is the principle of SSR?

SSR stands for Server-Side Rendering. It’s a method used in web development. Here’s how it works:

When you request a webpage, the server prepares the content. It sends a fully formed page to your browser. This differs from Client-Side Rendering (CSR).

In CSR, the browser builds the page. It uses JavaScript to load content. SSR helps with faster initial page loads.

To sum up, SSR means the server gives a complete page. It makes websites appear quickly and smoothly.

What is the voltage of SSR relay?

SSR stands for Solid State Relay. It’s a type of electronic switch. SSRs don’t have moving parts like traditional relays.

The voltage of an SSR can vary. Different SSRs handle different voltage levels. Always check the relay’s specifications.

In short, SSR relays come in various voltages. It’s essential to choose the right one for your needs.

Is SSR output AC or DC?

SSR stands for Solid State Relay. It’s a device that controls electric power.

SSRs can handle both AC and DC outputs. The type of output depends on the SSR’s design.

In conclusion, SSRs can give either AC or DC. Always check the relay’s type before using it.

If you need more details about our Autonics Solid State Relay feel free to Share your Thoughts
