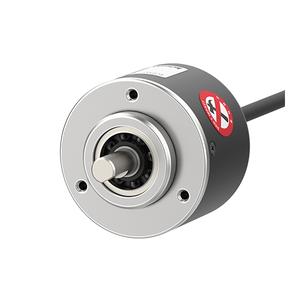

Autonics E50S8-100-3-T-24: Totem Pole Output
The technical specifications for the Autonics E50S8-100-3-T-24 Totem Pole Output:
- Shaft outer diameter: Ø8mm
- Max. response frequency: 300kHz
- Max. allowable revolution: 5000rpm
- Starting torque: Max. 70gf.cm
- Resolution: 100P/R
- Control output: Totem pole
- Power supply: 12-24VDC
- Connection type: Axial cable type
- Protection structure: IP50
Autonics E50S8-100-3-T-24 Totem Pole Output Technical Specification:
| Type of Encoder | Diameter Ø50mm shaft type of incremental rotary encoder |
| Shaft outer diameter | Ø8mm |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Totem pole output | ● [Low] – Load current: Max. 30mA, Residual voltage: MAax. 0.4VDCᜡ ● [High] – Load current : Max. 10mA, Output voltage (power voltage 5VDCᜡ): Min. (power voltage-2.0)VDCᜡ, Output voltage (power voltage 12-24VDCᜡ): Min. (power voltage-3.0)VDCᜡ |
| Response time (rise/fall) Totem pole output | Max. 1㎲ (cable length: 2m, I sink=20mA) |
| Current consumption | Max. 80mA (disconnection of the load), Line driver output: Max. 50mA (disconnection of the load) |
| Insulation resistance | Over. 100MΩ (at 500VDC megger between all terminals and case) |
| Dielectric strength | 750VAC 50/60Hz for 1 minute (between all terminals and case) |
| Power supply | 12-24VDC ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Protection structure | IP50 (IEC standard) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Max. response frequency | 300kHz |
| Vibration | 1.5mm amplitude at a frequency of 10 to 55Hz in each X, Y, and Z direction for 2 hours |
| Shock | Approx. Max. 75G |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 70gf.cm(max. 0.00686N.m) |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 275g |
Are you searching for the Autonics E50S8-100-3-T-24 Totem Pole Output? This encoder features an 8mm shaft diameter, provides a resolution of 100P/R, is designed for a maximum response frequency of 300kHz, and can handle up to 5000rpm, with a starting torque of max. 70gf.cm, and operates on a 12-24VDC power supply. The encoder has an axial cable connection and is IP50-protected. IndMALL Automation ensures the best prices for this Autonics Rotary Encoder.
