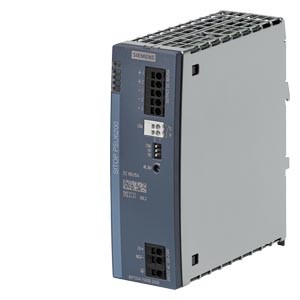

Siemens 6EP3344-7SB00-3AX0 Power Supplies
Siemens 6EP3344-7SB00-3AX0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3344-7SB00-3AX0 |
Siemens 6EP3344-7SB00-3AX0 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | 1-phase AC or DC |
| minimum rated value | 120 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| supply voltage at DC | 110 ... 240 V |
| input voltage at DC | 85 ... 275 V |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| number of outputs | 1 |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface |
| rated value | 5:00 AM |
| rated range | 0 ... 5 A; 6 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 240 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | push-in terminals |
| width × height × depth of the enclosure | 45 × 135 × 125 mm |
| installation width × mounting height | 45 mm × 225 mm |
| Top | 45 mm |
| Bottom | 45 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.9 kg |
