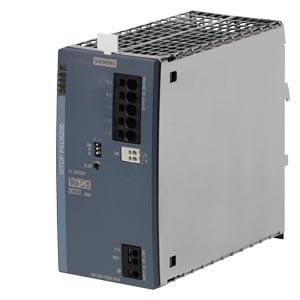

Siemens 6EP3336-7SB00-3AX0 Power Supplies
Siemens 6EP3336-7SB00-3AX0 Power Supply delivers 24V DC output, 20A current, and 480W power for industrial automation systems.
The Siemens Power Supplies unit supports 95.5% efficiency, DIN rail mounting, push-in terminals, adjustable output voltage, and wide-range AC/DC input operation. The 6EP3336-7SB00-3AX0 belongs to the Siemens SITOP PSU6200 series used in industrial control applications.
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3336-7SB00-3AX0 |
Siemens 6EP3336-7SB00-3AX0 Power Supplies – Technical Specifications
| Specification | Value |
|---|---|
| Type of the power supply network | 1-phase AC or DC |
| minimum rated value | 120 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| supply voltage at DC | 110 ... 240 V |
| input voltage at DC | 85 ... 275 V |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| number of outputs | 1 |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface |
| rated value | 20 A |
| rated range | 0 ... 20 A; 24 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 480 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | push-in terminals |
| width × height × depth of the enclosure | 70 × 135 × 155 mm |
| installation width × mounting height | 70 mm × 225 mm |
| Top | 45 mm |
| Bottom | 45 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 1.5 kg |
Siemens 6EP3336-7SB00-3AX0 Power Supply is part of the Siemens SITOP PSU6200 series designed for industrial automation and machine control systems. The unit provides 24V DC output with 20A output current and a 480W power rating for stable industrial power distribution. Siemens 6EP3336 7SB00 3AX0 Power Supply supports 120V to 230V AC input and 110V to 240V DC input operation for flexible installation requirements. The power supply also includes push-in terminals and adjustable output voltage configuration for control panel applications.
The Siemens SITOP PSU6200 power supply is commonly used in conveyors, packaging equipment, assembly systems, process automation, and industrial production lines. Stable 24V DC output helps PLCs, relays, sensors, drives, and HMI systems operate continuously during factory operations. Push-in terminal connections simplify installation while DIN rail mounting supports organized panel integration for industrial automation environments requiring reliable electrical power distribution.
Siemens 6EP3336-7SB00-3AX0 Power Supply combines 95.5% efficiency, 480W output power, and DIN rail mounting for industrial automation systems. Siemens power supply products are widely used across manufacturing industries where stable DC output and continuous operation are important for machine reliability. The 6EP3336-7SB00-3AX0 is suitable for industrial control panels, automation cabinets, and electrical systems requiring dependable long-term power supply performance.
