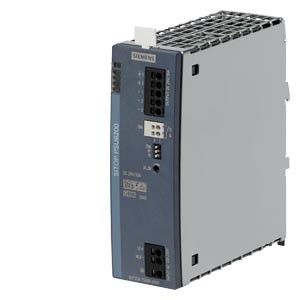

Siemens 6EP3334-7SB00-3AX0 Power Supplies
Siemens 6EP3334-7SB00-3AX0 Power Supply delivers 24V DC output, 10A current, and 240W power for industrial automation systems.
The Siemens Power Supplies unit supports 120V to 230V AC input, DIN rail mounting, modular snap-on installation, integrated diagnostics interface, and wide-range DC input operation. The 6EP3334-7SB00-3AX0 belongs to the Siemens SITOP PSU6200 series designed for industrial control applications.
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3334-7SB00-3AX0 |
Siemens 6EP3334-7SB00-3AX0 Power Supplies – Technical Specifications
| Specification | Value |
|---|---|
| Type of the power supply network | 1-phase AC or DC |
| minimum rated value | 120 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| supply voltage at DC | 110 ... 240 V |
| input voltage at DC | 85 ... 275 V |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| number of outputs | 1 |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface |
| rated value | 10:00 AM |
| rated range | 0 ... 10 A; 12 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 240 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | push-in terminals |
| width × height × depth of the enclosure | 45 × 135 × 125 mm |
| installation width × mounting height | 45 mm × 225 mm |
| Top | 45 mm |
| Bottom | 45 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.9 kg |
