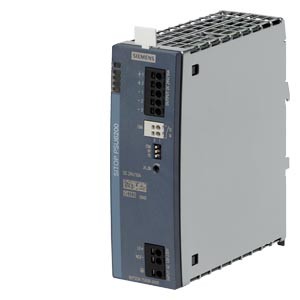

Siemens 6EP3334-7SC00-3AX0 Power Supplies
Siemens 6EP3334-7SC00-3AX0 Power Supply provides 24V DC output, 10A current, and 240W power for industrial automation systems.
The Siemens Power Supplies unit supports 120V to 240V AC/DC input, DIN rail mounting, push-in spring clamp terminals, integrated diagnostics interface, and rugged industrial operation. The 6EP3334-7SC00-3AX0 belongs to the Siemens SITOP PSU6200 series designed for hazardous industrial environments.
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3334-7SC00-3AX0 |
Siemens 6EP3334-7SC00-3AX0 Power Supplies – Technical Specifications
| Specification | Value |
|---|---|
| Type of the power supply network | 1-phase AC or DC |
| minimum rated value | 120 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| supply voltage at DC | 110 ... 240 V |
| input voltage at DC | 85 ... 275 V |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| number of outputs | 1 |
| type of signal at output | Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface |
| rated value | 10:00 AM |
| rated range | 0 ... 10 A; 12 A up to +45°C; +60 ... +70 °C: Derating 3%/K |
| supplied active power typical | 240 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | push-in terminals |
| width × height × depth of the enclosure | 45 × 135 × 125 mm |
| installation width × mounting height | 45 mm × 225 mm |
| Top | 45 mm |
| Bottom | 45 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.9 kg |
Siemens 6EP3334-7SC00-3AX0 Power Supply is part of the Siemens SITOP PSU6200 series used in industrial automation and machine control systems. The unit delivers 24V DC output with 10A output current and a 240W power rating for stable power distribution in automation panels. Siemens 6EP3334 7SC00 3AX0 Power Supply supports single-phase 120V to 240V AC input and 110V to 240V DC auto-ranging operation. The slim 45mm DIN rail design and integrated diagnostics interface support reliable industrial installation and system monitoring.
The Siemens SITOP PSU6200 power supply is commonly installed in conveyors, packaging equipment, assembly systems, automation cabinets, and industrial production lines. Stable output voltage helps PLCs, relays, sensors, and HMI systems operate continuously during factory operations. Push-in spring clamp terminals support vibration-resistant wiring while the coated circuit board construction helps maintain operation in industrial environments, including explosion-risk areas and demanding temperature conditions.
Siemens 6EP3334-7SC00-3AX0 Power Supply combines 24V DC stabilized output, 240W power output, and DIN rail mounting for industrial automation applications. Siemens power supply systems are widely used across manufacturing and process control industries requiring dependable electrical performance and long-term operational stability. The 6EP3334-7SC00-3AX0 is suitable for industrial control systems where stable DC power, rugged construction, and reliable diagnostics monitoring are important for production continuity.
